Furman P-3600 AR G

The Furman P-3600 AR G is a powerful, 3RU voltage regulator and power conditioner designed for A/V professionals who demand consistent, clean power anywhere in the world. Capable of delivering stable 120V AC output from a wide input range (88V-133V or 170V-265V), it ensures reliable performance even in locations with fluctuating or non-standard voltages. Whether on tour or in international installations, this unit offers the ultimate in power protection and management.

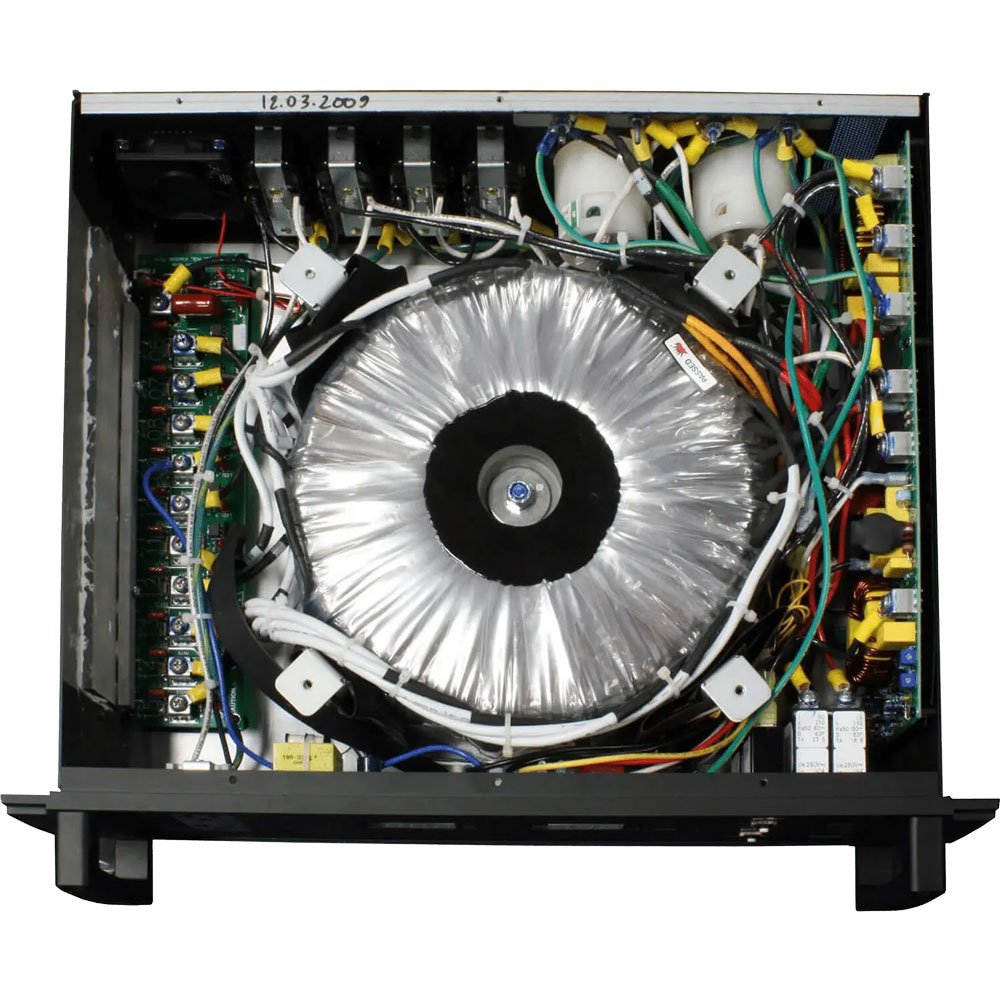

Built around True RMS Voltage Regulation Technology, the P-3600 AR G utilizes an ultra-low-noise toroidal isolation transformer, high-current switching TRIACs, and a microprocessor-controlled design. This provides precise voltage correction while eliminating spikes, surges, and AC line noise. With Furman's exclusive SMP, LiFT, and EVS technologies, it delivers industry-leading surge suppression, advanced AC line filtration, and extreme voltage shutdown protection.

• Worldwide Voltage Regulation: Converts global input voltages to a stable 120V output, ideal for international touring and A/V setups.

• Reliable Surge Protection: Uses Furman's SMP technology for top-tier protection against spikes and surges.

• Clean Power for Clarity: LiFT filtration ensures low-noise AC power for enhanced audio and video performance.

• Automatic Voltage Monitoring: EVS circuitry detects unsafe voltage levels and shuts down to protect connected gear.

• High Power Capacity: Supports up to 30 amps with heavy-duty inrush protection and one 30A and eight 20A rear outlets, plus two 20A front outlets.

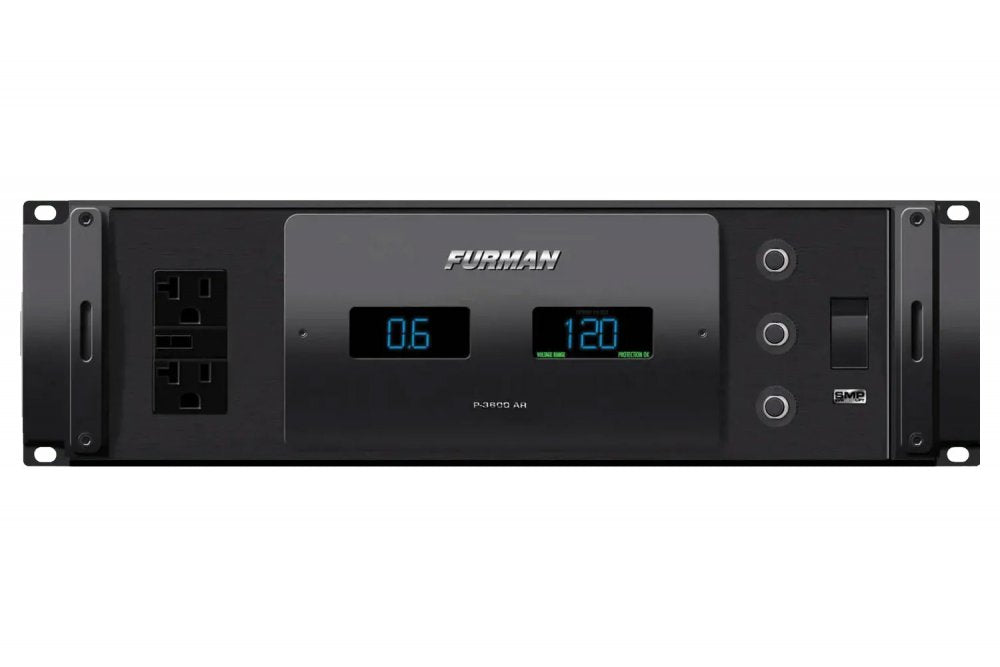

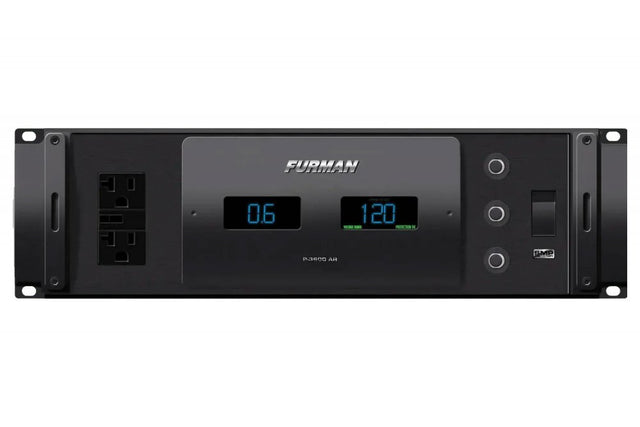

• Visual Monitoring Tools: Front panel LED voltmeter and ammeter clearly show incoming voltage and current draw.

• Easy Rack Integration: 3RU height with included rack ears for secure installation in standard racks.

• Global Input Range Support: Works with both 100-127V and 208-240V sources; ideal for worldwide use.

• Built for Demanding Use: Rugged 98 lb construction and twistlock power inlet for dependable performance in professional environments.

• Diagnostic Indicators: LEDs warn of abnormal voltage or compromised protection status.

GENERAL SPECIFICATIONS:

• Product Name: P-3600 AR G

• Product Type: Global voltage regulator and power conditioner

• Series: Prestige Series

• Line Voltage Output: 120 Volts

• Input Voltage Range: 88 to 133 VAC (Low), 170 to 265 VAC (High)

• Dimensions: 19 in W x 14.25 in D x 5.25 in H

• Rack Units: 3RU

• Weight: 98 lbs

• UPC: 654061028215

• Compliance: cTUVus

ELECTRICAL SPECIFICATIONS:

• Maximum Current Rating: 30 Amps

• Input Connection: L-14 male twistlock inlet (connector included)

• Total Outlets: 11

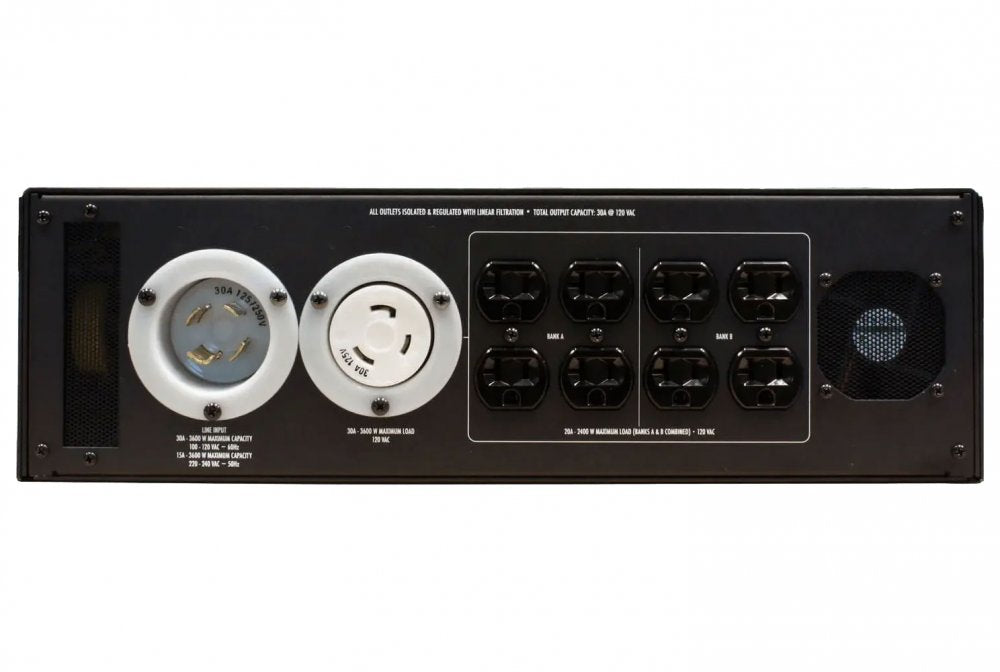

• Rear Panel Outlets: 8 x 20 Amp, 1 x 30 Amp

• Front Panel Outlets: 2 x 20 Amp convenience outlets

• AC Protection Technology: Global True RMS Voltage Regulation

• AC Protection Technology: Series Multi-Stage Protection (SMP)

• AC Protection Technology: Extreme Voltage Shutdown (EVS)

• AC Protection Technology: Non-sacrificial protection with zero ground contamination

• Over-Voltage Shutoff: 145 VAC at 120V input

• Over-Voltage Shutoff: 275 VAC at 240V input

• Initial Clamping Level: 191 Volts peak at 3000 Amps

• Maximum Surge Current: 6500 Amps

• Response Time: 1 nanosecond

FILTRATION SPECIFICATIONS:

• Filtration Technology: LiFT

• Filtration Rating: 10 dB at 10 kHz, 40 dB at 100 kHz, 55 dB at 500 kHz

INDICATORS AND CONTROL:

• Front Panel Switch: On/Off

• LED Voltmeter: Displays incoming line voltage

• LED Ammeter: Displays output current draw

• Diagnostic LEDs: Show protection status and voltage irregularities

• Outlet Bank Reset Buttons: Yes

FEATURES AND BUILD:

• Power Regulation: True RMS technology with autoformer and micro-processing

• Transformer: Ultra low-noise toroidal isolation

• Mounting: Rack mountable (rack ears included)

• USB Charging: Not available

• Low Voltage Trigger: Not available

• Front Media Light: Not included
