Studio Technologies Model 201

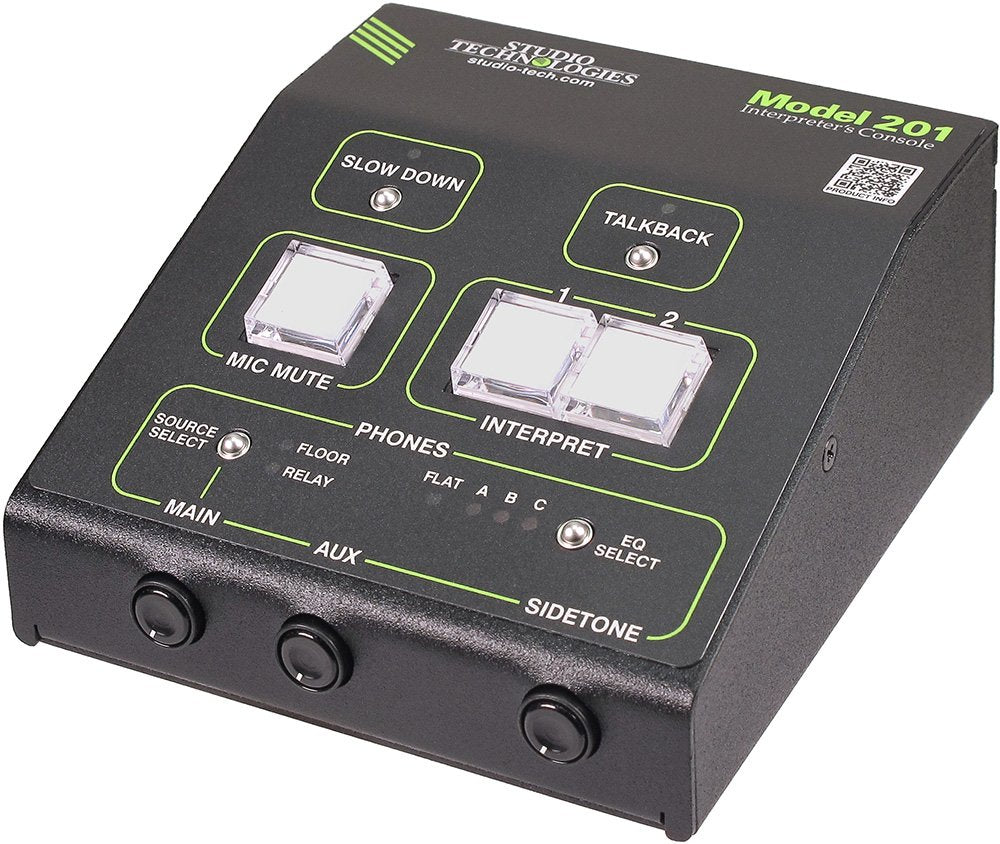

The Model 201 Interpreter's Console offers a comprehensive solution tailored for applications requiring simultaneous language interpretation by specialized personnel. Compatible with single or multi-language scenarios, this Dante audio-over-Ethernet-enabled unit boasts advanced features not commonly found in standard interpretation equipment. Equipped to meet the needs of both local and remote deployments, the Model 201 ensures successful implementation across various settings.

• Creates complete interpreter position

• Dante audio-over-Ethernet technology

• Supports 5-pin XLR and 3.5 mm TRRS headsets

• Two interpret audio channels with feedthrough audio

• Talkback function

• Slow Down and Hot Mic functions

• Stores and replays two confirmation messages

• Excellent audio quality

• Uses STcontroller for configuration

• Power-over-Ethernet (PoE) powered

APPLICATIONS:

• Dante-based simultaneous interpretation

POWER SOURCE:

• Power-over-Ethernet (PoE), class 1 (very low power, ≤3.84 watts), per IEEE 802.3af

GENERAL AUDIO:

• Internal Digital Audio Processing: 32-bit, fixed

• Nominal Digital Input and Output Level: "20 dBFS

NETWORK AUDIO TECHNOLOGY:

• Type: Dante audio-over-Ethernet

• AES67-2018 Support: yes

• Dante Domain Manager (DDM) Support: yes

• Bit Depth: 16, 24, or 32

• Sample Rate: 48 kHz

• Nominal Level: "20 dBFS

• Number of Transmitter (Output) Channels: 4

• Number of Receiver (Input) Channels: 4

• Dante Audio Flows: 4; 2 transmitter, 2 receiver

NETWORK INTERFACE:

• Type: 100BASE-TX, twisted-pair Ethernet with Power-over-Ethernet (PoE)

• Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s GigE Ethernet not supported)

• Compatibility " Headset A: single or dual-ear broadcast- or intercom-style with dynamic or electret (low-voltage DC-powered) microphone: pin 1 mic common; pin 2 mic; pin 3 phones common; pin 4 phones left; pin 5 phones right

• Compatibility " Headset B: CTIA™/AHJ configuration (typically uses electret powered mic): tip phones left; ring 1 phones right; ring 2 common; sleeve mic

MICROPHONE INPUT:

• Compatibility: dynamic or electret (low-voltage DC-powered)

• Type: unbalanced

• Electret Microphone Power: 3.3 volts DC via 2 k resistor, selected on/off

• Impedance: 1 k ohms, nominal, microphone power off; 680 ohms, nominal, microphone power on

• Gain: 24, 30, 36, 42, 48 dB, selectable

• Frequency Response: "3 dB at 40 Hz, "1 dB at 16 kHz

• Distortion (THD+N): 0.022%, measured at "20 dBFS, 22 Hz to 22 kHz bandwidth, 24 dB of gain

• Noise Floor: "95 dBFS, A-weighted, 24 dB of gain

• Dynamic Range: >76 dB, A-weighted, measured at 24 dB of gain

COMPRESSOR:

• Threshold: 3 dB above nominal Dante output level ("17 dBFS), ±1 dB

• Slope: 2:1

• Status LED: compressor active

CONFIRMATION MESSAGE AUDIO:

• Number of Channels: 2, field updatable using USB flash drive

• Source Type: 16-bit monophonic, 48 kHz sample rate, WAV (.wav) files, stored in non-volatile memory

• Level: "20 dBFS nominal

• Duration: up to 40 seconds per WAV file

• Distortion: <0.0001%

• Frequency Response: 20 Hz to 20 kHz, +0/"0.7 dB

FEEDTHROUGH CAPABILITY:

• Number of Channels: 2, individually configurable

• Sources: 4 Dante receiver (input) channels (Floor, Relay, Aux 1, Aux 2), configurable

• Frequency Response: 20 Hz to 20 kHz, +0/"0.7 dB

• Audio Attenuation (Dim): 0, 5, 10, 15, 20 dB, Full Mute, configurable

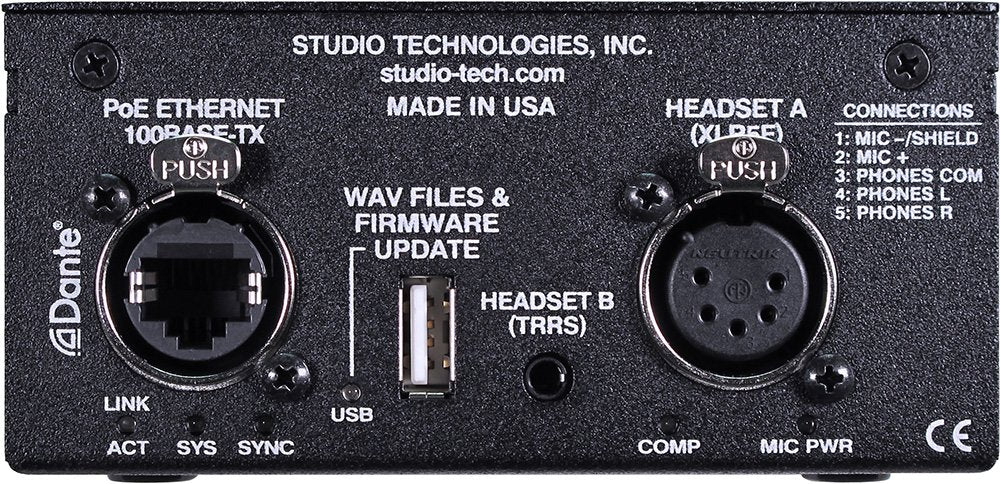

CONNECTORS:

• Headset A: 5-pin female XLR

• Headset B: 4-conductor (TRRS) 3.5 mm jack, per Japanese standard JEITA/EIAJ RC-5325A

• Ethernet: Neutrik NE8FBH etherCON RJ45 jack (compatible with etherCON CAT5 plug)

• USB: type A receptacle (used for updating main firmware and WAV audio files)

CONFIGURATION:

• Studio Technologies' STcontroller personal computer application

SOFTWARE UPDATING:

• USB flash drive used for updating main firmware and WAV audio files; Dante Controller's Dante Updater application used for updating Dante interface firmware

ENVIRONMENTAL:

• Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)

• Storage Temperature: "40 to 70 degrees C ("40 to 158 degrees F)

• Humidity: 0 to 95%, non-condensing

• Altitude: not characterized

DIMENSIONS:

• 4.3 inches wide (10.9 cm)

• 2.1 inches high (5.4 cm)

• 5.1 inches deep (13.0 cm)

DEPLOYMENT:

• intended for tabletop applications

WEIGHT:

• 1.2 pounds (055 kg)
