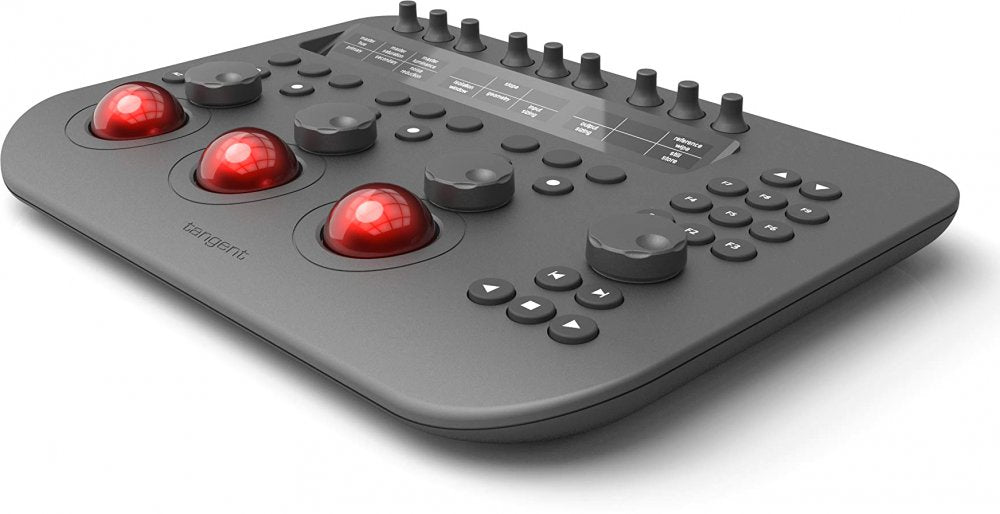

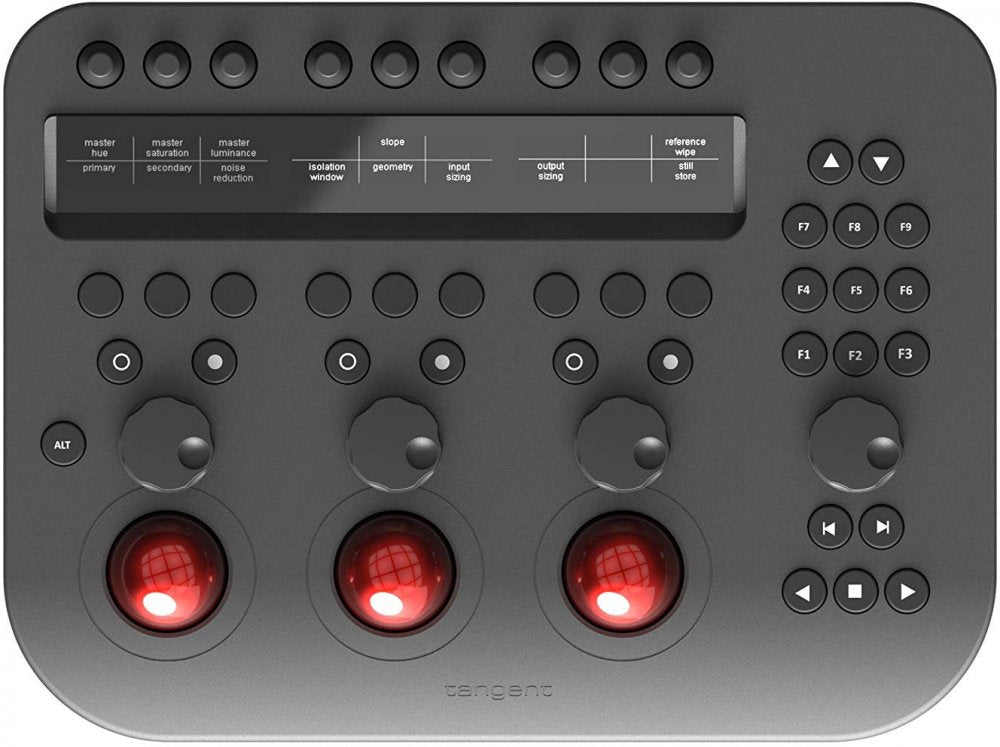

Tangent Wave2 panel

The Wave2 offers a comprehensive range of controls on a compact panel for a keen price.

Precise and portable The Wave2 has been designed to offer maximum functionality for the minimum of desk space. This means it's equally at home on a desk or on-set. The panel features crisp, easy to read, ice-white OLED displays to label many of the controls which will be used to operate multiple functions. The trackerballs and knobs both use non-contact, high resolution optical pickups for responsiveness and long life. As all controls are designed to be context-sensitive you'll be able to keep your most needed controls at your fingertips. The Wave2 will increase your productivity, leaving you to get on with what you're best at doing - being creative!

Widely supported Most of our software partners have released versions of their applications which support the Wave2. The majority of these applications also support the Tangent Mapper* which means that you can even customise your control layouts.

USB for communication and power USB plug-and play (HID device therefore no drivers are required) USB powered (so no need for external power supply) A single USB cable

• Compact form with durable finish

• High resolution, long-life trackerballs with optical pickups

• High resolution, long-life knobs with optical pickups

• Knobs have a built-in "press to reset" switch

• Displays to indicate mode and function of many controls

USB FOR COMMUNICATION AND POWER:

• USB plug-and play (HID device therefore no drivers are required)

• USB powered (so no need for external power supply)

• A single USB cable

CONTROLS:

• 3x Programmable trackerballs with Master dials

• Individual reset buttons for ball and dial

• 2x Additional buttons for SHIFT / ALT etc.

• 9x Programmable buttons

• 9x Programmable knobs with integral push button resets

• 3x Displays to label programmable knobs and buttons

• 9x Programmable function buttons

• Standard transport controls with jog dial
