Tascam Model 24

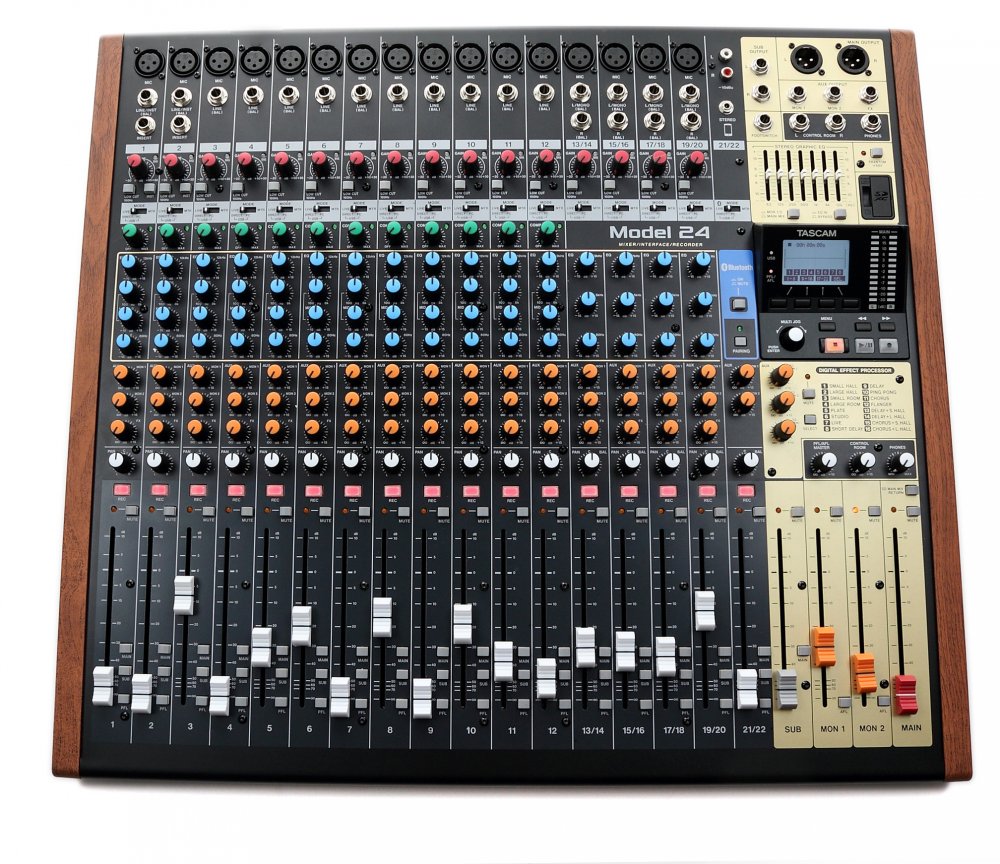

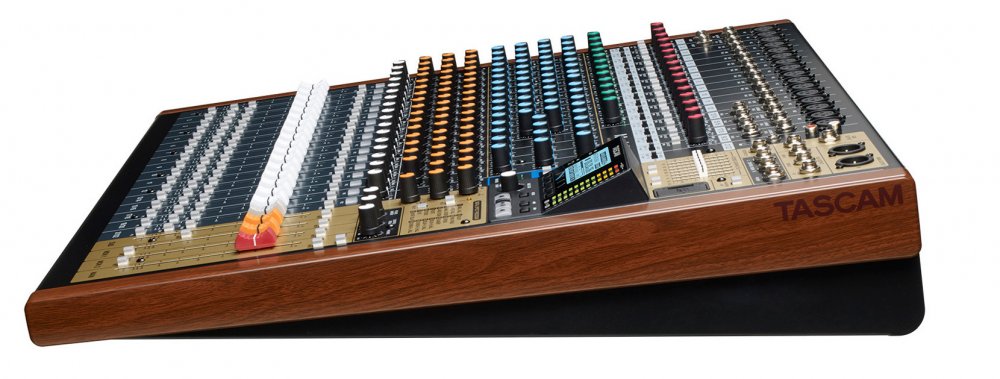

The TASCAM Model 24 was developed for easy operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need for menu diving, and all input/output connections are on the surface for quick and easy access.

The Model 24 is truly a modern take on a classic design.

TASCAM's Revolutionary Recording Technology Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it's time to record the TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to punch in/out eight tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for mixdown.

Flexible Connectivity In addition to the studio quality mic preamps and powerful EQ and routing options, the Model 24 features a dedicated stereo channel 1/8", dual RCA and Bluetooth™ connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the TASCAM Model 24 can also act as a powerful audio interface, and connects directly to your PC or Mac for easy integration with your DAW of choice.

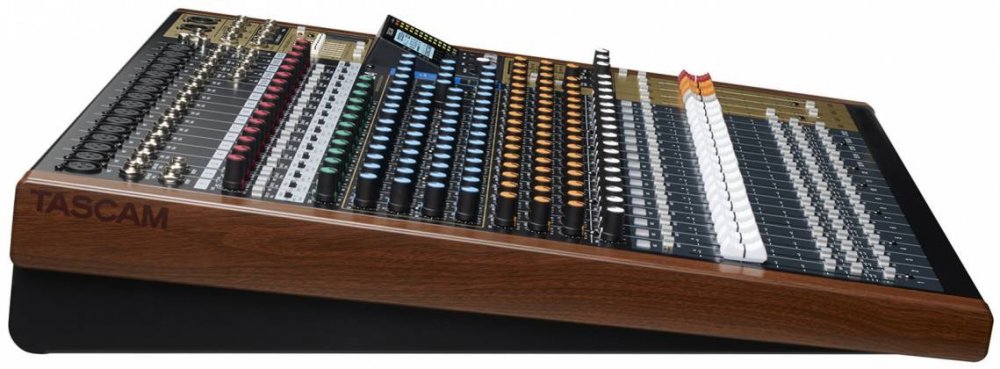

Durability and Reliability Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM's legendary reliability will keep the music going.

• All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface

• WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards

• Built-in USB Audio Interface to send/receive audio data to/from DAW

• 22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)

• 16 TASCAM Microphone Preamps

• Input Mode switch on every input channel

• TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)

• Preamp Gain Controller with Overload indicator (Channels 1 to 12)

• 3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)

• 100kHz Low-cut Filter (Channels 1 to 12)

• 7-band Graphic EQ

• 16 Pre-set Effects

• 100mm Long-throw Faders for precise adjustment

• Mute, Main/Sub, PLF switches on every input channel

• Bluetooth input supporting both AAC and SBC codecs

• SUB Outputs via XLR Balanced and RCA Unbalanced connectors

• LINE Inputs via RCA Pin and " Stereo Mini jacks

• 3 AUX Outputs (Monitor 1, Monitor 2, FX)

• 1 Stereo Output for Control Room

• Phantom Power (+48V)

• ¼" Stereo Headphone Output

• Backlit buttons for key operations such as REC and Play

• Multi Jog-dial for quick menu operation

• 12-segment LED Output Level Meters

RECORDING SECTION:

Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required.

File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT

Recording File Format: WAV(BWF)

Playback Format: WAV(BWF)

Sampling Frequency: 44.1k / 48k Hz

Bit Depth: 16 / 24-bit

Recordable Channel: Max. 24 channels (22ch + 2 stereo mix)

AUDIO INPUTS:

MIC IN CH1 to 12, 13/14 to 19/20

Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD)

Maximum Input Level: +10dBu

Nominal Input Level: -8dBu

Minimum Input Level: -58dBu

Gain Adjustable Range: 0 to 50dB

Input Impedance: 1.8k

Phantom Power supply: +48V

LINE IN CH1 to 20

Connector: 1/4" (6.3mm) TRS Phone jack (Balanced)

Maximum Input Level: +22dBu

Nominal Input Level: +4dBu

Gain Adjustable Range: -10 to +40dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20

Input Impedance: 22k

INSERT CH 1 and 2

Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)

Return (Ring)

Maximum Input Level: +18dBu

Nominal Input Level: 0dBu

Input Impedance: 10k

Send (Tip)

Maximum Output Level: +18dBu

Nominal Output Level: 0dBu

Output Impedance: 100

RCA INPUT

Connector: RCA Pin jack (Unbalanced)

Maximum Input Level: +8dBV

Nominal Input Level: -10dBV

Input Impedance: 10k

STEREO INPUT

Connector: 1/8" (3.5mm) Stereo Mini jack (Unbalanced)

Maximum Input Level: +8dBV

Nominal Input Level : -10dBV

Input Impedance: 10k

OUTPUTS

MAIN OUTPUT

Connector>: XLR 3-32 (1: GND, 2: HOT, 3: COLD)

Maximum Output Level: +22dBu

Nominal Output Level: +4dBu

Output Impedance: 100

SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT

Connector>: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND)

Maximum Output Level: +16dBu

Nominal Output Level: -2dBu

Output Impedance: 100

PHONES OUT

Connector: 1/4" (6.3mm) Stereo Phone jack

Output Level: 80mW + 80mW (32 loaded)

REMOTE Compatible with TASCAM RC-1F Foot Switch

Connector: 1/4" (6.3mm) TS Phone jack

USB Audio: for connection with PC

Sampling Rate: 44.1k / 48k Hz

Bit Depth: 16 / 24-bit

Maximum INPUT and OUTPUT: 24 Inputs / 22 Outputs

USB

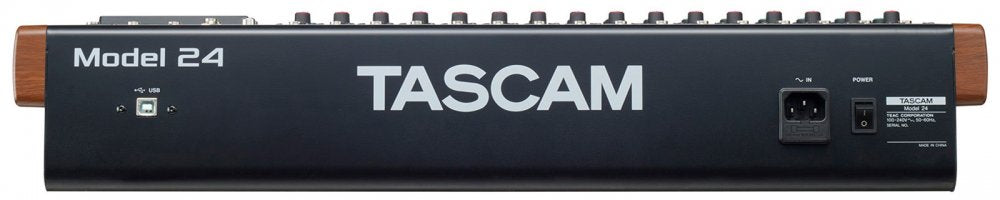

Connector: USB B type 4-pin

Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class

Bluetooth

Output Class: Class 2 (Transmission range: approx. 33ft. / 10 m)

* Transmission range may vary, depending on surroundings.

Bluetooth version: 4.0

Supported Profile: A2DP, AVRCP 1.0

Supported A2DP Codecs: SBC, AAC

A2DP Content Protection: SCMS-T

Channel EQ

Low-Cut: 100Hz, -18dB / Octave

Hi-Shelving: +15dB / -15dB, Cut off frequency: 12kHz

Mid: Peaking

(MONO): +15dB / -15dB, 100Hz to 8kHz Variable

(STEREO): +15dB / -15dB, Center frequency = 600Hz

MID Band Q Fix, 0.55

Low-Shelving: +15dB / -15dB, Cut off frequency = 80Hz

Graphic EQ

Band: 7-Band

Frequency: 125 / 250 / 500 / 1k / 2k / 4k / 8k Hz

Gain: +15dB / -15dB

FX

Type: 1: SMALL HALL / 2: LARGE HALL / 3: SMALL ROOM / 4: LARGE ROOM / 5: PLATE / 6: STUDIO / 7: LIVE / 8: SHORT DELAY/ 9: DELAY / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY + S.HALL / 14: DELAY + L.HALL / 15: CHORUS + S.HALL / 16: CHORUS + L.HALL

Power: AC 100 to 240V, 50/60Hz

Power Consumption: 52 W

Dimensions (WxHxD): 576 x 513 x 112.5 mm (including side panels, knobs and connectors)

540 x 503 x 112.5 mm (excluding side panels. including knobs and connectors)

including Side panels: 22.67" x 20.20" x 4.43" / 576 x 513 x 112.5 mm (including knobs and connectors)

excluding Side panels): 20.26" x 19.80" x 4.43" / 540 x 503 x 112.5 mm (including knobs and connectors)

Weight: 22.04 lbs. / 10 kg

Operating Temperature: 41 to 95F / 5 to 35C

Included Items: AC Cord, Owner's manual (incl. Warranty card)

Available Accessories: TASCAM RC-1F Footswitch

Audio Performance

Residual Output Noise -100dBu (MAIN OUT, MAIN fader: MIN)

Equivalent Input Noise -128dBu (Mono Input Channel, Rs: 150, GAIN knob: Max)

Total Harmonic Distortion 0.01% or less (MIC IN to MAIN OUT, Max input level, 1kHz, GAIN min.)

0.004% or less (MIC IN to MAIN OUT, +4dBu, 1kHz, GAIN min.)

Frequency Response 20Hz to 30kHz (+0.5/-1.0dB: Analog)

20Hz to 20kHz (+0.5/-1.0dB: Digital)

Crosstalk -80dB, channels/input and output (1kHz, PAN fully counter clockwise/fully clockwise)

Maximum Gain 74dB (MIC to MAIN OUT)

50dB (MIC to INSERT OUT)

74dB (MIC to SUB OUT)

79dB (MIC to CR OUT)

75dB (MIC to MONITOR OUT)

75dB (MIC to FX OUT)

24dB (USB/SD to MAIN OUT)

(EQ and-EQ flatten, PAN fully counter clockwise/fully clockwise)

Supported PC

Windows

Compatible Computers Windows-compatible computer with a USB2.0 port

CPU Dual core / 2GHz or faster

Memory 2GB or more

Driver USB Audio Class 2.0, Model 24 ASIO2.0, WDM (MME)

Screen Resolution 1280 x 800 Dots or more

Macintosh

Compatible Computers Apple Macintosh computer with a USB2.0 port

CPU Dual core / 2GHz or faster

Memory 2GB or more

Driver Core Audio

Screen Resolution 1280 x 800 Dots or more
