Tascam US-16X08

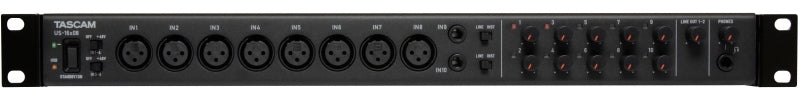

Eight Ultra-HDDA microphone preamps deliver the cleanest and quietest operation in their class while delivering up to 56dB of gain. An additional eight line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.

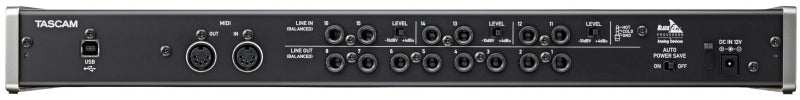

Built into the US-16x08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes. In addition to interface mode, the US-16x08 can be used stand alone as a standalone mic preamp. Mac and Windows drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like Apple's iPad. MIDI input and output are also available on the rear panel.

Whether using the ergonomically-designed angled desktop stand or mounting with the included rack ears, the US-16x08 includes analog I/O for almost any music recording application.

• The TASCAM US-16x08 captures 16 mic and line inputs to your computer with clear sound quality and advanced features to manage big sessions. ltra-HDDA (High Definition Discrete Architecture) mic preamps with 125dBu EIN

• Eight Ultra-HDDA mic pres with XLR connectors, eight TRS inputs

• Standalone mode for use as an independent mic preamp

• Up to 96kHz/24-bit recording

• Support for Windows and Macintosh

• USB 2.0 computer connection

• Connect with iPads and other iOS devices via Class Compliant drivers

• +48V phantom power available for all microphone inputs

• High-impedance inputs available

• 56 dB of preamp gain, ideal for dynamic or ribbon microphones

• Tough metal casing for durability

• Angled design provides excellent usability on a desktop

• Eight TRS outputs

• Standard TRS headphones output jack with 70mW/ch output power

• Separate controls for line and headphones output volumes

• MIDI input and output

• Low-latency monitoring via on-board DSP mixer

• DSP mixer with 4-band EQ and compression on each input channel

• Digital Patch bay allows outputs to be assigned freely

• Scenes can store DSP mixer settings (up to 10 scenes can be stored and named)

• USB class compliant 2.0 support

• Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band)

• RoHS certified

• Dedicated AC adapter included.

• Sampling frequency 44.1k/48k/88.2k/96kHz

• Quantization bit rate 16/24bit

ANALOG AUDIO INPUTS :

MIC IN (IN 1-8):

• Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED

• Input impedance: 2.4k ohms

• Nominal input level:

• GAIN: MAX:-68dBu (0.0003Vrms)

• GAIN: MIN:-12dBu (0.195Vrms)

• Maximum input level: +8dBu (1.947Vrms)

• Gain:56dB

INST IN (IN 9-10):

• Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED

• (When set to "INST" at LINE/INST switch)

• Input impedance: 1M ohms or more

Nominal input level

• GAIN:MAX:-57dBV (0.0014Vrms)

• GAIN:MIN:-12dBV (0.251Vrms)

• Maximum input level: +8dBV (0.2512Vrms)

• Gain:45dB

LINE IN (IN 9-10):

• Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED

• (When set to "LINE" at LINE/INST switch)

• Input impedance: 10k ohms

Nominal input level:

• GAIN:MAX:-41dBu (0.0069Vrms)

• GAIN:MIN:+4dBu (1.228Vrms)

• Maximum input level: +24dBu (12.182Vrms)

• Gain:45dB

LINE IN (IN 11-16):

• Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED

• (When set to "-10dBV" at LEVEL switch)

• Input impedance: 10k ohms or more

• Nominal input level: -10dBV (0.3162Vrms)

• Maximum input level: +10dBV (3.162Vrms)

LINE IN (IN 11-16):

• Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED

• (When set to "+4dBu" at LEVEL switch)

• Input impedance: 10k ohms

• Nominal input level: +4dBu (1.228Vrms)

• Maximum input level: +24dBu (12.182Vrms)

ANALOG AUDIO OUTPUTS:

LINE OUT (LINE OUT 1-8):

• Connector: 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED

• Output impedance:100ohms

• Nominal output level:+4dBu (1.228Vrms)

• Maximum output level:+24dBu (12.177Vrms)

PHONES:

• Connector: 6.3mm(1/4") stereo phone jack

• Maximum output level: 70mW+70mW or more (THD+N 0.1% or less, 32ohms loaded)

MIDI IN / OUT:

Connector: Din 5-pin

Format: Standard MIDI format

USB:

• Connector: USB B type 4-pin

• Format: USB2.0 HIGH SPEED mass storage class

• Power: Dedicated AC adapter (GPE248-120200-Z, included)

• Power consumption: 12W

• Dimensions: 52" W x2.32" H x8.62" D inch , 445mm W x59mm H x219mm D

Weight: 2.8kg / 6.11lb

Operating temperature: 5 to 35C

Accessories: Rack mount adapter, USB cable, User's manual, warranty card, dedicated AC adapter (GPE248-120200-Z)

AUDIO PERFORMANCE:

FREQUENCY RESPONSE:

LINE OUT(BALANCED):

• 44.1k/48kHz: 20Hz to 20kHz, +/-0.3dB(JEITA)

• 88.2k/96k Hz: 20Hz to 40kHz, +/-0.3dB(JEITA)

• THD: 0.008% or less

• S/N ratio: 100dB or more

• Crosstalk: 100dB or more

• EIN: -125dBu or less

COMPUTER SYSTEM REQUIREMENTS:

WINDOWS:

• OS: Windows 7 (32-bit SP1, 64-bit SP1), Windows 8.0 (32-bit, 64-bit), Windows 8.1 (32-bit, 64-bit)

• Compatible computers (Windows-compatible computer with a USB 2.0 port)

• CPU type/speed Dual core/2 GHz or faster

• Memory: 2GB or more

• DRIVER: ASIO2.0, WDM(MME)

MACINTOSH:

• OS OS X Mountain Lion(10.8), OS X Mavericks(10.9)

• Compatible computers (Apple Macintosh computer with a USB 2.0 port)

• CPU type/speed Dual core/2 GHz or faster

• Memory 2GB or more

• DRIVER Core Audio, Core MIDI

IOS:

• OS iOS 7
