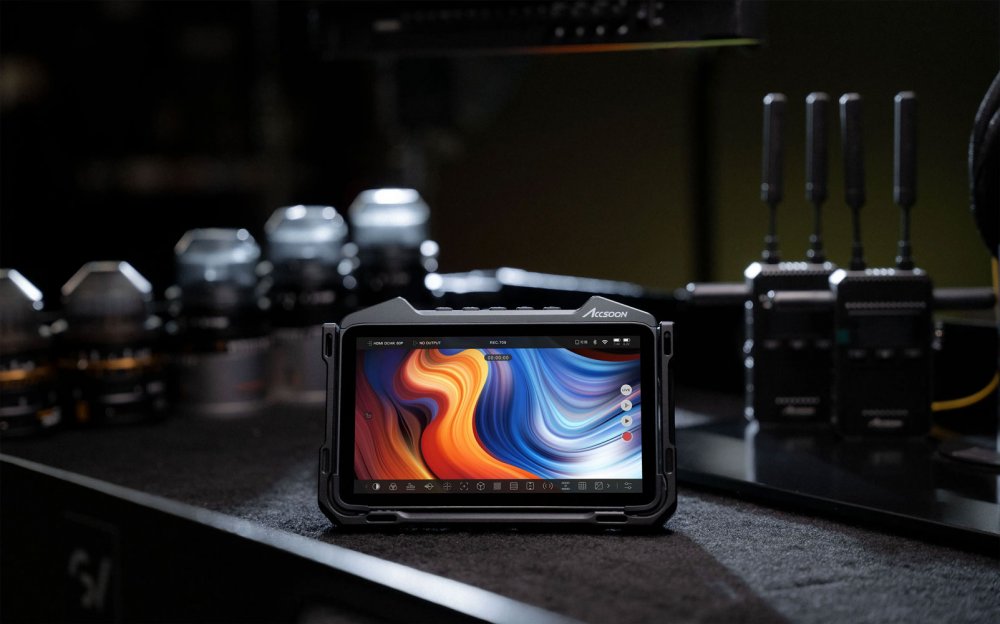

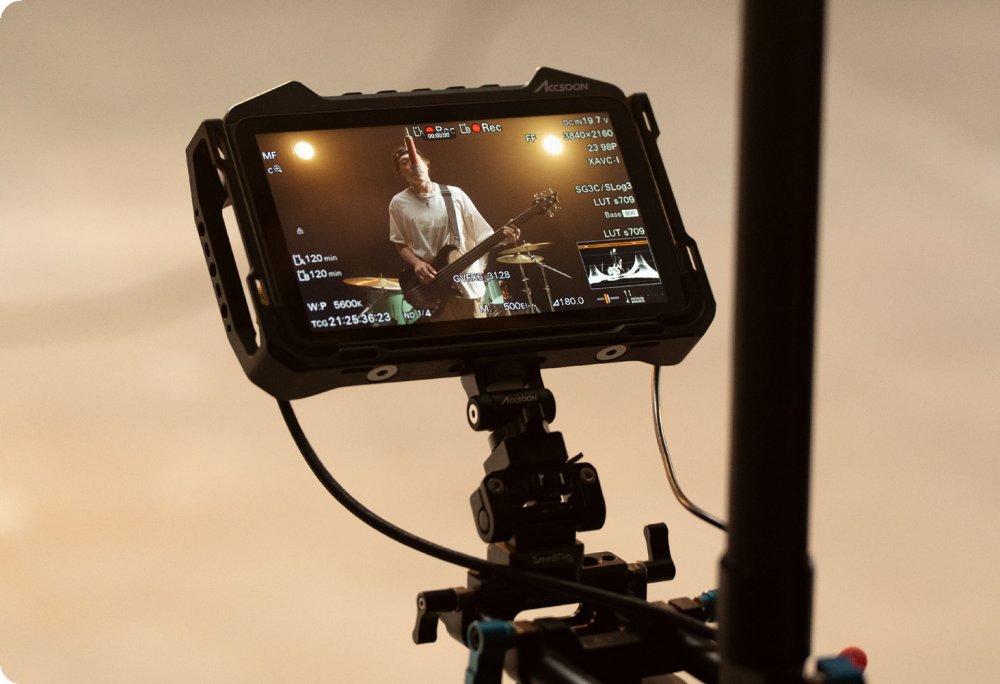

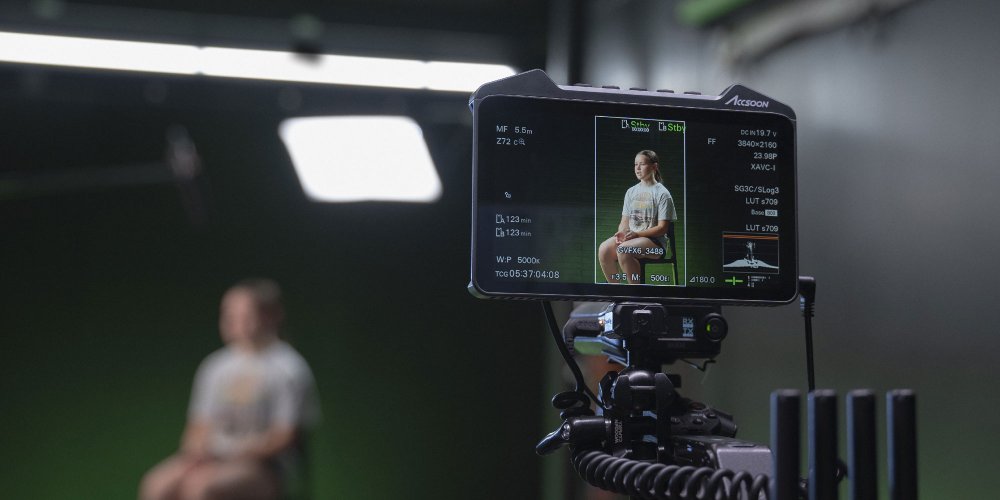

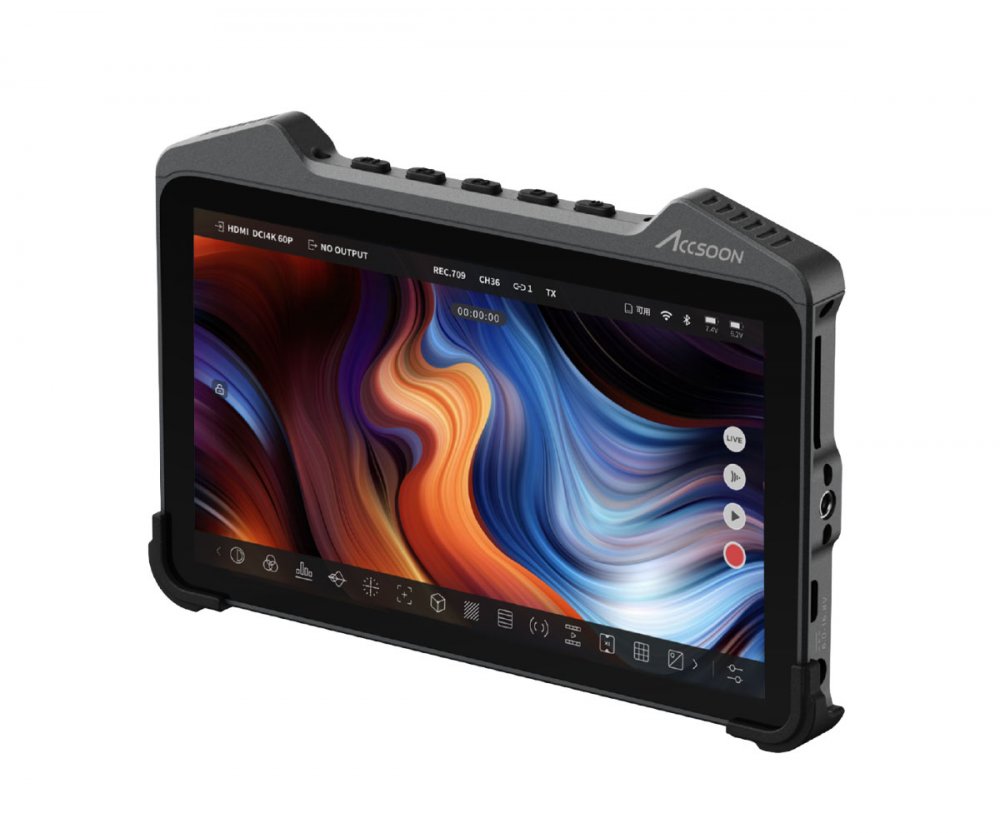

Accsoon Cineview M7

The CineView M7 redefines what a production monitor can be, combining a brilliant 7-inch cinema-grade display with advanced processing power and smart features to create a portable production center built for the modern filmmaker. With factory-calibrated color accuracy, high brightness for outdoor visibility, and support for real-time LUT application across HDMI, SDI, or wireless outputs, the M7 is engineered to deliver absolute precision and consistency on set.

Powered by 8K-capable processors and a flexible smart OS, the CineView M7 supports over 960 video format combinations, including 4K60 via HDMI and SDI/HDMI cross-conversion. Its robust aluminum alloy chassis houses a full suite of I/O ports, customizable LUT handling (1D and 3D), and seamless interaction via touchscreen or buttons. Whether used as a standalone monitor, a LUT box, or a recording hub with playback and sharing features, the M7 adapts to your workflow - from camera to post.

• Stunning 7" Color-Accurate Display: Delivers precise, factory-calibrated color with excellent visibility even in sunlight.

• Professional LUT Support: Real-time 1D/3D LUT box functionality for color grading and consistency across devices.

• Format Flexibility: Handles 961+ video format combinations including 4K60 HDMI input and SDI/HDMI cross-conversion.

• Smart Monitoring System: Powered by high-performance 8K processors and a modern OS for responsive, intelligent operation.

• Cinematic Color Workflow: Supports precise color mapping, on-set monitoring, and LUT burn-in for recorded footage.

• Fully Customizable Recording & Playback: Offers control over captured content for professional review and sharing.

• Robust Input/Output Options: Equipped with HDMI, SDI, USB-C, 3.5mm mic/headphone jacks, and Bluetooth headphone support.

• Versatile Power Choices: Compatible with NP-F batteries, USB-C PD input, and DC power sources.

• Premium Build: Lightweight aircraft-grade aluminum housing with both active and passive cooling.

• Compact and Portable: Offers a 7" cinema-grade screen in a body sized for 5" portability.

GENERAL SPECIFICATIONS:

• Screen size 7 inch LCD

• Resolution 1920 x 1080 pixels

• Pixel density 323 PPI

• Aspect ratio 16:9

• Brightness 1000 nits

• Contrast ratio 1000 to 1

• Viewing angle 176 degrees horizontal and vertical

• Backlight type Edge-Lit ultra-transparent LED

• Screen calibration Supported

COLOR AND LUTS:

• LUT support 1D and 3D Cube LUTs

• 1D LUT resolution up to 4096 points

• 3D LUT resolution up to 127 points

VIDEO INPUT:

• HDMI 2.0 input formats

• 4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

• 4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

• 1080p at 23.98 24 25 29.97 30 50 59.94 60 fps

• 1080i at 50 59.94 60 fps

• 720p at 50 59.94 60 fps

• 3G-SDI input formats

• 1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A and B

• 1080i at 50 59.94 60 fps

VIDEO OUTPUT:

• HDMI 2.0 output formats

• 4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

• 4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

• 1080p at 23.98 24 25 29.97 30 50 59.94 60 fps

• 1080i at 50 59.94 60 fps

• 720p at 50 59.94 60 fps

• 3G-SDI output formats

• 1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A

• 1080i at 50 59.94 60 fps

POWER AND CONNECTIVITY:

• DC input 6.0 to 16.8V 5.5mm x 2.1mm center positive

• USB-C power input PD3.0 9V 3A 12V 3A 15V 3A

• USB-C power output 5V 2A max

• Compatible battery types NP-F550 NP-F750 NP-F970

• Microphone input 3.5mm TRS

• Headphone output 3.5mm CTIA

• Audio sampling 16bit 48kHz

MECHANICAL AND ENVIRONMENTAL:

• Housing Aircraft-grade aluminium alloy

• Cooling system Active and passive

• Power consumption 12W to 28W

• Operating temperature -10 to 40 degrees Celsius

• Dimensions 182.2 x 120.7 x 31.5 mm

• Weight 476 g
