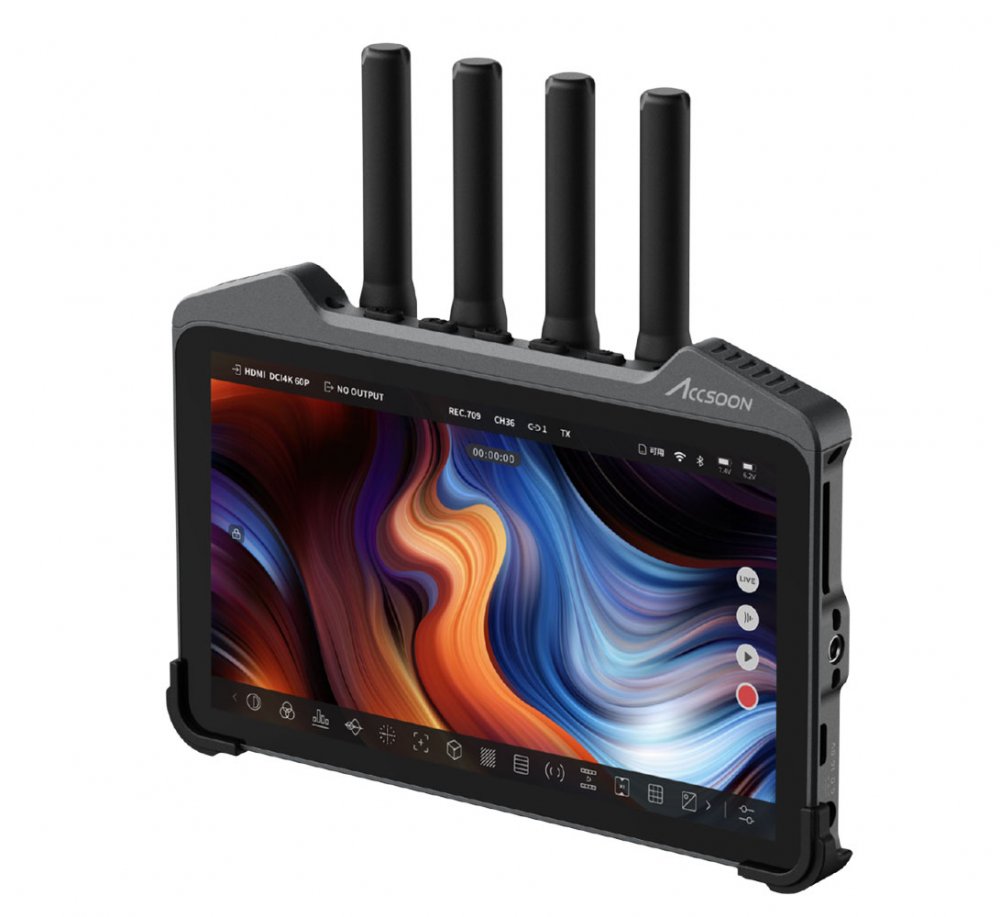

Accsoon Cineview M7 Pro

The CineView M7 Pro is the ultimate wireless production monitor, combining a professional-grade 7" display, 8K-capable processing, and integrated wireless transmission-all in a compact, rugged aluminum housing. Designed for high-end cinematography and on-set flexibility, it offers real-time monitoring, recording, and LUT application with unmatched color precision and ultra-low latency wireless transmission up to 350 meters.

Built to simplify complex workflows, the M7 Pro acts as a transmitter, receiver, and monitor in one, supporting Accsoon's patented Dual-Band wireless system for seamless connection to CineView TX/RX devices. With support for up to DCI 4K60 (HDMI), 961+ format combinations, and professional tools like waveforms, false color, and a powerful 3D LUT box, this monitor puts precise creative control at your fingertips-on any set, anywhere.

• All-in-One Wireless Monitoring: Combines wireless transmitter, receiver, and professional monitor in a single device.

• Integrated Long-Range Wireless: Supports wireless video up to DCI 4K60 using Accsoon's dual-band technology with up to 350m range and ultra-low 60ms latency.

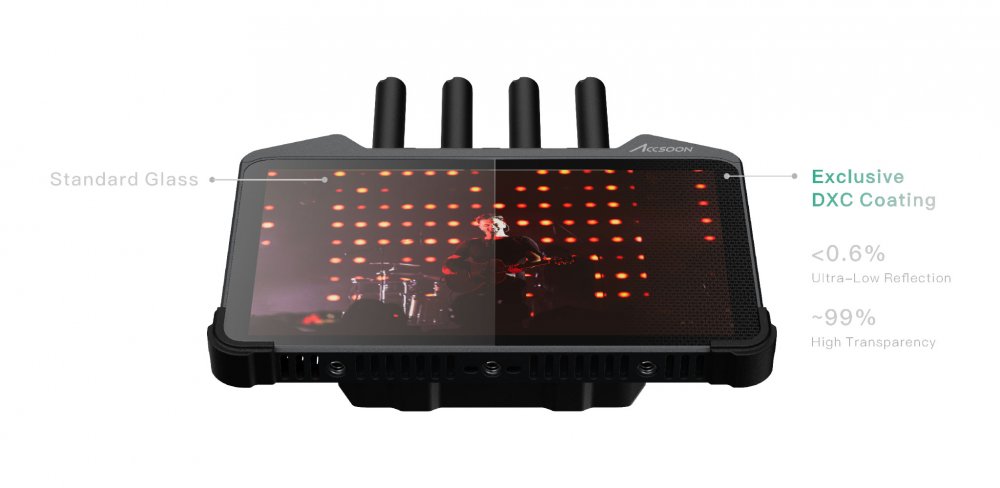

• Cinematic 7" Display: Color-accurate, fully laminated screen visible in direct sunlight with factory-calibrated precision.

• Advanced Color Workflow Tools: Includes real-time 3D LUT box, false color, waveform, and custom screen calibration.

• Smart Monitoring Platform: Powered by high-performance 8K processors and a smart OS for seamless operation.

• Flexible Format Support: Handles over 961 video format combinations, with SDI/HDMI cross-conversion and different frame rate outputs.

• Compact Yet Powerful: Cinema-grade display in a lightweight body with aerospace-grade aluminum build.

• Custom Recording & Playback Options: Offers flexible media workflow with recording, reviewing, and LUT burn-in features.

• Professional I/O & Power Options: Includes HDMI/SDI in/out, USB-C, 3.5mm audio, and support for NP-F batteries or DC input.

• Cool and Quiet: Features smart dual-mode cooling for efficient thermal management.

GENERAL SPECIFICATIONS:

• Screen size 7 inch LCD

• Resolution 1920 x 1080 pixels

• Pixel density 323 PPI

• Aspect ratio 16:9

• Brightness 1000 nits

• Contrast ratio 1000 to 1

• Viewing angle 176 degrees horizontal and vertical

• Backlight type Edge-Lit ultra-transparent LED

• Screen calibration supported

COLOR AND LUTS:

• LUT support 1D and 3D Cube LUTs

• 1D LUT resolution up to 4096 points

• 3D LUT resolution up to 127 points

VIDEO INPUT:

• HDMI 2.0 input

• 4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

• 4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

• 1080p at 23.98 24 25 29.97 30 50 59.94 60 fps

• 1080i at 50 59.94 60 fps

• 720p at 50 59.94 60 fps

• 3G-SDI input

• 1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A and B

• 1080i at 50 59.94 60 fps

VIDEO OUTPUT:

• HDMI 2.0 output

• 4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

• 4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

• 1080p at 23.98 24 25 29.97 30 50 59.94 60 fps

• 1080i at 50 59.94 60 fps

• 720p at 50 59.94 60 fps

• 3G-SDI output

• 1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A

• 1080i at 50 59.94 60 fps

WIRELESS TRANSMISSION:

• Transmission technology Accsoon Dual-Band

• Wireless latency 60 ms

• Wireless range up to 350 meters

AUDIO:

• Microphone input 3.5mm TRS

• Headphone output 3.5mm CTIA

• Audio sampling 16bit 48kHz

POWER AND CONNECTIVITY:

• DC input 6.0 to 16.8V 5.5mm x 2.1mm center positive

• USB-C power input PD3.0 9V 3A 12V 3A 15V 3A

• USB-C power output 5V 2A max

• Battery compatibility NP-F550 NP-F750 NP-F970

CONSTRUCTION AND ENVIRONMENT:

• Housing Aircraft-grade aluminium alloy

• Cooling system Active and passive

• Power consumption 12W to 28W

• Operating temperature -10 to 40 degrees Celsius

• Dimensions 182.2 x 120.7 x 31.5 mm (antennas excluded)

• Weight 494.3 g (antennas excluded)
