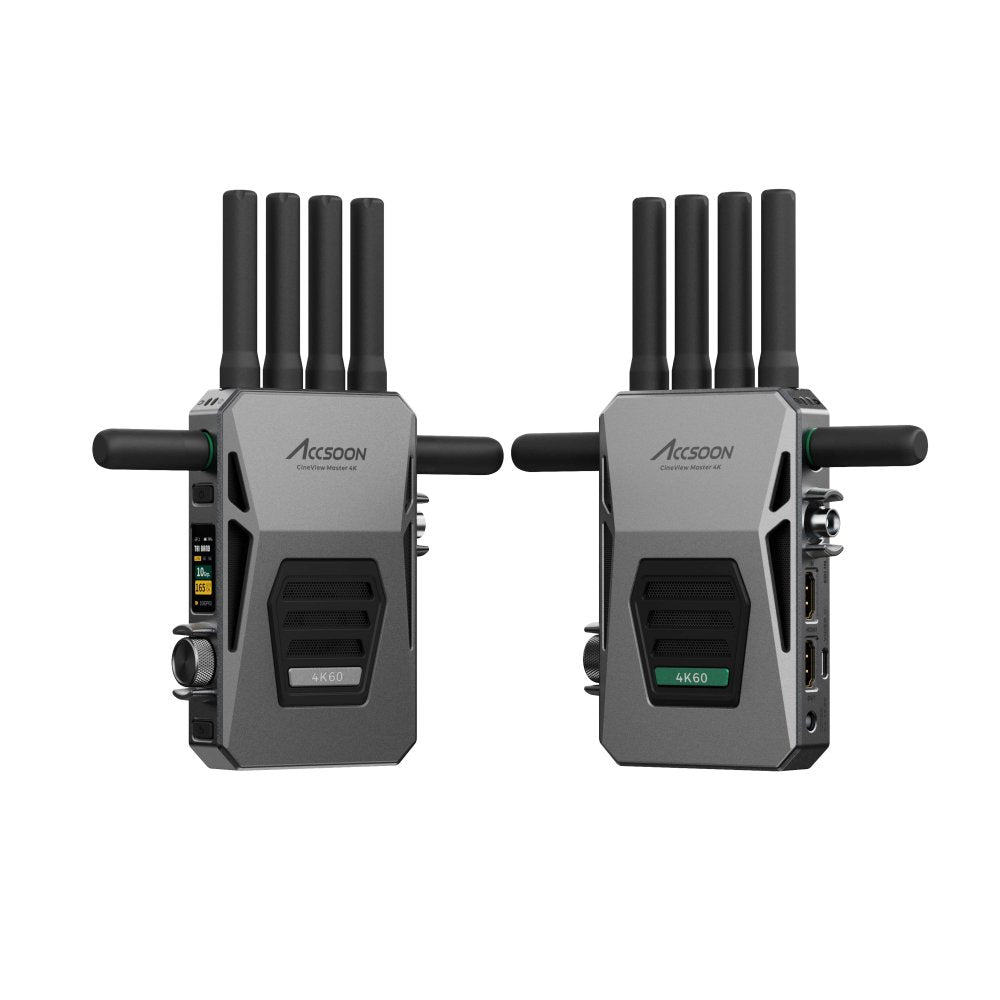

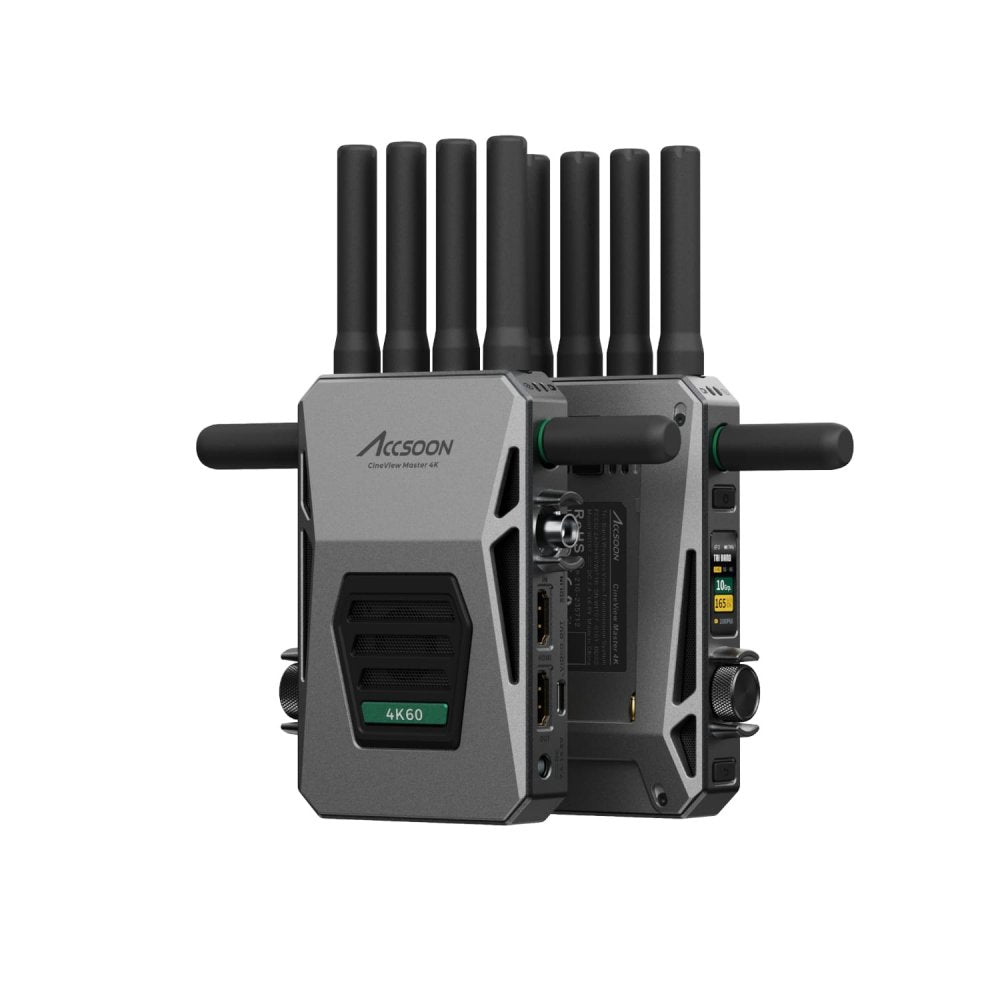

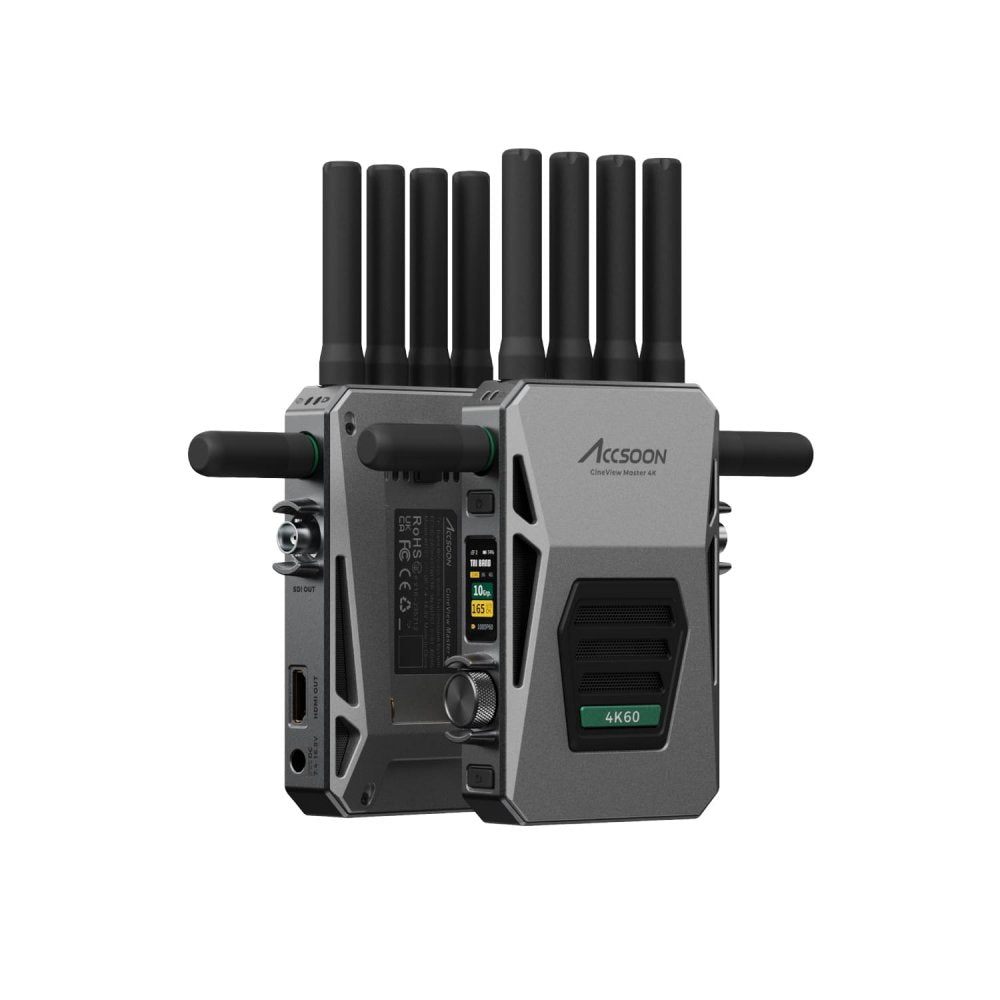

Accsoon CineView Master 4K

The Accsoon CineView Master 4K is a cutting-edge wireless video transmission system designed for high-end production environments. It features true 4K60 video transmission, offering remarkable image quality and minimal latency, ideal for filmmakers and content creators. Utilizing a tri-band (2.4GHz, 5GHz, and 6GHz) wireless transmission technology, it ensures stable and interference-free connections, even in challenging environments. With a transmission range of up to 2.5 kilometers and an industry-leading latency of just 25 milliseconds, it provides reliable performance for capturing and monitoring video over long distances.

The CineView Master 4K supports both SDI and HDMI inputs on the transmitter, and allows output to SDI and HDMI from the receiver, offering flexibility for various video setups. It can simultaneously stream to up to five devices, including smartphones and tablets through the Accsoon SEE App, making it perfect for multi-device monitoring. Its versatile design supports both wireless and wired (USB-C to iOS) connections, enabling users to convert mobile devices into professional monitoring tools. This system is ideal for filmmakers looking to enhance their on-set monitoring capabilities without compromising on video quality or reliability

• True 4K60 Transmission

• Tri-Band Wireless Transmission

• Low Latency

• Extended Range

• Multiple Video Streams

• Device Connectivity

• SDI and HDMI Inputs/Outputs

• Accsoon SEE App Integration

• Durability

• Power Options

TRANSMISSION:

• End-to-end true 4K60 wireless video transmission

• Tri-band wireless transmission (2.4GHz, 5GHz, 6GHz + DFS)

• Transmission range: Up to 2.5km (unobstructed, low-interference conditions)

• Latency: 25ms (1080p), 35ms (4K) without camera latency

• Support for up to 5 devices simultaneously (1 wired, 4 wireless)

• Video stream options: 4K (stream 1), 1080p wireless (stream 2), 1080p wired (stream 3)

INPUT/OUTPUT:

• TX: SDI and HDMI inputs, HDMI loop-out

• RX: SDI and HDMI outputs (simultaneous)

• USB-C video output (wired connection to iPhone/iPad)

• HDMI and SDI embedded audio support

VIDEO FORMATS:

• SDI input: 1080p (23.98/24/25/29.97/30/50/59.94/60fps), 1080i (50/59.94/60i)

• HDMI input/output: 4K (24/25/30/50/60p), 1080p (24/25/30/50/60p), 1080i (50/60i)

• HDMI loop-out: identical to HDMI input

POWER:

• DC input: 7.4-16.8V (5.5mm x 2.1mm connector, center positive)

• Battery: NP-F550, NP-F750, NP-F970 compatibility

• Hot-swap capable with DC and battery power

• Power consumption: 6.5W (TX), 5.0W (RX)

HARDWARE:

• Aerospace-grade aluminum alloy body

• 1.05-inch full-color LCD display

• Quiet, intelligent heat dissipation with multiple fan settings

• Dimensions (excluding antennas): 130mm x 95mm x 32mm

• Weight (excluding antennas): 322g (TX), 320g (RX)

APP COMPATIBILITY:

• Accsoon SEE App: iOS and Android (monitoring, bitrate control, video stream selection)

• Supported devices: iPhone 12 and later, iPad Pro (3rd gen and later)

OTHER FEATURES:

• Wired USB output to iOS (via USB-C or Lightning)

• Bitrate control (up to 24Mbps for 4K, 12Mbps for 1080p wireless, 32Mbps for 1080p wired)

• 8K high-performance A/V processor for multiple streams

• Compatible with Accsoon V-mount battery adapter
