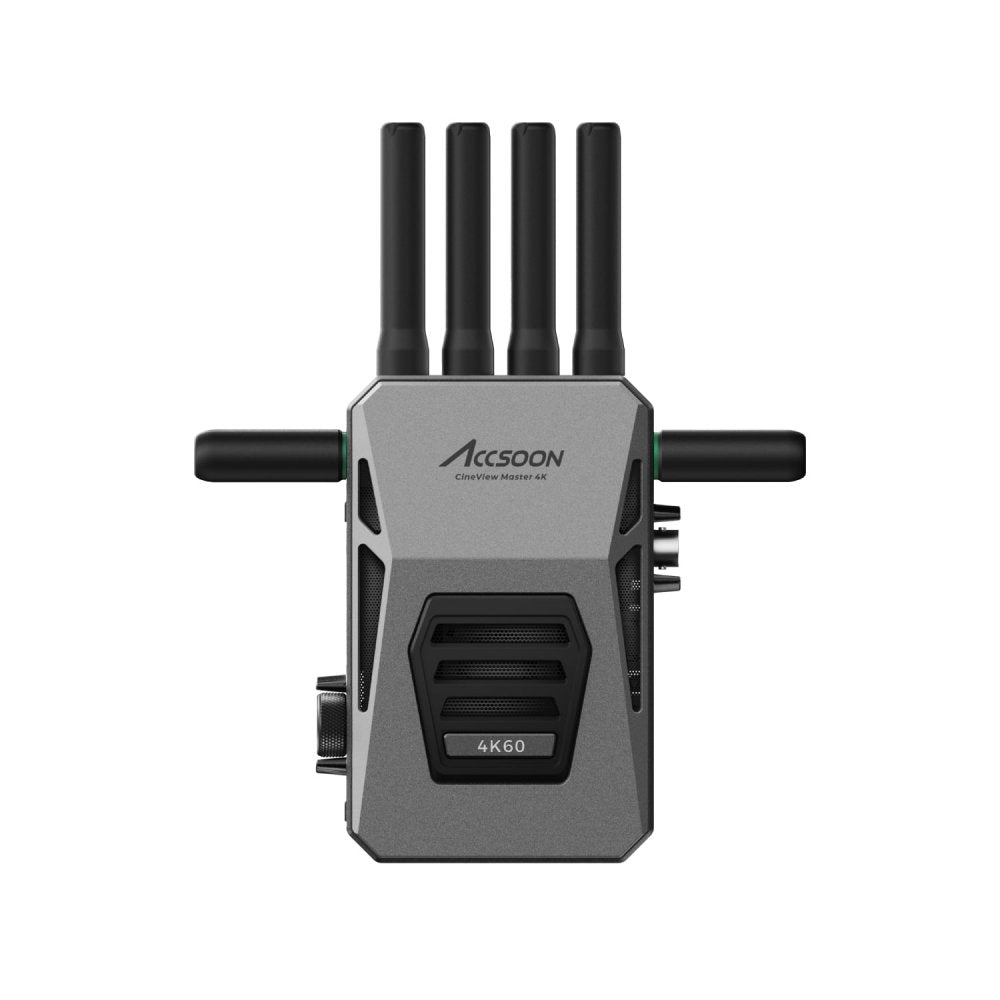

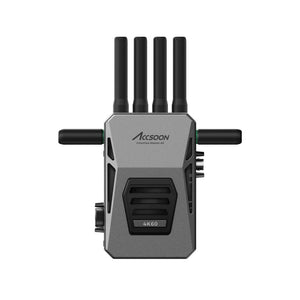

Accsoon CineView Master 4K-RX

The CineView Master 4K Receiver is designed to wirelessly receive video transmissions with remarkable clarity and low latency, making it ideal for professional video production. Paired with the CineView Master 4K transmitter, this system ensures smooth video and audio transmission with minimal interference, utilizing tri-band wireless technology (2.4GHz, 5GHz, and 6GHz) for added stability. The receiver can output video via HDMI or SDI, allowing for seamless integration into various monitoring setups.

This receiver is capable of handling up to 4K60 video, providing detailed, high-resolution imagery. It supports multiple video streams, allowing connections with up to five devices simultaneously, which can include other receivers or mobile devices through the Accsoon SEE App. Its versatility is further enhanced by compatibility with both Android and iOS, enabling remote monitoring and adjustments. With a rugged aluminum alloy build, the receiver is built for demanding production environments and operates efficiently with DC input or NP-F batteries, making it portable and adaptable to different scenarios.

• 4K60 Video Output

• SDI and HDMI Output

• Simultaneous Connections

• Low Latency

• Multiple Video Stream Options

• Silent Cooling

•

GENERAL SPECIFICATIONS:

• Supported Video Input: HDMI, 3G SDI

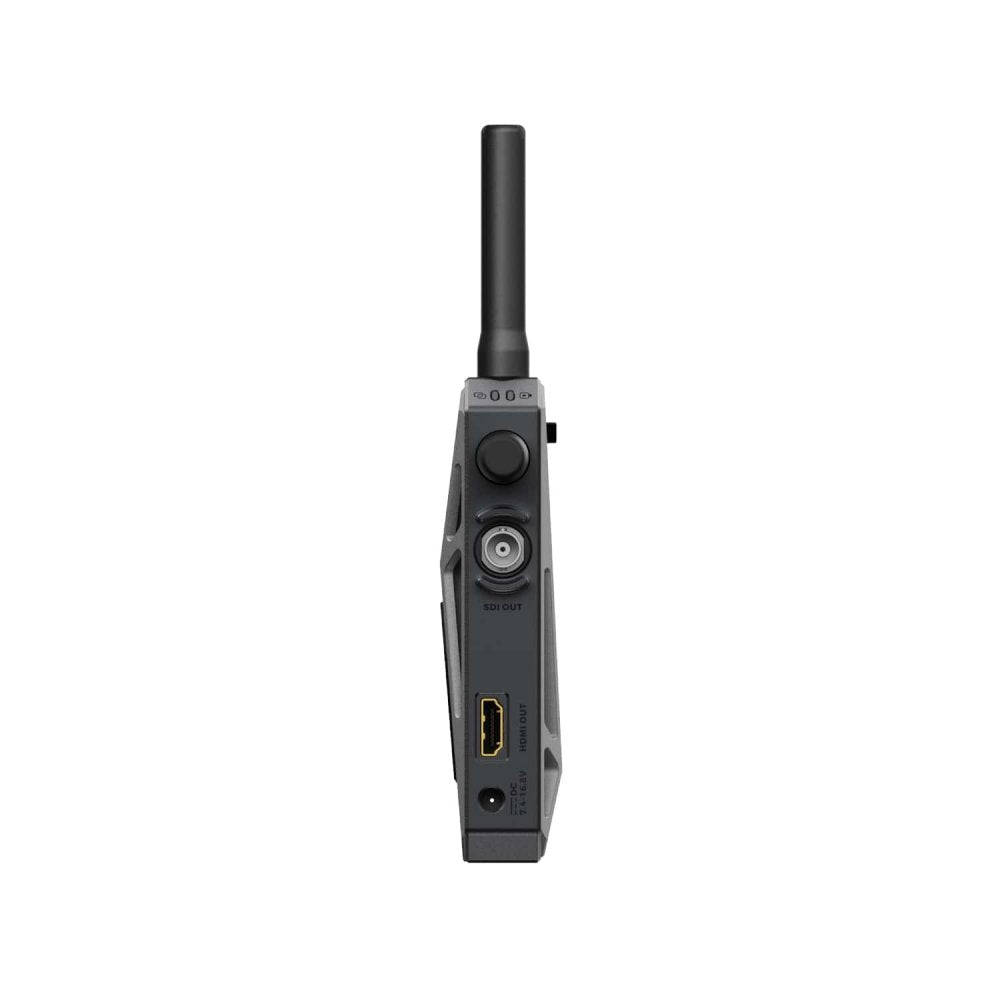

• Video Output: HDMI, SDI

• SDI Output Format: Up to 1080p/60fps

• HDMI Output Format: Up to 4K60

•

POWER:

• Power Input: 7.4V"16.8V DC (5.5mm x 2.1mm, center positive)

• Battery Compatibility: NP-F550, NP-F750, NP-F970

• Power Consumption: 5W average

•

TRANSMISSION:

• Latency: 1080p < 25ms, 4K < 35ms (camera latency excluded)

• Transmission Range: Up to 2.5km (line of sight, no interference)

•

CONNECTIVITY:

• Number of Simultaneous Connections: Supports up to 5 devices (1 wired, 4 wireless)

• Wireless Frequency Bands: 2.4GHz, 5GHz, 6GHz (Tri-band)

• Supported Mobile Devices: iPhone, iPad, Android devices

•

PHYSICAL:

• Dimensions (without antennas): 130mm x 95mm x 32mm

• Weight (without antennas): 320g

• Operating Temperature: -10C to 40C

•

AUDIO:

• Audio Input: HDMI embedded, SDI embedded

•

OTHER FEATURES:

• Video Streams: Supports pulling 4K or 1080p streams

• Cooling: Intelligent fan system with adjustable modes

• Material: Aerospace-grade aluminum alloy
