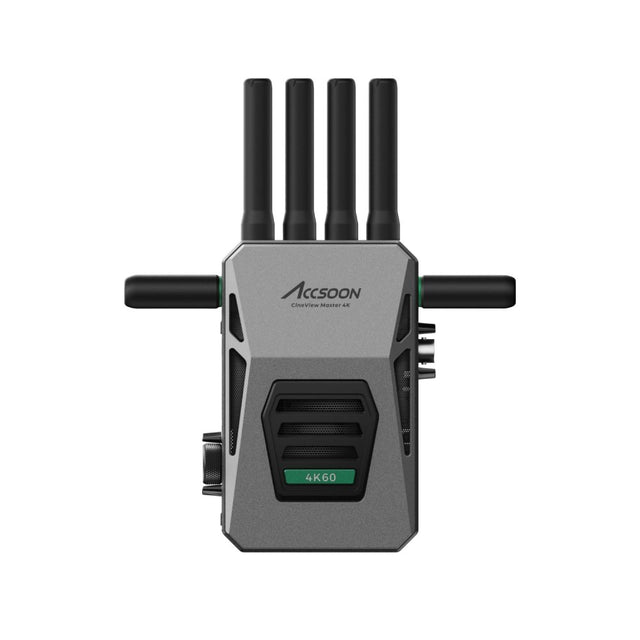

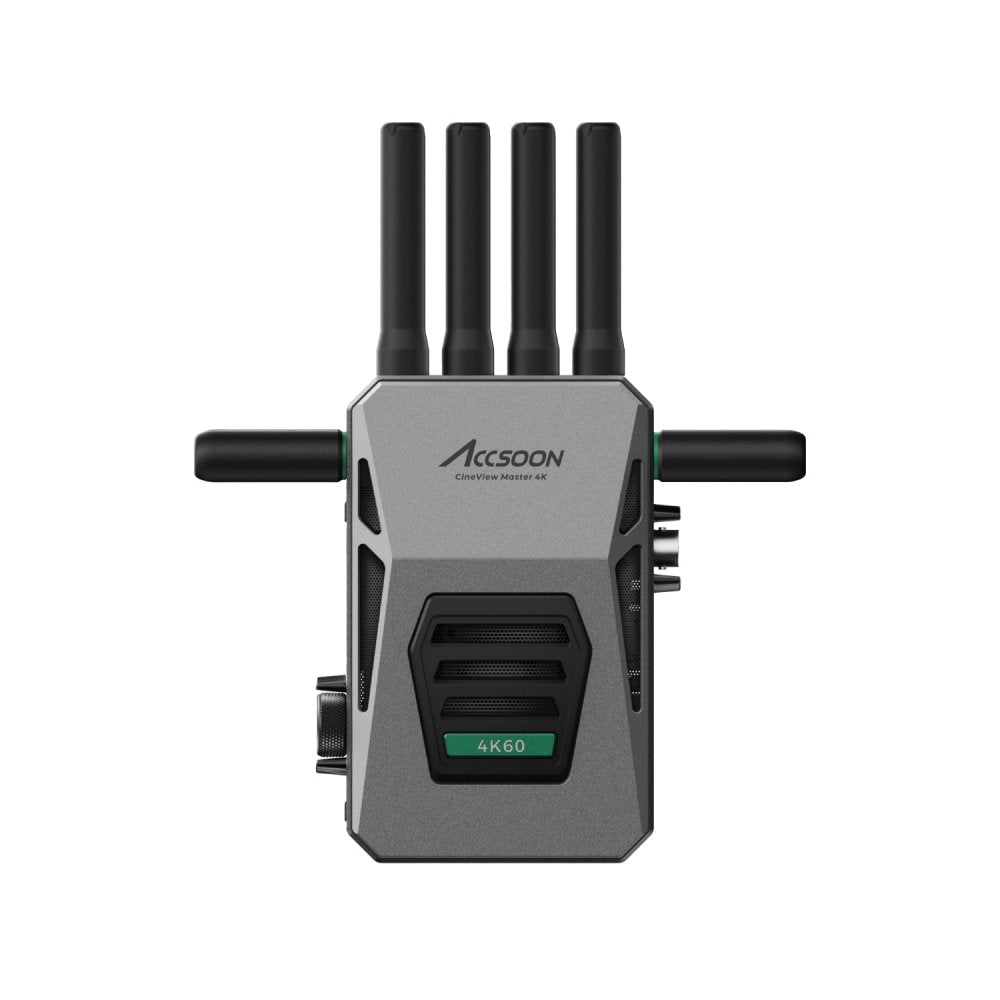

Accsoon CineView Master 4K-TX

The CineView Master 4K transmitter is designed for high-performance, professional video transmission. It supports a wide range of features to ensure smooth and versatile operation. The transmitter can handle true 4K60 video transmission with minimal latency (as low as 25ms) over long distances, up to 2.5 km in ideal conditions. This makes it ideal for live production setups where high-quality video needs to be sent over significant distances without losing resolution or timing.

The transmitter comes equipped with HDMI and SDI inputs, along with HDMI loop-out for flexibility in connecting to different devices. It also has USB-C video out, which allows for direct wired transmission to iOS devices like iPhones or iPads, turning them into high-quality monitors. Wireless video transmission is enhanced by the use of tri-band technology (2.4GHz, 5GHz, and 6GHz), providing strong and stable signals even in challenging environments. Up to five devices can receive signals simultaneously, with one wired and four wireless connections.

• 4K60 Wireless Transmission: Supports true end-to-end 4K video streaming for professional monitoring.

• Tri-band Wireless System: Operates on 2.4GHz, 5GHz, and 6GHz frequencies for stable transmission.

• Low Latency: Best-in-class latency of 25ms for real-time video monitoring.

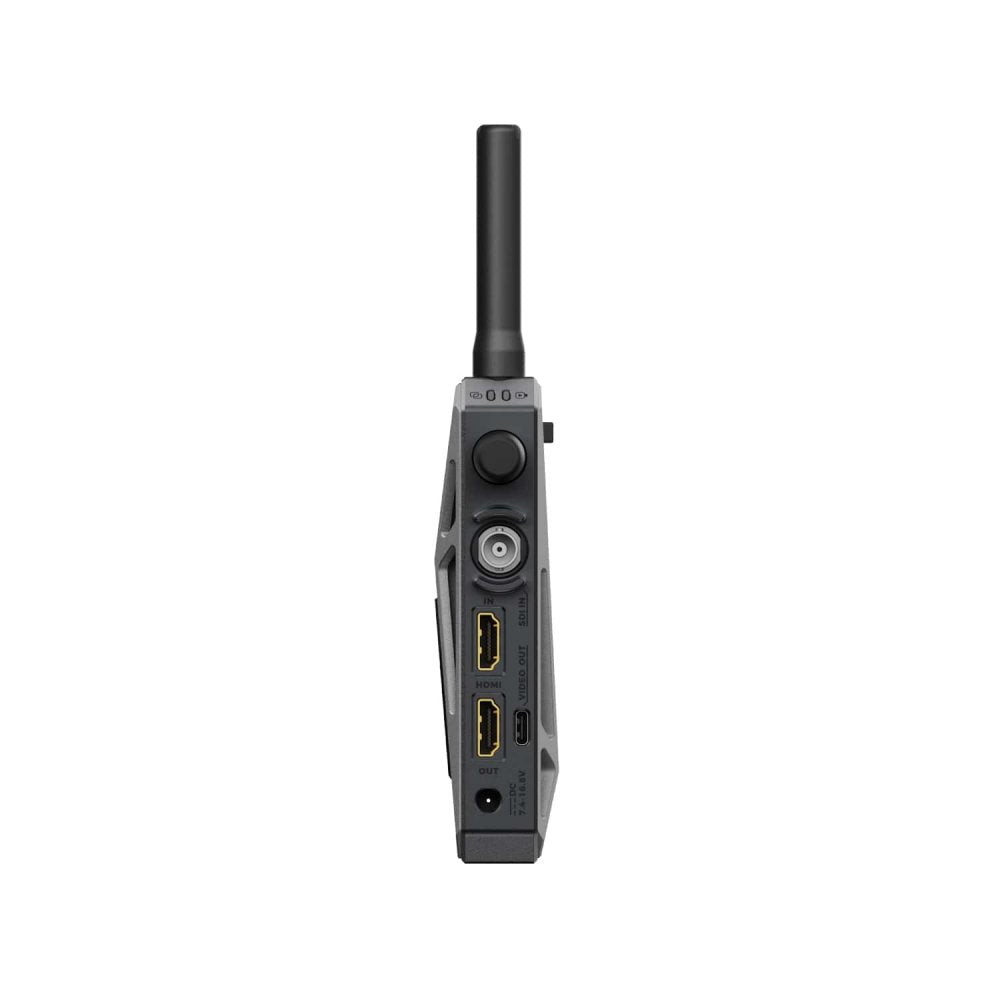

• Multiple Video Inputs: Offers SDI and HDMI inputs, with HDMI loop-out for simultaneous video output.

• Wired and Wireless Connections: Can transmit video wirelessly or via USB-C to iPhone/iPad with MFi certification.

• Simultaneous Transmission: Capable of sending video to up to five devices (one wired and four wireless).

• Power Versatility: Can be powered via NP-F battery or DC input with hot-swap capability for uninterrupted use.

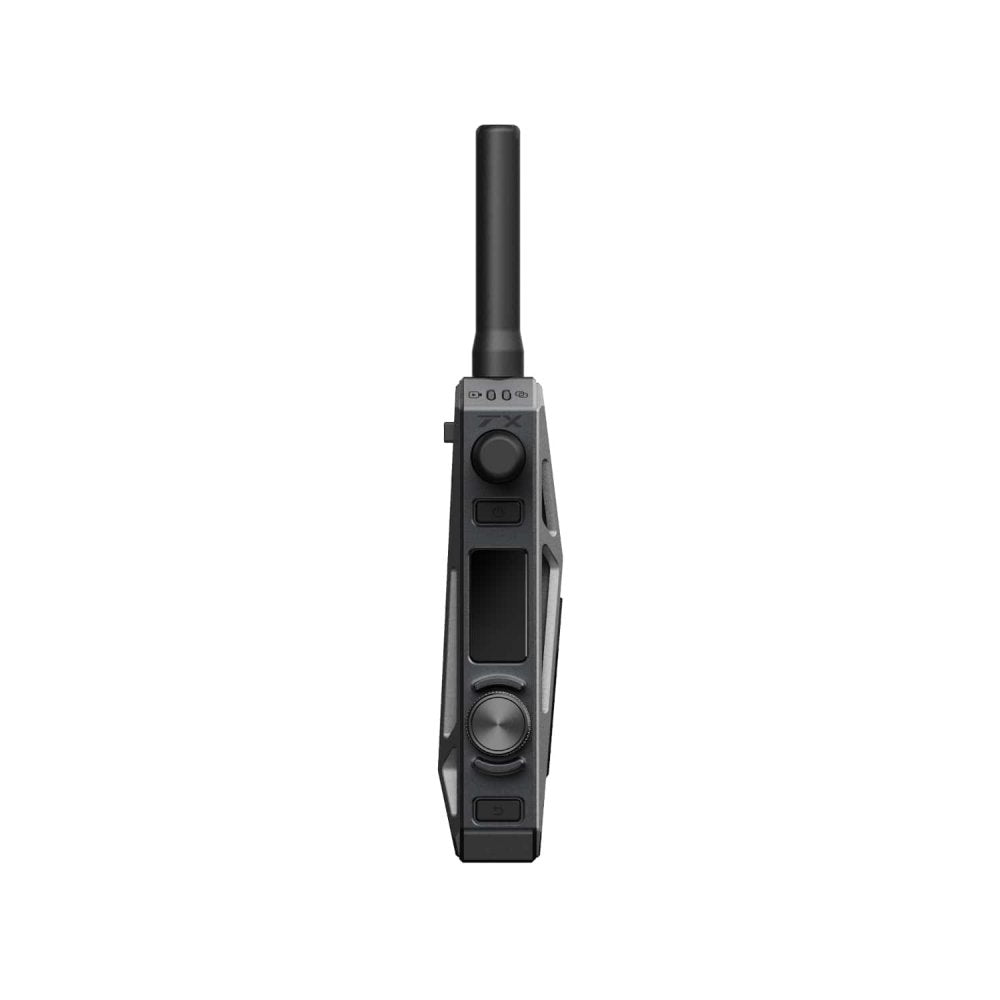

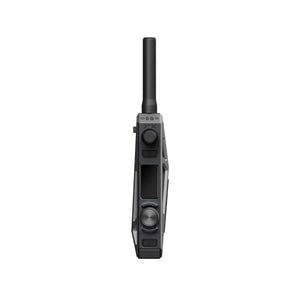

• Full-Color Display: 1.05-inch screen provides status and settings at a glance.

• Durable Build: Aerospace-grade aluminum for a lightweight yet sturdy design.

GENERAL:

• Weight: 322g (without antennas)

• Dimensions: 130mm x 95mm x 32mm (without antennas)

• Power Input: 7.4V - 16.8V (DC Input via 5.5mm x 2.1mm port, center positive)

• Compatible Battery: NP-F550, NP-F750, NP-F970 series

• Power Consumption: 6.5W (without powering other devices)

VIDEO INPUT/OUTPUT:

• SDI Input: 3G SDI, supports up to 1080p60

• HDMI Input: 4K (3840x2160) 24/25/30/50/60p, 1080p 24/25/30/50/60p, 1080i 50/60i

• HDMI Loop-Out: Identical to HDMI input

• USB Video Output: USB-C to iOS devices (for wired transmission)

TRANSMISSION:

• Wireless Protocol: Proprietary RTMS4.0

• Tri-band transmission: 2.4GHz, 5GHz, 6GHz with DFS (Dynamic Frequency Selection)

• Latency: 4K < 35ms, 1080p < 25ms

• Maximum Range: 2.5km (with FCC compliance, unobstructed)

• Supports up to 5 simultaneous connections (1 wired, 4 wireless)

VIDEO FORMATS:

• Maximum Resolution: 4K 60fps

• Bitrate: Adjustable up to 24Mbps (for 4K wireless/wired), 12Mbps (for 1080p wireless), 32Mbps (for 1080p wired)

• Supports both VBR (Variable Bitrate) and CBR (Constant Bitrate)

DISPLAY AND INTERFACE:

• LCD Display: 1.05-inch full-color

• User Interface: Menu navigation via knob

• Indicators: Battery level, connection status, video input, and frequency settings

COMPATIBILITY:

• Supported Devices: iPhone 12 and newer, iPad Pro 12.9-inch (Gen 3+), iPad Pro 11-inch (Gen 3+), iPad Air (Gen 4+), iPad mini (Gen 6+)

• Mobile Monitoring: Accsoon SEE App for Android/iOS

OTHER FEATURES:

• Quiet Heat Dissipation: Intelligent fan control

• Aerospace-grade aluminum alloy construction

• Mounting: Anti-rotation 1/4" screw hole and cold shoe mount
