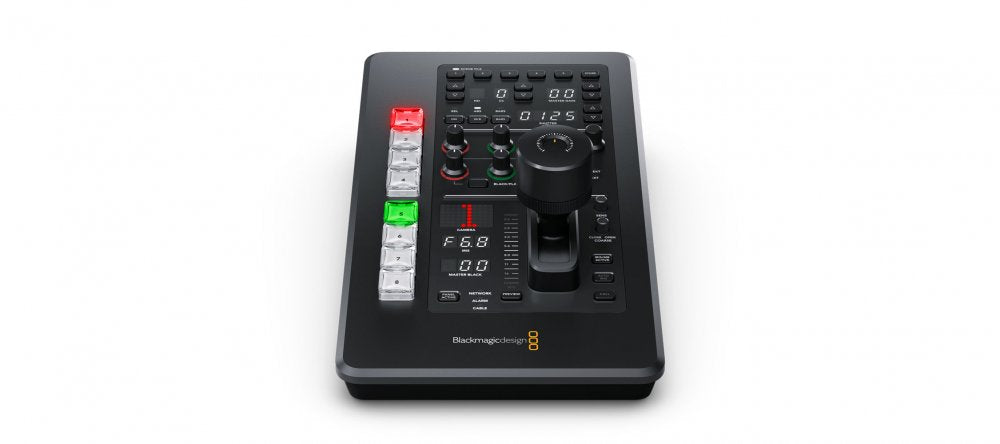

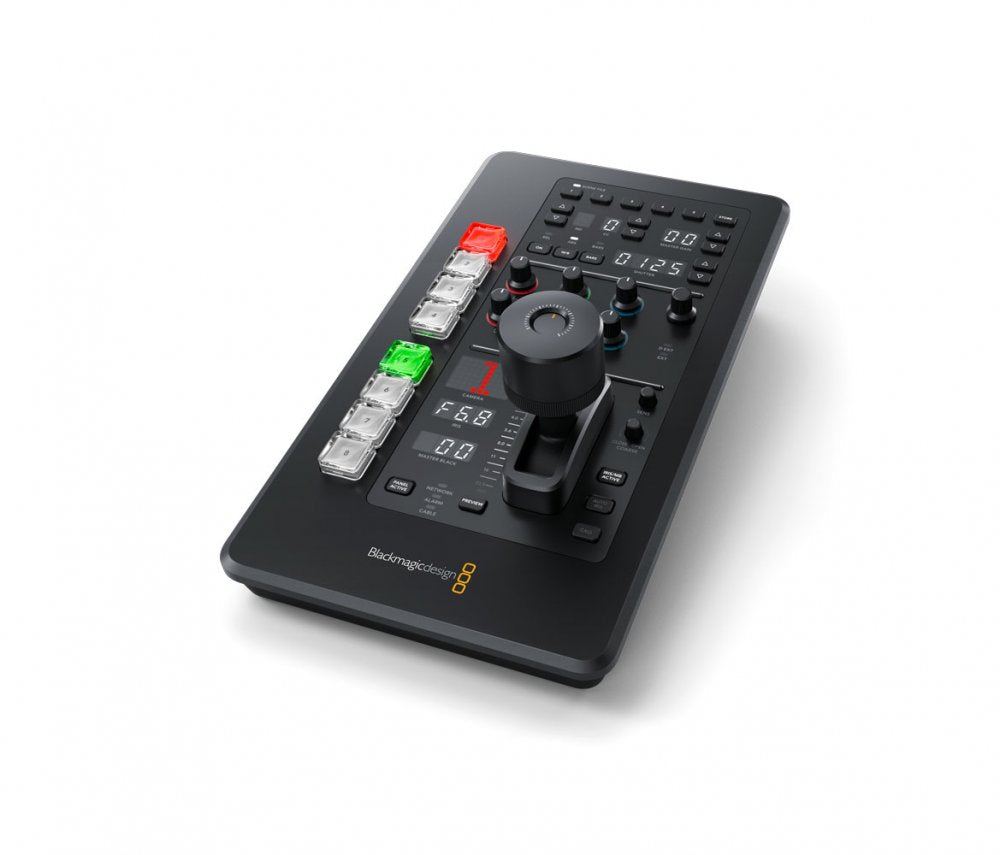

Blackmagic Design ATEM Micro camera control panel for up to 8 cameras

The ATEM Micro Camera Panel is a compact and portable solution designed for precise camera control in professional live production setups. Built for flexibility, this lightweight unit supports control of up to 8 cameras from a single panel, making it ideal for multi-camera environments such as studio broadcasts, live events, or OB vans. It connects via USB-C or Bluetooth 5.1 LE to the ATEM Software Control, providing an intuitive extension for remote camera operation without the need for bulky equipment.

Designed with high-end broadcast control in mind, the panel features 8 illuminated NKK camera selection buttons, a three-axis joystick for iris and pedestal control, and a suite of dedicated knobs and controls for settings like shutter speed, white balance, gain, and RGB balance. Users can fine-tune exposure and color matching on the fly, with camera status indicated through color-coded LEDs (green for off-air, red for on-air). Additionally, each camera can store up to five recallable scenes, enabling quick switching between pre-configured looks. With internal battery power and external USB-C charging, the ATEM Micro Camera Panel offers mobility and reliability in a streamlined design tailored for fast-paced production environments.

• Multi-Camera Control: Supports control of up to 8 cameras from a single compact panel.

• High-End CCU Functions: Adjust iris, pedestal, shutter, white balance, gain, RGB balance, and more.

• Camera Selection Buttons: Includes 8 professional NKK buttons with color indicators for on-air status.

• Flexible Connection Options: Connects via USB-C or Bluetooth 5.1 LE to ATEM Software Control.

• Compact Joystick Control: Features a 3-axis joystick for precise camera adjustments.

• Manual and Auto Iris: Offers coarse iris adjustment and auto iris toggle for quick setup.

• Scene Presets: Store and recall up to 5 custom scenes per camera.

• Smooth Setup and Balancing: Includes white and black balance tools, flare correction, and panel lock.

• Preview Integration: Built-in preview button allows quick camera checking and switching.

• Battery Powered Design: Runs on an internal rechargeable battery with USB-C power and charging.

• Cross-Platform Support: Works with ATEM Software Control on macOS and Windows systems.

• Portable and Lightweight: Designed for live production on the move or in tight spaces.

GENERAL SPECIFICATIONS:

• Portable camera control panel

• Supports control for up to 8 cameras

• Broadcast-grade CCU controls

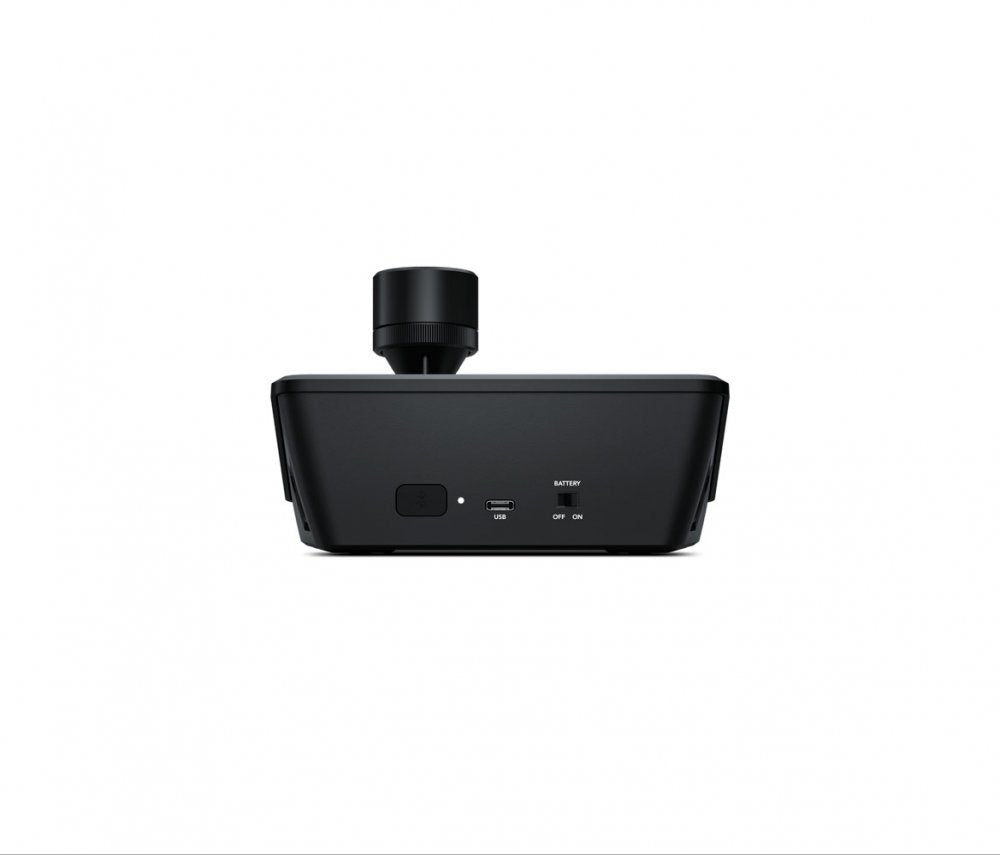

CONNECTIONS:

• USB Type'C for computer interface and power

• Bluetooth 5.1 LE

• 1 x USB'C for firmware updates

CAMERA CONTROL FEATURES:

• 8 x NKK camera selection buttons (assignable)

• Camera number display: green (off-air), red (on-air)

• White and black balance setup

• Flare adjustment via modifier key

• 3-axis joystick for control

• Iris control: Auto Iris On, Coarse control

• Iris range: CLS f32 to f1.2

• Gain range: -12 dB to +32 dB

• ND filter settings: 0, 2, 4, 6

• Shutter range: 1/24 to 1/2000

• White balance range: 2500K to 10,000K

• 5 recallable scenes per camera

• Panel Active function to protect settings

SOFTWARE COMPATIBILITY:

• Controls ATEM Software Control Panel on host computer

OPERATING SYSTEMS:

• macOS 14.0 Sonoma, macOS 15.0 Sequoia or later

• Windows 10 and 11

• Windows 11 for ARM

POWER REQUIREMENTS:

• Internal battery with power switch

• USB-C port for external power supply and charging

• Power usage: TBA

• Battery life: TBA

ENVIRONMENTAL SPECIFICATIONS:

• Operating temperature: 5 to 40 C (41 to 104 F)

• Storage temperature: -20 to 45 C (-4 to 113 F)

• Relative humidity: 0% to 90% non'condensing

INCLUDED ACCESSORIES:

• ATEM Micro Camera Panel

• Welcome wallet with QR code for software download

• 1 x USB'C cable
