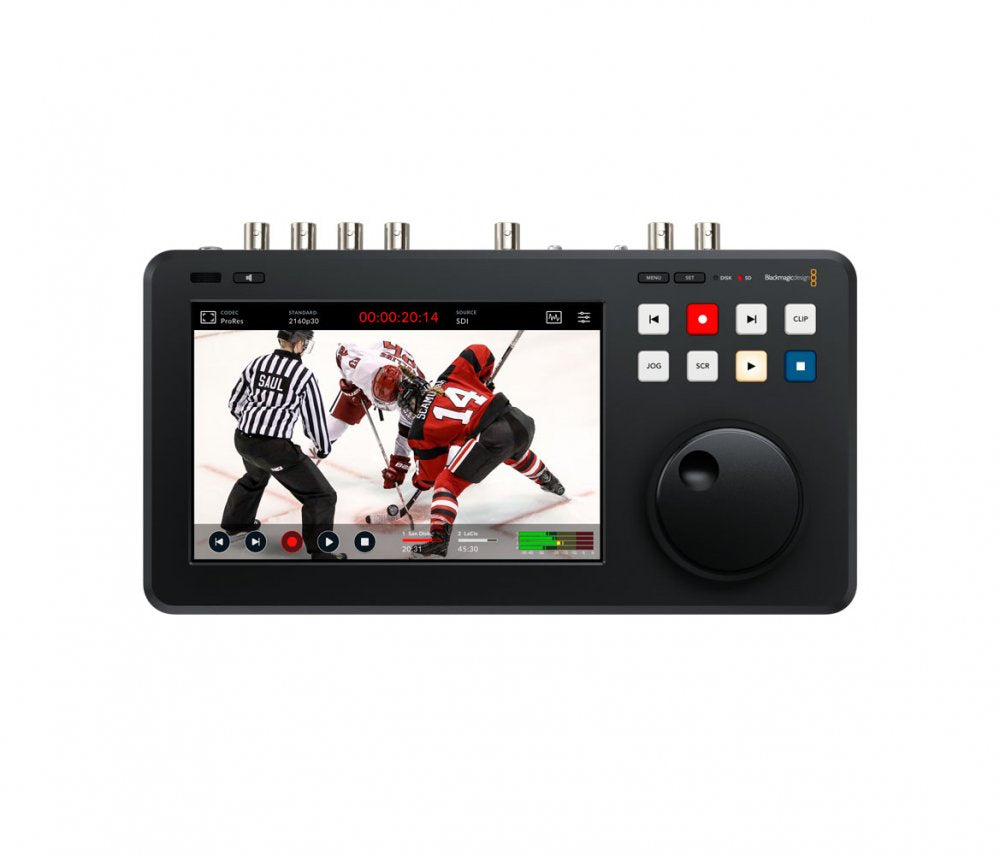

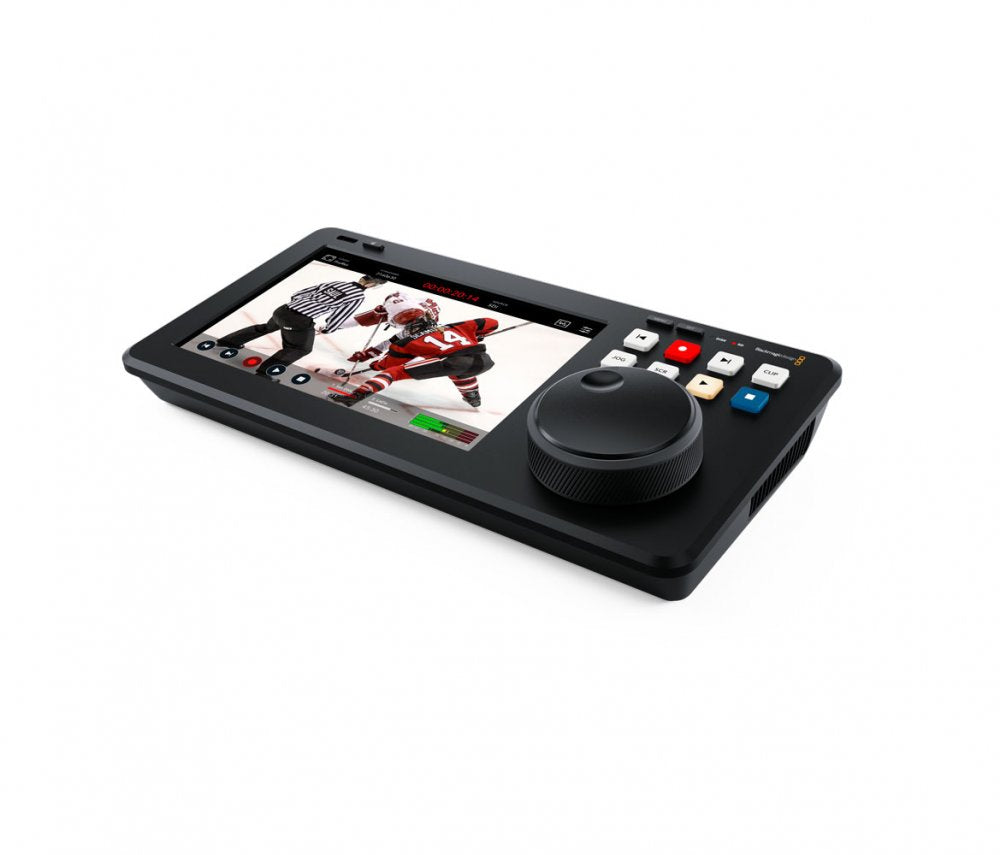

Blackmagic Design HyperDeck Shuttle 4K Pro Recorder & Player

The HyperDeck Shuttle 4K Pro is Blackmagic Design's most advanced desktop recorder and media player to date, combining professional broadcast functionality with a compact, ergonomic form factor. Equipped with a vivid 7-inch HDR touchscreen, tactile transport controls, and a precision-machined search dial, this unit is built for efficiency and control in live production, post workflows, and on-set environments. Whether capturing master recordings or playing back critical assets, it supports all standard and Ultra HD formats up to 2160p60, using high-quality codecs like Apple ProRes, DNx, H.264, and H.265.

At the heart of its innovation is built-in 10G Ethernet and internal M.2 flash storage, transforming it into a powerful network storage device. This unique capability allows seamless sharing of media with editing and color grading teams-even during ongoing recording. Editors using DaVinci Resolve can begin working instantly, with proxy files syncing in real time via Blackmagic Cloud. The HyperDeck Shuttle 4K Pro also doubles as a waveform monitor, offering advanced scopes including waveform, vectorscope, parade, and histogram, overlayed or in picture-in-picture views-all accessible through its intuitive touch interface.

Designed to meet the needs of modern HDR workflows, it supports both PQ and HLG metadata standards and delivers a wide color gamut with full DCI-P3 coverage on its bright display. A digital slate with metadata tagging, take/reel management, and advanced automation over Ethernet make it a true asset for production teams. Its multi-rate 12G-SDI and HDMI 2.0 connectivity, combined with broad codec support and OS-level control, make the HyperDeck Shuttle 4K Pro a go-to solution for master recording, media playback, remote collaboration, and more.

• Desktop media recorder and clip player

• 7-inch touchscreen LCD with playback timeline

• Traditional broadcast-style controls with jog/shuttle wheel

• Records in H.264, H.265, Apple ProRes, and DNx formats

• Supports SD, HD, and Ultra HD up to 2160p60

• Internal M.2 storage slot for built-in network storage

• 10G Ethernet for fast media sharing across the network

• Accessible by multiple editors and colorists simultaneously

• Includes waveform, vectorscope, RGB parade, and histogram scopes

• HDR support with Rec. 709, Rec. 2020, and DCI-P3 color

• Digital slate for entering shot info and take numbers

• Metadata saved with recordings for use in post-production

• Supports Blackmagic Cloud and DaVinci Resolve collaboration

• Records proxy files for real-time remote editing

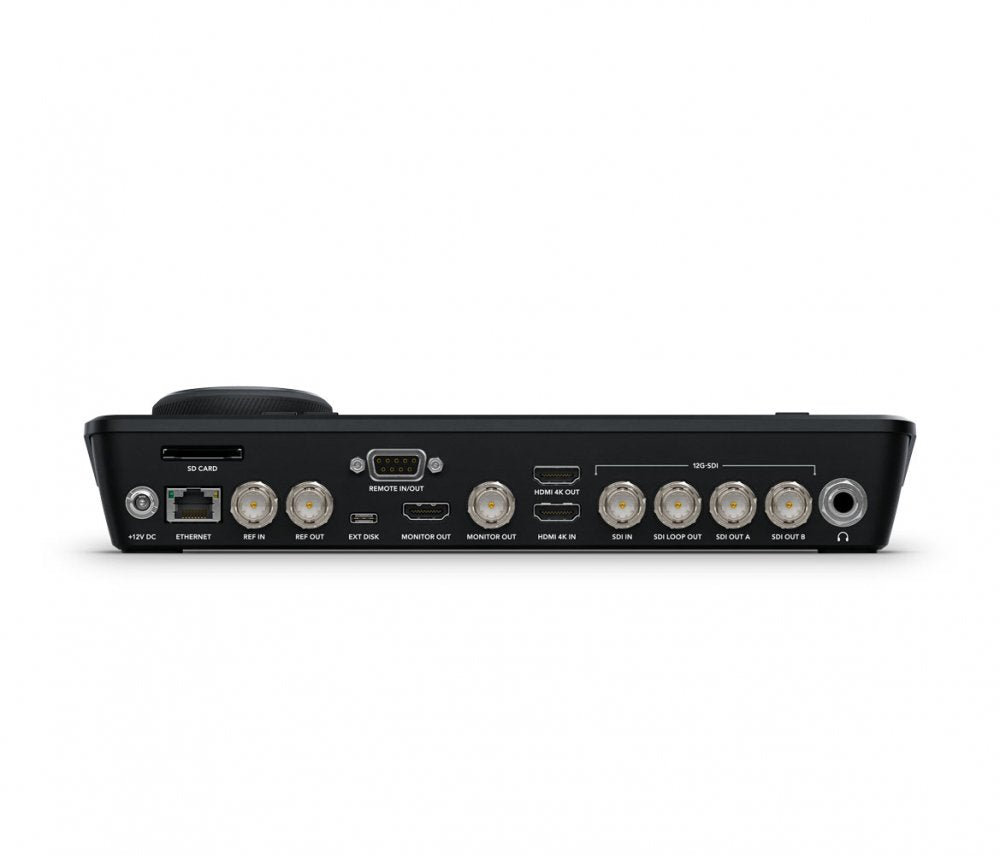

• 12G-SDI, HDMI 4K, USB-C, SD card slot, and Ethernet ports

• Remote control via Ethernet, FTP, web UI, or REST API

• Can function as a recorder, media player, waveform monitor, and server

GENERAL SPECIFICATIONS:

• Desktop live media recorder and player

• Large 7" HDR touchscreen LCD with ergonomic broadcast-style controls

• Records and plays H.264, H.265, Apple ProRes, and DNx formats

• Internal M.2 flash storage with network sharing capability

• Built-in waveform, vectorscope, parade, and histogram monitoring

• Integrated 10G Ethernet for network storage and fast media access

• Compatible with Blackmagic Cloud and DaVinci Resolve collaboration

VIDEO FORMAT SUPPORT:

• Supports NTSC and PAL in standard definition

• Supports 720p50 and 720p59.94 in 720p HD

• Supports 1080i50 and 1080i59.94 in 1080i HD

• Supports 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, and 1080p60 in 1080p HD

• Supports 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, and 1080PsF30 in 1080PsF HD

• Supports 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94, and 2160p60 in Ultra HD

• Supports 3G-SDI level A and level B

VIDEO & AUDIO CONNECTIONS:

• Includes 12G-SDI and HDMI 4K video input and output

• Includes USB-C for recording to external disks or software updates

• Includes SD card slot supporting SD and UHS-II cards

• Includes 12V DC power input

• Supports uncompressed PCM or AAC audio

STORAGE & MEDIA:

• Includes internal M.2 flash memory

• Supports recording to external USB-C drives and SD cards

• Supports ExFAT and HFS+ file systems

• Supports single-file long duration recording

• Allows direct folder selection on shared storage

• Supports HTTP/S and FTP file transfers

• Supports remote control via Telnet and REST API

RECORDING CODECS:

• Supports Apple ProRes, DNx, H.264, and H.265 recording formats

• Supports proxy file recording with auto-sync during capture

DISPLAY & MONITORING FEATURES:

• Includes 7" HDR touchscreen with heads-up display overlay

• Displays timecode, audio levels, and media status

• Includes focus assist, RGB histogram, and HDR scopes

• Supports waveform, vectorscope, RGB/YUV parade, and histogram scopes

• Allows scope overlays or picture-in-picture views

HDR & COLOR SUPPORT:

• Supports PQ and HLG HDR formats (ST2084 standard)

• Supports Rec. 709 and Rec. 2020 color spaces

• LCD covers 100% of DCI-P3 color gamut

• Supports HDR scope auto-detection and metadata tagging

METADATA & SLATE TOOLS:

• Includes digital slate with swipe activation

• Supports automatic take number and reel number incrementing

• Saves metadata into recorded files for use in post-production

• Compatible with DaVinci Resolve source tape view

REMOTE CONTROL & INTEGRATION:

• Supports deck control via Ethernet

• Supports full API access through REST and Telnet

• Compatible with ATEM switchers for playback integration

• Enables file sharing and collaboration via Blackmagic Cloud

SOFTWARE & COMPATIBILITY:

• Supports DaVinci Resolve for live edit/playback during recording

• Compatible with on-set production software and workflows

• Supports real-time media sync with remote teams

OPERATING SYSTEM & INTERFACE:

• Runs on Blackmagic OS

• Features fast boot and responsive interface

• Displays menus on built-in touchscreen
