Blackmagic Design HyperDeck Shuttle 4K Pro Recorder & Player - 2TB

Streamlined Desktop Recording Meets Broadcast-Grade Performance

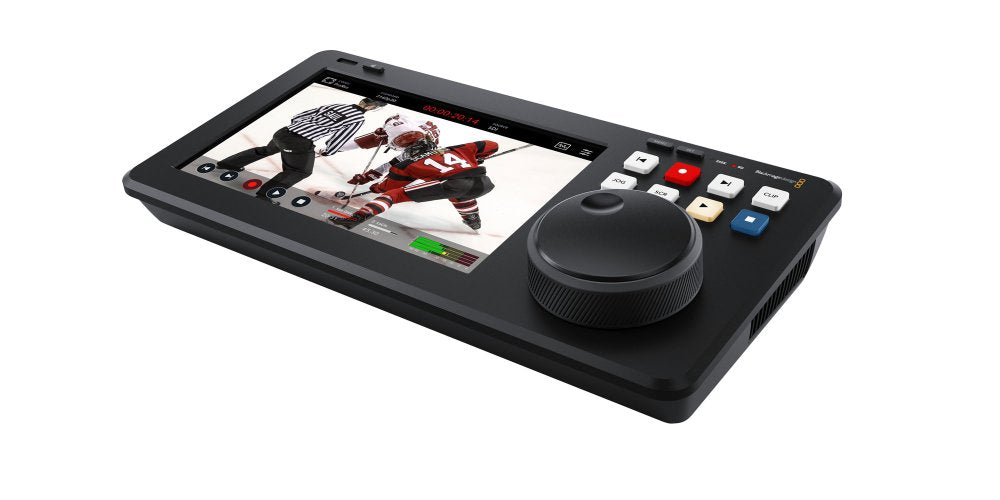

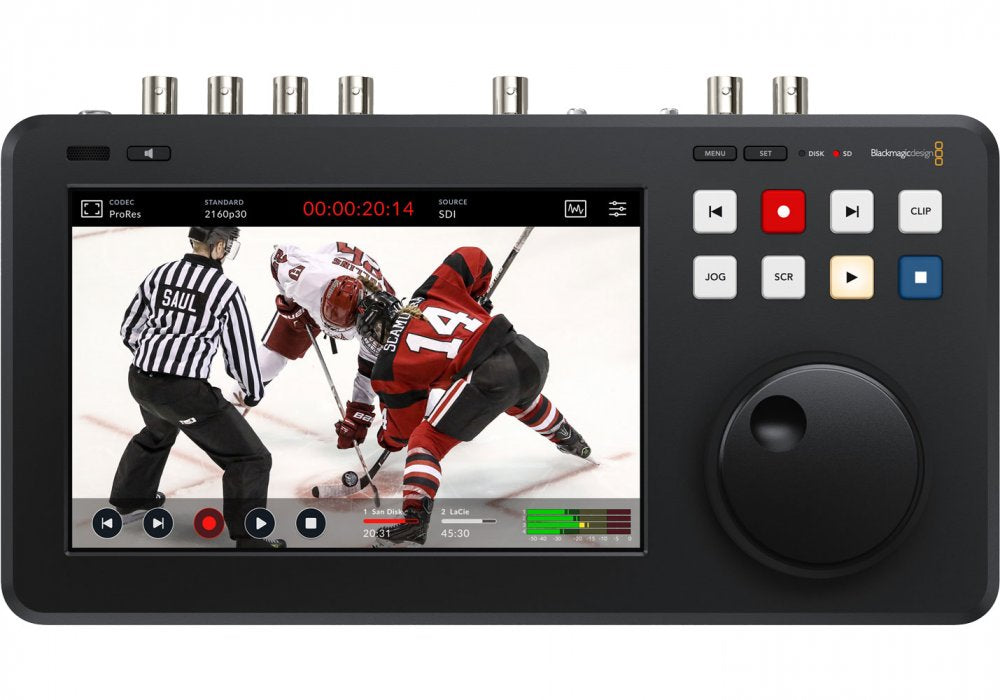

The HyperDeck Shuttle 4K Pro - 2TB from Blackmagic Design is a compact yet highly capable desktop broadcast recorder and player. Its ergonomic front panel is designed for intuitive one-hand operation, with a tactile search dial and responsive, traditional broadcast-style buttons right at your fingertips. The 7-inch HDR touchscreen display offers vibrant clarity, complete with touch menus and essential controls like playback, record, pause, and a mini timeline for quick clip navigation. It even features a customizable heads-up display with timecode, media status, and audio meters, plus advanced tools like focus assist, broadcast scopes, and 3D LUT support for professional-grade monitoring and look management.

This HyperDeck isn't just about good looks and user-friendly controls-it's a powerhouse under the hood. Supporting a wide range of codecs including Apple ProRes, DNx, and space-efficient H.264/H.265, the HyperDeck Shuttle 4K Pro records in SD, HD, and full Ultra HD formats. It allows for direct recording to internal M.2 flash storage or centralized network storage, making it an excellent solution for multi-user post-production environments. With its built-in 10G Ethernet, remote editing via DaVinci Resolve becomes a breeze, while the HyperDeck's ability to record and upload proxy files in real-time streamlines remote collaboration through Blackmagic Cloud. This is a device that not only captures your footage-it transforms your entire workflow.

• Compact desktop recorder with single-hand operation.

• Built-in 7-inch HDR touchscreen for control and monitoring.

• Traditional broadcast-style controls with large search dial.

• Integrated 2TB M.2 flash storage and network recording support.

• Records in H.264, H.265, Apple ProRes, and DNx formats.

• Supports SD, HD, and Ultra HD up to 2160p60 via 12G-SDI and HDMI.

• 10G Ethernet for fast remote media access and control.

• HDR-ready display with wide color gamut and automatic format detection.

• Built-in waveform, vectorscope, RGB/YUV parade, and histogram displays.

• Digital slate for quick metadata entry and management.

• Supports remote control and automation via Ethernet and web protocols.

• Seamless collaboration with DaVinci Resolve and Blackmagic Cloud.

• Advanced Blackmagic OS with fast menus and localization.

GENERAL SPECIFICATIONS:

• Model: Blackmagic Design HyperDeck Shuttle 4K Pro

• Form Factor: Desktop recorder

• Included Storage: 2TB M.2 flash storage

• Operating System: Blackmagic OS

DISPLAY:

• Type: 7-inch HDR LCD

• Features: Touchscreen interface, HUD overlay, playback timeline, digital slate

RECORDING FORMATS:

• Video Codecs: H.264, H.265, Apple ProRes, DNx

• Supported Formats: NTSC, PAL, 720p, 1080i, 1080p, 1080PsF, 2160p (Ultra HD)

• Audio Formats: Uncompressed PCM, AAC

• Disk Formats: ExFAT (Windows), HFS+ (Mac)

• Proxy Files: H.265 HD proxy with sync-to-cloud capabilities

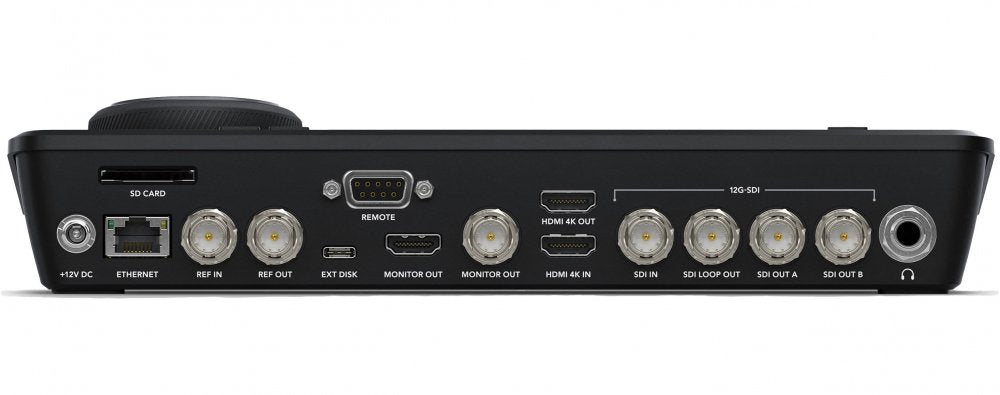

INPUTS/OUTPUTS:

• Video Inputs: 12G-SDI, HDMI 4K

• Video Outputs: 12G-SDI, HDMI 4K

• Audio Inputs/Outputs: Embedded via SDI/HDMI

• Control: Ethernet for remote control, Telnet, REST API

• USB-C: Expansion port for external recording or software updates

• Storage Slots: Internal M.2 slot, SD card slot (supports SD/UHS-II)

CONNECTIVITY:

• Network: 10G Ethernet

• Control Protocols: Text-based via Telnet, REST API

• Web Interface: HTTP/S and FTP for file transfer

MONITORING & SCOPES:

• Built-In Scopes: Waveform, Vectorscope, RGB parade, YUV parade, Histogram

• Scope Modes: Overlay or picture-in-picture

• HDR Support: Yes, with PQ and HLG formats (ST2084), Rec. 2020, Rec. 709, DCI-P3 gamut

METADATA & AUTOMATION:

• Digital Slate: Swipe-activated, auto-incrementing take and reel numbers

• Metadata Integration: Compatible with DaVinci Resolve

• Automation: Broadcast automation via Ethernet

POWER:

• Input: 12V DC

• Power Supply: Included
