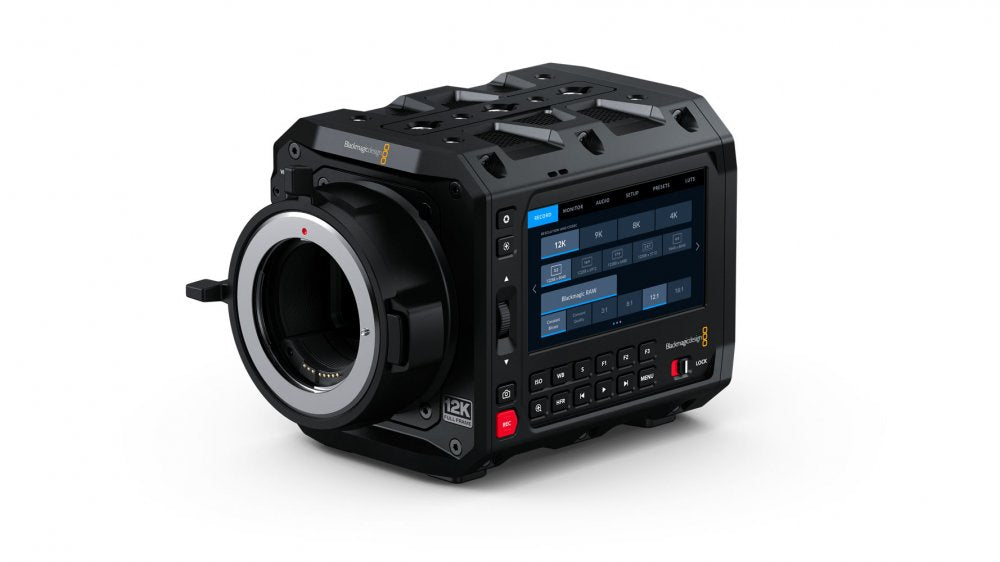

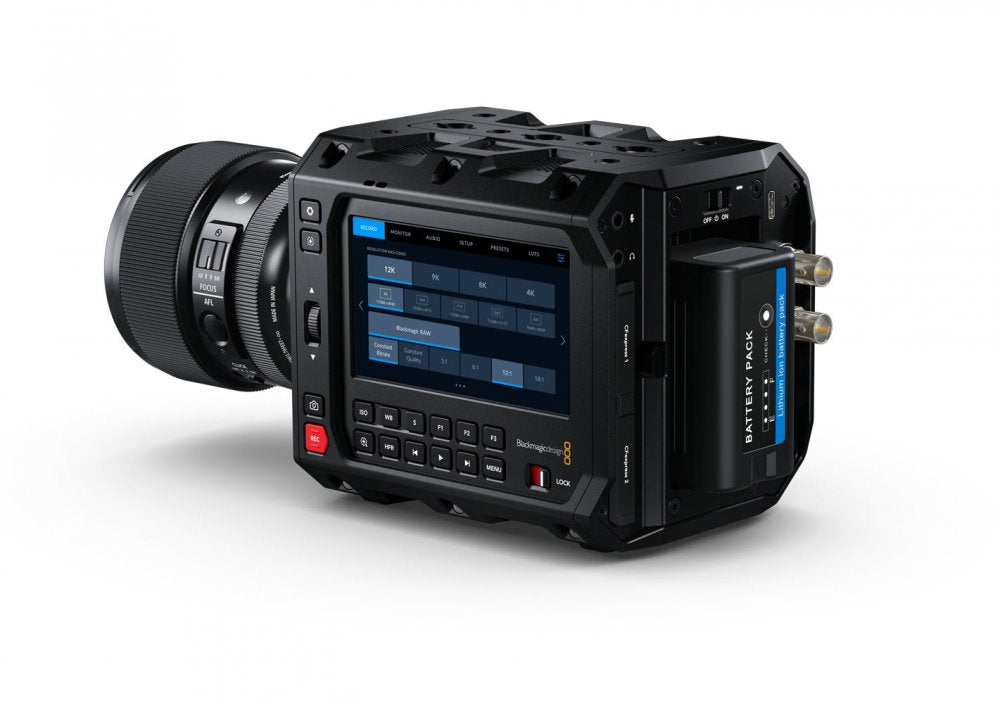

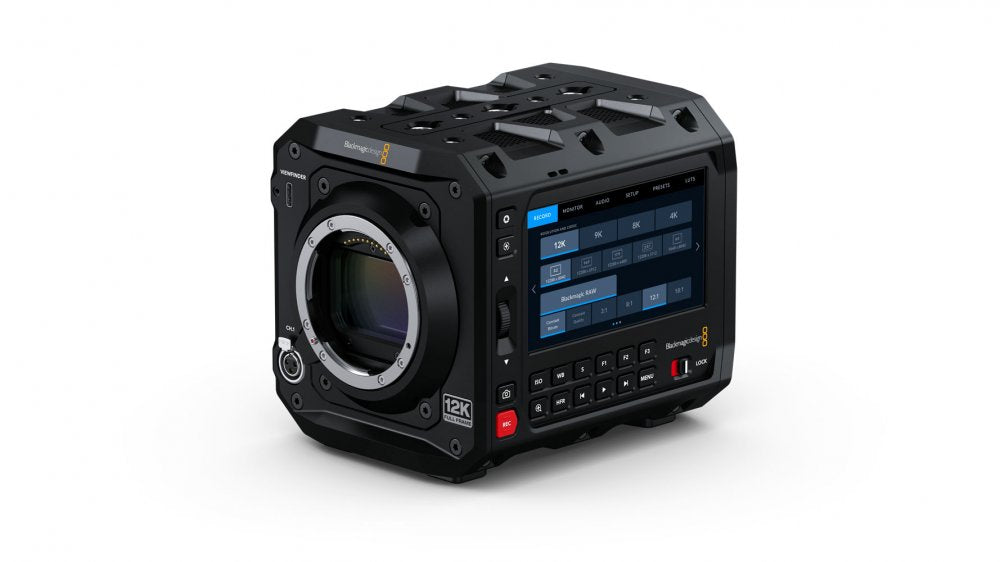

Blackmagic Design PYXIS 12K camera

The Blackmagic PYXIS 12K in L-Mount format is a cutting-edge digital film camera designed for creatives who demand cinematic image quality and versatile lens compatibility. Housing the same full frame 12K RGBW sensor as the URSA Cine 12K LF, this model delivers a native resolution of 12288 x 8040, with a dynamic range of 16 stops for stunning detail and depth. Its open gate 3:2 capture mode, ability to shoot true 6:5 anamorphic without cropping, and support for 12K, 8K, and 4K resolutions give filmmakers unprecedented creative flexibility. Thanks to the native L-Mount, this camera works seamlessly with full frame lenses from Leica, Panasonic, and Sigma, and also supports a wide variety of adapters-making it ideal for both modern and vintage glass.

Crafted from precision CNC-machined aerospace aluminum, the PYXIS 12K is rugged yet lightweight, perfect for drone, gimbal, or handheld work. Multiple mounting points, dual CFexpress recorders, and the ability to hot swap cards during shooting make it ready for any fast-paced set. It features a 4" HDR touchscreen for on-set monitoring, while the optional 5" PYXIS Monitor and URSA Cine EVF expand flexibility further. Built-in Blackmagic Cloud support and high-speed 10G Ethernet or mobile data streaming mean your footage can be reviewed and edited anywhere in real time. Whether you're on a tight indie shoot or a high-end commercial set, the Blackmagic PYXIS 12K (L-Mount) offers a cinematic powerhouse in a modular, accessible design.

• Full Frame 12K Sensor

• Captures stunning 12K images using a large 36 x 24mm RGBW sensor with exceptional dynamic range.

• L-Mount Lens Compatibility

• Works natively with modern full frame L-Mount lenses from Leica, Panasonic, and Sigma, and supports adapters for added versatility.

• Modular, Lightweight Design

• Made from aerospace aluminum with multiple mounting points for easy rigging to gimbals, drones, cranes, and accessories.

• Built-In 4" HDR Touchscreen

• Lets you monitor, frame, and review shots in high resolution without the need for an external monitor.

• Blackmagic RAW + H.264 Proxies

• Records in high-quality RAW for post-production flexibility, while also creating proxies for quick sharing.

• Dual CFexpress Card Slots

• Allows fast, durable, and high-capacity recording with support for hot swapping cards during shoots.

• Direct Cloud Upload with Blackmagic Cloud

• Automatically uploads proxy footage in real time, enabling remote editing from anywhere in the world.

• 10G Ethernet & USB-C Mobile Data

• Supports wired and mobile internet for live streaming or remote media sync during shooting.

• Optional External Accessories

• Supports Blackmagic PYXIS Monitor and URSA Cine EVF for enhanced monitoring and control flexibility.

• Advanced Streaming Built-In

• Stream directly to platforms like YouTube and Facebook with built-in RTMP/SRT functionality.

• Flexible Shooting Formats

• Record in 12K, 8K, 6K, 4K, and HD using the full sensor area or cropped windows for creative framing.

• Professional Audio Support

• Includes mini XLR input with phantom power for high-quality sound capture.

• Global Sync & Collaboration

• Sync footage globally via Blackmagic Cloud and DaVinci Resolve for real-time collaborative workflows.

GENERAL SPECIFICATIONS:

• 36 x 24mm full-frame RGBW CMOS sensor

• Maximum resolution: 12288 x 8040 (12K)

• Sensor aspect ratios: 3:2 (open gate), 6:5 anamorphic, Super 35 crop (9K)

• 16 stops dynamic range

• CNC machined aerospace aluminum body

• Mounting: L-Mount (compatible with Leica, Panasonic, Sigma full-frame lenses)

• Lens adapter support for expanded lens compatibility

RECORDING FORMATS:

• Blackmagic RAW at full 12-bit resolution

• Simultaneous H.264 proxy recording

• Resolutions: HD, DCI 4K, 6K, 8K, 12K

• Frame rates: 12K (12288 x 8040) at 40 fps (3:2 open gate), 12K (12288 x 5112) at 60 fps (2.4:1), 8K and 6K various cropped modes, 4K (4096 x 2160) at 112 fps

DISPLAY AND MONITORING:

• Built-in 4″ HDR LCD touchscreen, 1500 nit brightness, Full HD resolution

• Optional Blackmagic PYXIS Monitor (5″ HDR touchscreen with full controls)

• Optional URSA Cine EVF with 1920 x 1080 OLED and 4-element glass diopter

• 12G-SDI output for HDR and Ultra HD monitoring

• Status overlay support on SDI output

MEDIA AND CONNECTIVITY:

• Dual CFexpress Type B card slots (hot-swappable)

• USB-C expansion port for external SSD or mobile connection

• 10G Ethernet for high-speed wired data transfer

• USB-C mobile data support via iOS/Android phones

• Blackmagic Cloud support for global sync and real-time proxy uploads

STREAMING & REMOTE WORKFLOW:

• Built-in hardware streaming engine

• Supports RTMP and SRT protocols

• Direct streaming to YouTube, Facebook, X (Twitter), and more

• Stream status and data rate display in LCD and EVF

AUDIO:

• 1x professional mini XLR input with 48V phantom power

• Built-in microphone

• Additional 3.5mm stereo input

POWER:

• Compatible with high-capacity BP-U series batteries

• DC input via locking connector

RIGGING AND EXPANDABILITY:

• Multiple 1/4″ and 3/8″ thread mounts (top, bottom, sides)

• Includes side plates with accessory thread mounts

• SSD mount plate included for USB-C SSDs or smartphones

INCLUDED ACCESSORIES:

• Standard side plate (aluminum, threaded)

• SSD mounting plate

• Power supply

• L-Mount body cap
