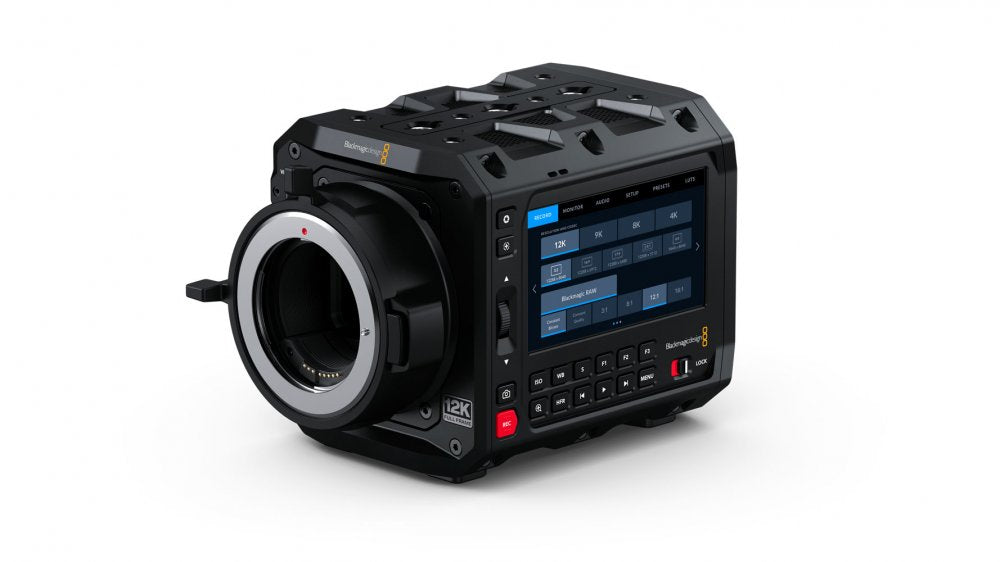

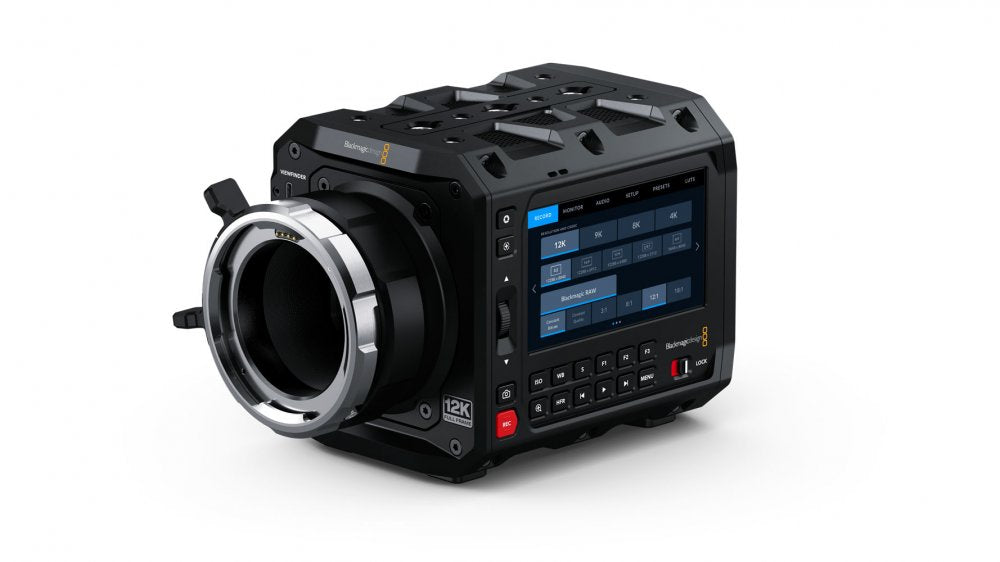

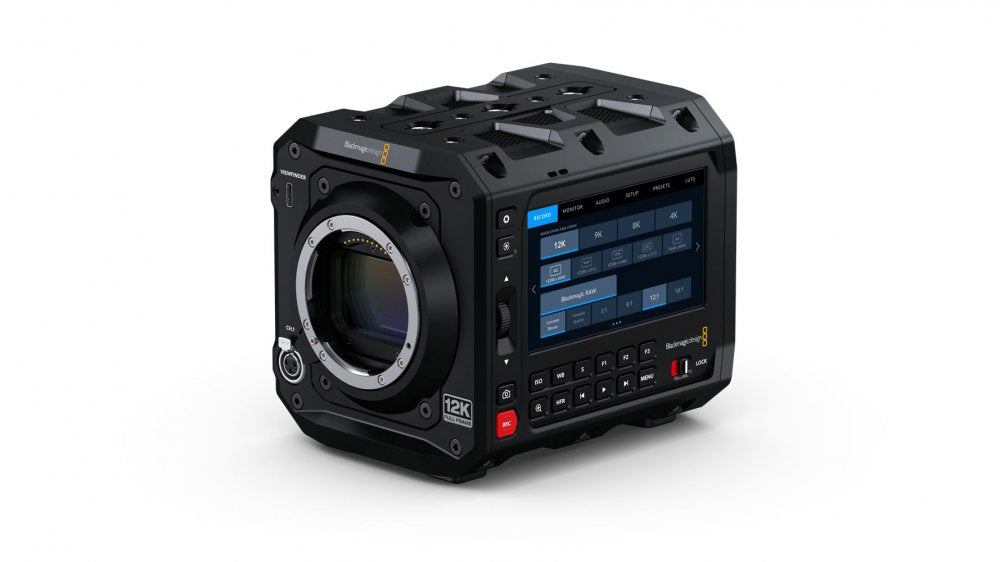

Blackmagic Design PYXIS 12K PL camera

The Blackmagic PYXIS 12K in PL mount configuration is engineered for high-end cinematographers who demand uncompromising image quality paired with the flexibility of professional cinema lenses. Featuring a 36 x 24mm full frame 12K RGBW sensor, this camera captures exquisite detail at resolutions up to 12288 x 8040, with a wide 16 stops of dynamic range that ensures rich tonal depth and vibrant color fidelity. The PL mount offers robust support for top-tier lenses from ARRI, Zeiss, Cooke, and other renowned manufacturers, giving DPs the creative freedom to work with the industry's most advanced optical systems. Whether you're capturing open gate 3:2 for full-sensor cinematic framing or shooting true anamorphic in 6:5 without cropping, the PYXIS 12K delivers the flexibility and fidelity demanded by major productions.

Crafted from aerospace-grade CNC-machined aluminum, the PYXIS is both lightweight and rugged, ready for the demands of professional sets, whether mounted on a Steadicam, drone, or studio rig. Dual CFexpress slots enable uninterrupted recording in Blackmagic RAW, while the USB-C port allows for external SSD or mobile data streaming to Blackmagic Cloud. The camera's built-in 4" HDR LCD is perfect for framing, reviewing, and managing settings, with additional options like the 5" PYXIS Monitor and URSA Cine EVF offering extended on-set control. Designed for precision, modularity, and seamless integration into cinematic workflows, the PYXIS 12K PL mount is an exceptional tool for feature films, commercials, and any production where lens quality and sensor performance are paramount.

• 12K Full Frame RGBW Sensor: Delivers ultra-high-resolution cinematic images with exceptional depth, detail, and dynamic range.

• Native PL Mount: Supports industry-standard cinema lenses from ARRI, Cooke, Zeiss, and more - no adapter needed.

• Customizable Riggable Body: Strong yet lightweight aluminum design with side plates and multiple mounts for flexible rigging.

• 4" HDR Touchscreen Display: High-resolution built-in screen for framing, focus checks, and full camera control on set.

• RAW + Proxy Dual Recording: Records Blackmagic RAW for full post-production flexibility and H.264 proxies for quick sharing.

• Dual CFexpress Slots: Enables reliable, fast, and hot-swappable recording with support for extended shoot durations.

• Real-Time Cloud Workflow: Instantly uploads proxies to Blackmagic Cloud for remote collaboration and immediate access in DaVinci Resolve.

• Mobile and Wired Internet Options: Connect via 10G Ethernet or plug in a smartphone to stream or upload using mobile data.

• Expandable Monitoring Tools: Supports the Blackmagic PYXIS Monitor and URSA Cine EVF for more precise shooting setups.

• Built-In Streaming Capability: Live stream directly from the camera using integrated RTMP/SRT to platforms like YouTube and Facebook.

• Flexible Resolution Options: Shoot in 12K, 8K, 6K, 4K, or HD using the full sensor or cropped windows for creative control.

• Professional Audio Input: Equipped with a mini XLR input with phantom power for high-quality sound recording.

• Seamless Global Sync: Stay connected with production teams worldwide through real-time sync via Blackmagic Cloud.

GENERAL SPECIFICATIONS:

• 36 x 24mm full-frame RGBW CMOS sensor

• Maximum resolution: 12288 x 8040 (12K)

• Aspect ratios supported: 3:2 open gate, 6:5 full-height anamorphic, Super 35 crop (9K)

• 16 stops of dynamic range

• Precision CNC-machined aerospace aluminum body

• Mounting: PL Mount (locking mechanism, compatible with professional cinema lenses)

• Direct support for ARRI, Zeiss, Cooke, and other industry-standard PL lenses

• Electronic lens metadata support (where compatible)

RECORDING FORMATS:

• Blackmagic RAW at full 12-bit quality

• Real-time simultaneous H.264 proxy recording

• Recordable resolutions: HD, 4K, 6K, 8K, 12K

• Frame rate options: 12K (12288 x 8040) up to 40 fps (3:2 open gate), 12K (12288 x 5112) up to 60 fps (2.4:1), 4K (4096 x 2160) up to 112 fps, 6K (6048 x 4032) up to 36 fps

DISPLAY AND MONITORING:

• Integrated 4″ HDR touchscreen LCD, Full HD resolution, 1500 nit brightness

• Optional Blackmagic PYXIS Monitor (5″ HDR touchscreen with full camera control)

• Optional Blackmagic URSA Cine EVF with 1920 x 1080 OLED and glass diopter

• 12G-SDI video output with HDR/UHD monitoring and camera status overlays

MEDIA AND CONNECTIVITY:

• Dual CFexpress Type B card slots (hot-swappable)

• USB-C port for external SSD/media expansion or mobile tethering

• Built-in 10G Ethernet for high-speed file transfer and Blackmagic Cloud sync

• Mobile internet support via USB-C (iOS/Android phones)

STREAMING & REMOTE WORKFLOW:

• Integrated hardware streaming (RTMP/SRT)

• Direct streaming to YouTube, Facebook, X, etc.

• Streaming stats and data rate displayed on-screen

AUDIO:

• 1x mini XLR input with 48V phantom power

• Built-in microphone

• 3.5mm stereo audio input

POWER:

• Compatible with Sony BP-U series high-capacity batteries

• Locking DC power input

RIGGING AND EXPANDABILITY:

• Multiple 1/4″ and 3/8″ thread mounts (top, bottom, sides)

• Standard aluminum side plate with threaded mounts included

• SSD side plate for mounting USB-C drives or phones included

INCLUDED ACCESSORIES:

• PL mount body cap

• Aluminum side plate

• SSD mounting plate
