Blackmagic Design SmartScope Duo 4K 2

Intelligent SDI monitoring with broadcast quality scopes! When you need high quality SDI monitoring, SmartView monitors are the perfect solution! SmartView monitors are extremely thin and lightweight, so are perfect for both broadcast and portable use, and automatically switch between SD, HD and 3G-SDI video formats. There are 2 great models; SmartView Duo has 2 independent 8 inch displays and SmartScope Duo 4K adds the flexibility of built in waveform monitoring that can be assigned to either of its 8 inch displays!

Perfect SDI Monitoring SmartView monitors are the perfect choice to add SDI monitoring anywhere you need it. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more! When you're working with live production switchers you can build a video wall of camera monitors in your control room and see all your sources. You can mix and match different SmartView models in a rack for a customized monitoring solution where you can view your images and choice of scope displays side by side!

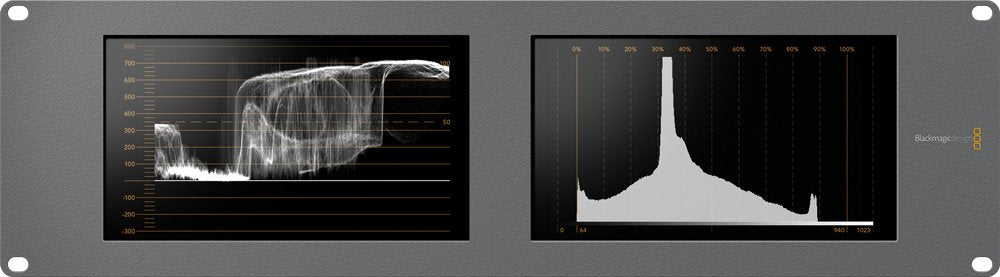

SmartScope Duo 4K The SmartScope Duo 4K model includes built in waveform monitoring when you need to analyze image quality more accurately than simply looking at the picture! You get seven of the most popular scopes most widely used in broadcast and post production facilities. Scope displays include waveform, vectorscope, RGB parade, YUV parade, histogram, audio phase and level scopes, and of course you can simply select to view the video itself! Now you don't have to guess what your video and audio levels are, you can monitor them with precision using SmartScope Duo 4K!

Perfect Monitoring SmartView monitors are ideal for high end broadcast monitoring because they feature high quality filtering and scaling, so you retain fine detail in the image. The fully digital design with high quality SDI inputs ensures precise color that's easy to manage across multiple displays. SmartView includes ethernet so you can connect them to your network and centrally control all your monitors from a single computer using the SmartView software utility. SmartView also includes integrated tally that is fully compatible with many switchers or automation systems.

Accurate Waveform Monitoring! When you need to analyze image quality more accurately than simply looking at the picture then use SmartScope Duo 4K's built in waveform monitoring! You can view two independent sources simultaneously and conveniently switch between monitoring or scope views whenever you need! Choose from waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. SmartScope Duo 4K removes the need for separate expensive scopes!

Ultra Thin Design SmartView monitors feature an elegant front panel that is designed to allow multiple SmartView Duo and SmartScope Duo 4K models to be mounted next to each other to create a beautiful wall of monitors that share the same appearance and width! Lightweight and ultra thin, SmartView is perfect for broadcast trucks and fly away kits! When you need to mount SmartView in the extreme top or bottom of an equipment rack, the units can be rotated upside down and the images will automatically flip to provide the optimum viewing angle!

• Select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase with audio level displays

• Each SmartScope Duo 4K display is independent so you can monitor any combination of scope or picture view

• Automatically switches between SD, HD and 6G-SDI

• Reclocked loop through output

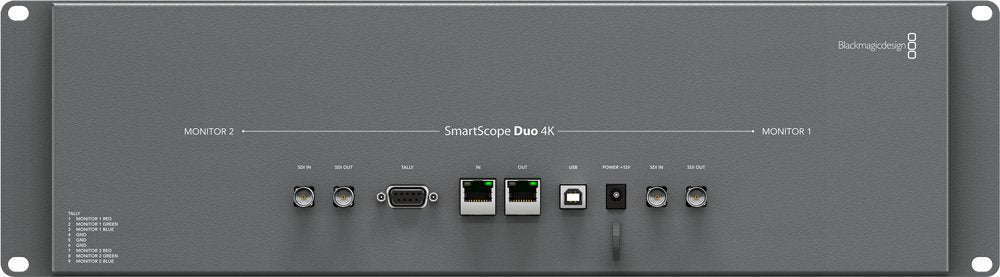

CONNECTIONS:

SDI VIDEO INPUT:

Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.

SDI VIDEO OUTPUT:

1 x 10 bit loop through SD, HD and

6G-SDI switchable.

SDI AUDIO INPUT:

16 channels embedded in SD, HD and UHD.

SDI AUDIO OUTPUT:

16 channels embedded in SD, HD and UHD.

MULTI RATE SUPPORT:

Standard definition SDI, high definition SDI and 6G-SDI.

TALLY:

9-pin D connector

WHAT'S INCLUDED:

SmartScope Duo 4K

Power Supply

Welcome wallet with QR code for software download
