Blackmagic Design Ultimatte 12 8K

The all new Ultimatte 12 is more than the world's best keyer, it's an advanced real time compositing processor designed for the next generation of broadcast graphics. Ultimatte 12 features entirely new algorithms and color science that deliver true photorealistic composites. You get incredible edge handling, greater color separation, amazing color fidelity and better spill suppression than ever before, even in dark shadow areas or through transparent objects such as windows! Ultimatte 12 is available in 4 amazing models, with HD, Ultra HD and even native 8K support! Imagine presenting the weather, sports, news and entertainment in a cinematic quality environment, all composited in real time.

Add an Ultimatte 12 to Each Camera! When you're working live with multiple cameras shooting from different angles, it's common for the green screens to suffer from variations. Plus the keyers built into live production switchers often have to be shared between cameras, which complicates keying because each camera sees the green screen a little differently. The new Ultimatte 12 eliminates these problems because you get incredible technology at an affordable price, allowing each camera to have a separate Ultimatte. That means each Ultimatte can be tuned to a specific camera's view! With a dedicated Ultimatte on each camera, your compositions can go well beyond what's possible with set design, so you can create whole new worlds!

Generate Live Virtual Environments for Broadcast! Whether you're working in broadcast news, sports, film production, or magazine style entertainment programming, Ultimatte 12 has the quality for incredibly life like composites that place your talent into any scene! Plus the new Ultimatte 12 models include built in frame stores so you don't need live video sources for all inputs. You can also use Ultimatte 12 to layer computer generated augmented reality foreground objects into a scene, complete with realistic transparency that your talent can walk behind! Ultimatte 12 is also perfect for on set pre visualization in film production because it lets actors and directors watch the scene while they're shooting.

Ultimatte 12 8K is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 8K features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance Quad Link 12G-SDI design gives you the power to work in HD, Ultra HD and incredible 8K with sub pixel processing for an amazing image.

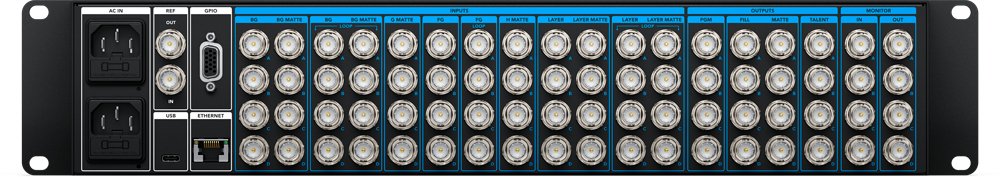

CONNECTIONS:

SDI Video Inputs: 32

SDI Video Outputs: 20

SDI Video Loop Outputs: 20

reclocked SD, HD, Ultra HD, 8K for corresponding inputs.

SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.

Video Input Re-Sync: On all inputs.

Reference Connections:

1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

GPIO: DE15

Ethernet: Up to 10Gb/s for device control and loading stills into Media Pool.

Computer Interface: 1 x USB-C 3.0 for device configuration and software updates.

STANDARDS:

SD VIDEO STANDARDS:

525i59.94 NTSC, 625i50 PAL

HD VIDEO STANDARDS:

720p50, 720p59.94, 720p60

1080i50, 1080i59.94, 1080i60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

ULTRA HD VIDEO STANDARDS:

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

8K VIDEO STANDARDS:

4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60

SDI COMPLIANCE:

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2081-12, SMPTE 2082-11 and SMPTE 2082-12.

VIDEO SAMPLING:

4:2:2

COLOR PRECISION:

10-bit

COLOR SPACE:

REC 601, REC 709, REC 2020.

MULTIPLE RATE SUPPORT:

Auto detection of SD, HD, 6G'SDI, 12G-SDI, 2SI Quad Link 12G'SDI, 2SI Dual Link 12G'SDI and 2SI Quad Link 6G'SDI.

COMPOSITE SOURCES:

FOREGROUND:

4 x 12G-SDI In with Loop Out

BACKGROUND:

4 x 12G-SDI In with Loop Out

Still from Media Pool

BACKGROUND MATTE:

4 x 12G-SDI In with Loop Out

INTERNAL WINDOW:

Still from Media Pool

GARBAGE MATTE:

4 x 12G-SDI In

Internal Window

Still from Media Pool

HOLDOUT MATTE:

4 x 12G-SDI In

Internal Window

Still from Media Pool

LAYER:

4 x 12G-SDI In with Loop Out

Still from Media Pool

LAYER MATTE:

4 x 12G-SDI In with Loop Out

Internal Window

Still from Media Pool

COMPOSITE OUTPUTS:

FILL:

4 x 12G-SDI

MATTE:

4 x 12G-SDI

PROGRAM:

4 x 12G-SDI

TALENT:

4 x 12G-SDI

MONITOR:

MONITOR IN:

4 x 12G-SDI

for monitor cascade

MONITOR OUT:

4 x 12G-SDI

MEDIA POOL:

BACKGROUND STILL IMAGE FORMATS:

TGA, TIFF, BMP, PNG, JPG.

BACKGROUND WITH ALPHA STILL IMAGE FORMATS:

TGA, TIFF, BMP.

LAYER IMAGE STILL IMAGE FORMATS:

TGA, TIFF, BMP, PNG, JPG.

LAYER WITH ALPHA STILL IMAGE FORMATS:

TGA, TIFF, BMP.

GARBAGE MATTE STILL IMAGE FORMATS:

TIFF, BMP, PNG, JPG.

HOLDOUT MATTE STILL IMAGE FORMATS:

TIFF, BMP, PNG, JPG.

MEDIA POOL MEMORY:

6GB non-volatile internal storage.

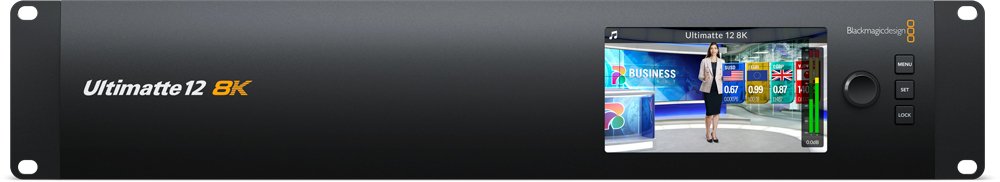

DISPLAYS:

Built in 5 inch color display for device name, video preview, audio meters and menus.

CONTROL:

FRONT PANEL:

5 inch color display with 3 menu buttons and spin knob.

CONTROL CONNECTION:

Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.

SOFTWARE CONTROL:

Ultimatte Software Control

supported on Mac™ or Windows™ computers.

HARDWARE CONTROL PANEL:

Ultimatte Smart Remote 4

SOFTWARE:

SOFTWARE UPDATES:

Using USB'C or Ethernet connection to Mac™ or Windows™ computers.

CONFIGURATION:

Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.

OPERATING SYSTEMS:

Mac 11.0 Big Sur,

Mac 12.0 Monterey or later.

Windows 10, 64-bit.

Windows 11.

POWER REQUIREMENTS:

POWER SUPPLY:

2 x Internal 100-240V AC, 50/60Hz

POWER USAGE:

218W

ACCESSORIES:

Optional Accessories

Ultimatte Smart Remote 4

PHYSICAL INSTALLATION:

2 rack units height.

WHAT'S INCLUDED:

Ultimatte 12 8K

Welcome wallet with QR code for software download
