Obsbot Tail 2

The OBSBOT Tail 2, an AI-powered PTZR (Pan, Tilt, Zoom, Rotate) 4K live production camera designed to revolutionize video creation. This advanced camera features a three-axis gimbal system that enables seamless transitions between landscape and portrait modes, making it easy to adapt to different shooting scenarios. With AI Tracking 2.0 technology, it offers precise subject tracking, recognizing over 30 types of animals and 200 different objects. Whether capturing fast-moving action or engaging in hands-free content creation, the Tail 2 delivers smooth and professional results.

The OBSBOT Tail 2 is equipped with a 1/1.5-inch CMOS sensor and a high-quality 12-element optical lens system, producing stunningly clear 4K footage at 60 frames per second and 1080p at 120 frames per second. Its 5x optical zoom and 12x hybrid zoom capabilities allow users to capture subjects with exceptional detail, while Auto Zoom and customizable tracking speeds provide creative control over every shot. Designed for both solo creators and professional teams, the Tail 2 offers a wide range of connectivity options, including HDMI, SDI, Ethernet, and USB 3.0, ensuring seamless integration into any production setup.

• AI-Powered Performance: Built-in AI chip enables ultra-fast processing for smart tracking and enhanced functionality.

• High-Resolution Camera: Captures stunning 50MP images with a large CMOS sensor for superior clarity.

• Powerful Zoom & Autofocus: 5x optical zoom, 12x hybrid zoom, and both auto and manual focus for precise control.

• 4K Video Recording: Records in crisp 4K at up to 60fps, with multiple resolution and frame rate options.

• Advanced Gimbal Stabilization: 3-axis gimbal ensures smooth, shake-free footage with precise angle adjustments.

• Wi-Fi 6 & Bluetooth Connectivity: Fast wireless connections for seamless streaming and remote control.

• Multiple Input & Output Options: Includes HDMI, SDI, USB-C, Ethernet (PoE+), and 3.5mm audio ports for flexible connectivity.

• Long Battery Life: 5000mAh battery supports extended recording and quick charging via USB-C.

• Gesture Control & Smart Features: Hands-free operation with intuitive gesture controls and dedicated software support.

• Expandable Storage: Supports microSD cards up to 1TB for ample storage capacity.

• Durable & Versatile Design: Operates in various temperatures and adapts to different filming environments.

CAMERA:

• Image Sensor: 1/1.5'' CMOS

• Pixel Size: 2.0 μm - 2.0 μm

• Effective Pixels: 50 million

• Effective Pixel Resolution: 8192 - 6144

LENS SYSTEM:

• Optical Lenses: 12x Optical Lenses

• Zoom Range: 5x Optical Zoom, 12x Hybrid Zoom

• Aperture: f/1.8 - f/3.0

• Focus: Auto Focus, Manual Focus

• Equivalent Focal Length: 22 mm - 110 mm

FIELD OF VIEW:

• Wide (1x): FOV (D): 89, FOV (H): 81

• Telephoto (5x): FOV (D): 21, FOV (H): 18

IMAGE & EXPOSURE:

• ISO Range: 100 - 6400

• Exposure Value: ±3 EV

• Electronic Shutter Speed: 1/8000 s to the limit of frames per second

• White Balance: 2000K - 10000K

• Gyroscope: 6-axis Gyroscope

AI CHIP:

• Integrated AI chip with trillions of calculations per second

PHOTO & VIDEO RESOLUTION:

• Photo Resolution: 4K, 1080p, 720p

VIDEO RECORDING:

• 4K: 3840 - 2160 @ 60/59.94/50/48/30/29.97/25/23.98 fps

• 1080p: 1920 - 1080 @ 120/60/59.94/50/48/30/29.97/25/23.98 fps

• 720p: 1280 - 720 @ 120/60/59.94/50/48/30/29.97/25/23.98 fps

HDMI OUTPUT:

• 4K: 3840 - 2160 @ 60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps

• 1080p: 1920 - 1080 @ 60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps

• 1080i: 1920 - 1080i @ 60/59.94/50 fps

• 720p: 1280 - 720 @ 60/59.94/50 fps

SDI OUTPUT:

• 1080p: 1920 - 1080 @ 60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps

• 1080i: 1920 - 1080i @ 60/59.94/50 fps

• 1080PsF: 1920 - 1080PsF @ 30/29.97/25 fps

• 720p: 1280 - 720 @ 60/59.94/50 fps

VIDEO STORAGE:

• Max Video Storage Bitrate: H.264: 160 Mbps, H.265: 160 Mbps

• Supported File System: FAT32, exFAT

• Video Format: MJPEG, H.264, H.265

3-AXIS GIMBAL:

• Gimbal Installation: Non-removable

• Controllable Range: Pan: ±160, Tilt: -60 to 32, Roll: -120 to 120

• Mechanical Range: Pan: ±175, Tilt: ±90, Roll: -135 to 135

• Max Controllable Speed: 120/s

• Angle Jitter: ±0.003

WIRELESS CONNECTIVITY:

• Wi-Fi Standard: Wi-Fi 6

• Wi-Fi Operating Frequency: 2.4 GHz / 5.8 GHz

• Wi-Fi Signal Transmission Range: 2.4G: 140m, 5.8G: 80m

• Wi-Fi Protocol: 802.11 a/b/g/n/ac/ax

• Bluetooth Protocol: BLE 5.4

• Bluetooth Frequency Range: 2.400 GHz - 2.4835 GHz

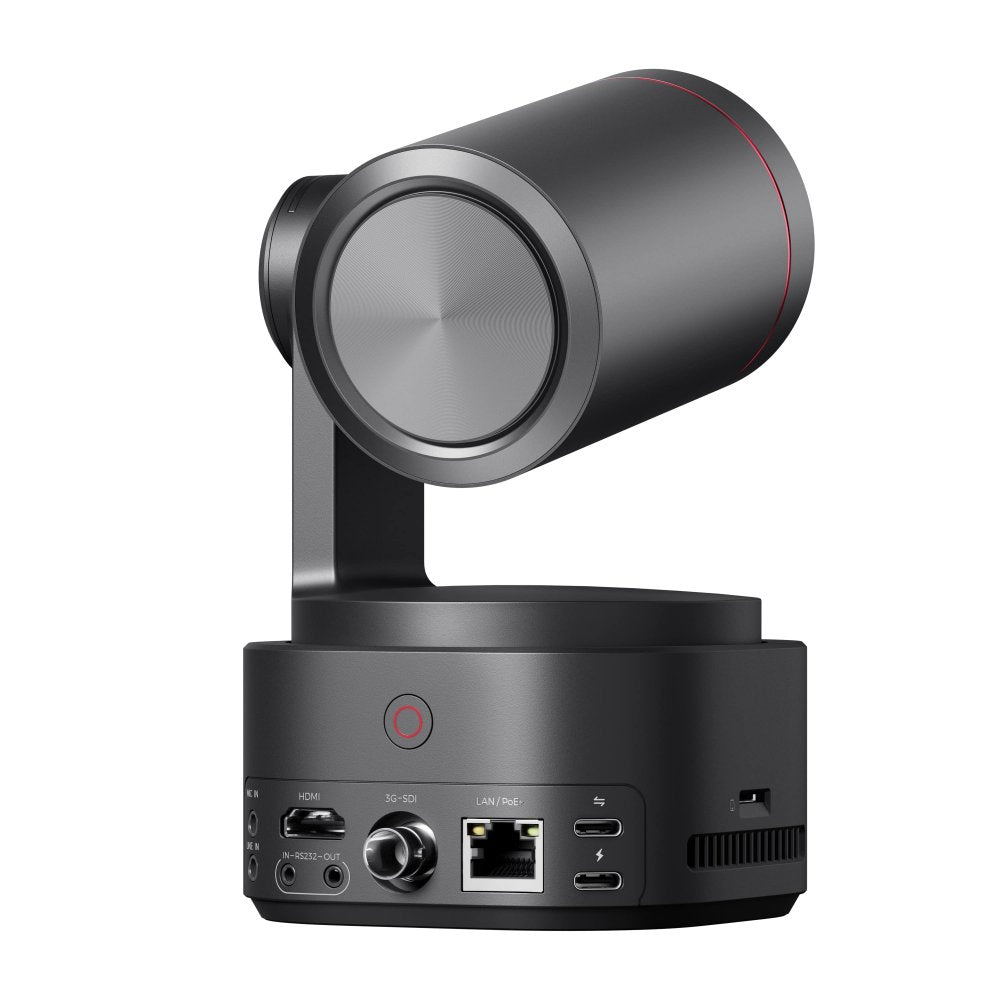

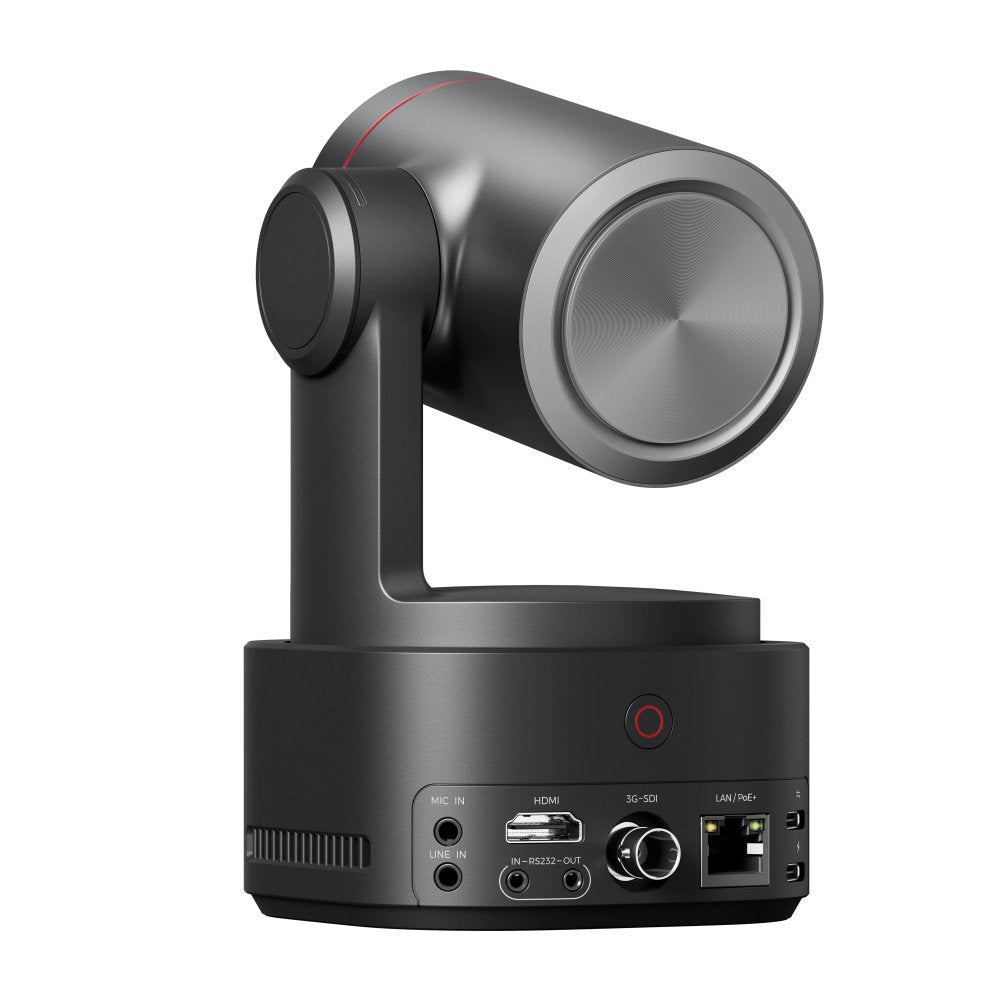

I/O INTERFACES:

• Power Input: USB-C (Default 5V/2A, supports USB PD3.0 fast charging, Max Input Voltage: 20V, Max Input Current: 2A), PoE+ (IEEE 802.3 af/at, Max Input Power: 30W)

• Video Interface: 1 - HDMI 2.0, 1 - 3G-SDI, 1 - USB-C 3.0

• Network Interface: 1 - RJ45 10/100/1000 Mbps Ethernet (with PoE+)

• Audio Interface: 1 - MIC IN (3.5mm), 1 - LINE IN (3.5mm)

• Control Interface: 1 - 2.5mm RS232 Input (VISCA / Pelco-D / Pelco-P), 1 - 2.5mm RS232 Output (VISCA / Pelco-D / Pelco-P), 1 - USB-C 3.0 (UVC)

BATTERY:

• Type: Lithium Polymer (Li-Po)

• Capacity: 5000 mAh

• Energy: 38 Wh

• Voltage: 7.6V

• Operating Time: 343 minutes (1080p/30fps continuous recording)

• Charging Time: 150 mins (when powered off)

AUXILIARY FUNCTIONS & SOFTWARE:

• Gesture Control: Yes

• Auxiliary Software: Obsbot Start, OBSBOT Center, Obsbot Live

STORAGE:

• Memory Card Type: MicroSD (Max Support: 1TB)

OPERATING ENVIRONMENT:

• Camera Working Temperature: -10C to 40C

• Battery Charging Temperature: -10C to 40C

• Battery Operating Temperature: -10C to 40C

• Charging Protection: Charging stops if battery temperature exceeds 45C, device will switch to external power supply

SIZE & WEIGHT:

• Working State: 97.5 - 103.5 - 155 mm

• Off State: 97.5 - 103.5 - 172 mm

• Weight: 1.066 kg
