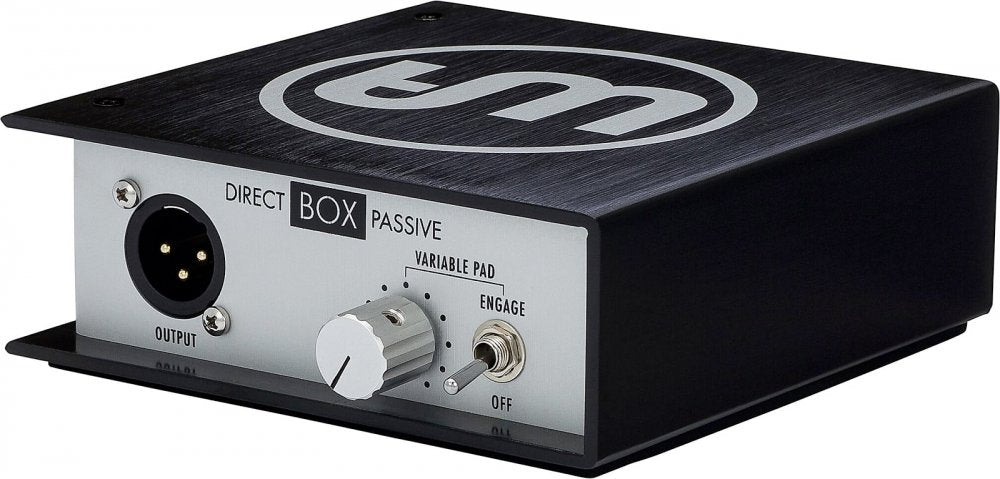

Warm Audio WA-DI-P

Warm Audio DI boxes offer the rare versatility of having an onboard variable pad knob which attenuates your input signal all the way from -3dB to -30dB, which will easily tame any instrument input source.

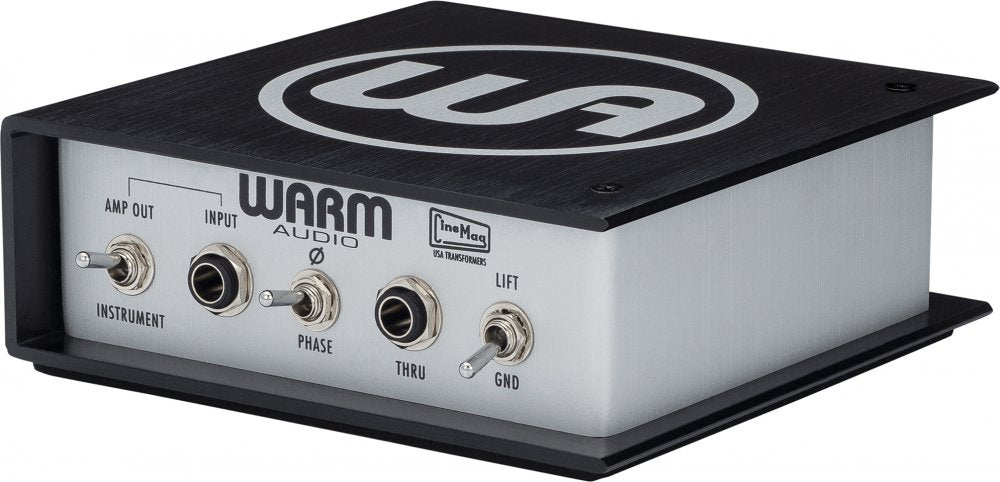

Both of our Direct Boxes (active or passive) offer a Thru-put jack that is jumpered to the input jack. It is a convenience jack allowing you to send your instrument's signal to a second place in addition to the live mixer or recording device. Our Direct Boxes can also take a recorded signal at line level and send it to another line input while simultaneously sending signal out of the XLR mic level output of the Direct Box. Typical Applications For A DI Box Connecting electronic instruments such as guitar, bass, keyboard, or drum machines directly to a PA or recording system. Simply put, a DI box converts the high impedance, unbalanced output signals to low impedance, balanced output signals. By doing so, the instrument signals are now converted to the proper voltage level for the PA or recording system - which greatly reduces and/or eliminates connections which could cause tonal shifts and distortion.

Passive Or Active Direct Box Active is best for instruments with passive pickups, especially acoustic instruments. The Direct Box Active can also operate in "passive" mode. Direct Box Passive is best for balancing the signal of instruments with active electronics, but still performs extremely well on passive pickups by producing a frequency range that exceeds the bandwidth of most passive DI boxes on the market.

• CUSTOM-WOUND CINEMAG USA OUTPUT TRANSFORMER

• CONVERTS INSTRUMENTS TO MIC-LEVEL SIGNALS WITHOUT SIGNAL DEGRADATION

• IDEAL SOLUTION FOR PLUGGING YOUR INSTRUMENT DIRECT INTO ANY MIC PRE

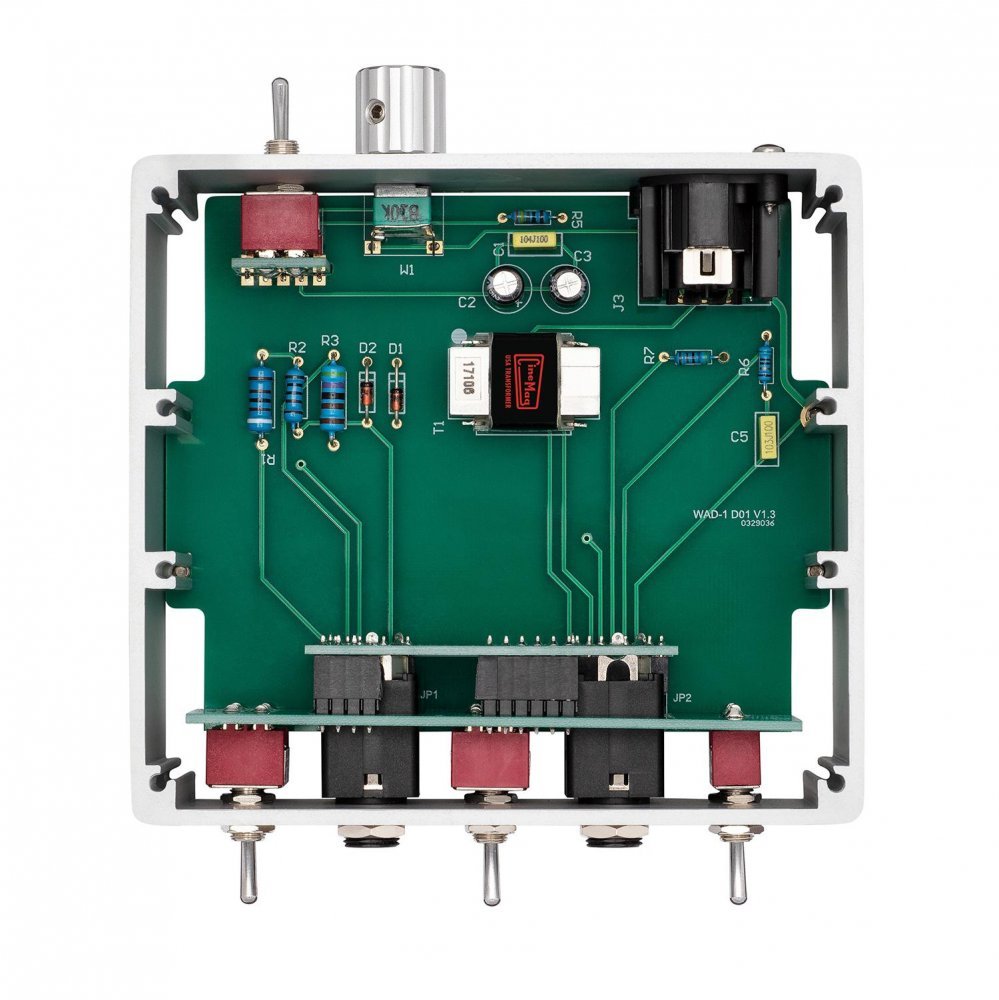

• TOP-QUALITY CLASS A COMPONENTS WITH GOLD-PLATED TRACES ON CIRCUIT BOARD

• RUGGED ALUMINUM CONSTRUCTION

• PAD: VARIABLE FROM -3DB TO -30DB

• BALANCED OUTPUTS: 600 OHMS, MIC LEVEL

• INPUT IMPEDANCE: 1 MEG OHMS

• THD: .01% FROM 20HZ TO 100HZ. LESS THAN .004% FROM 100HZ TO 20KHZ

• FREQUENCY RESPONSE: 20HZ TO 70KHZ +/- 0.5DB
