Waves DSPro StageGrid 4000

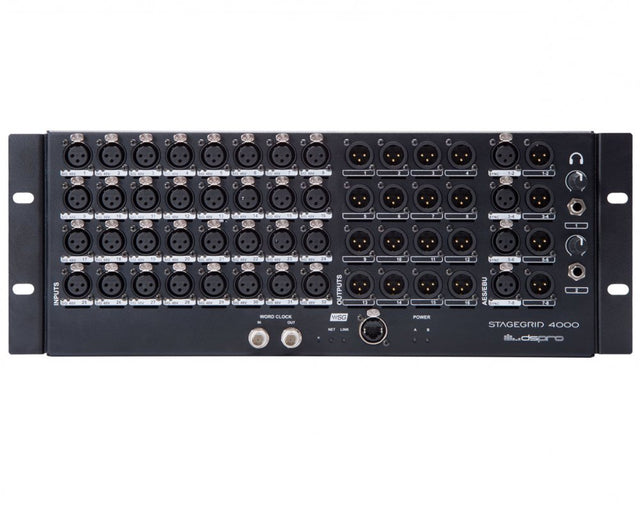

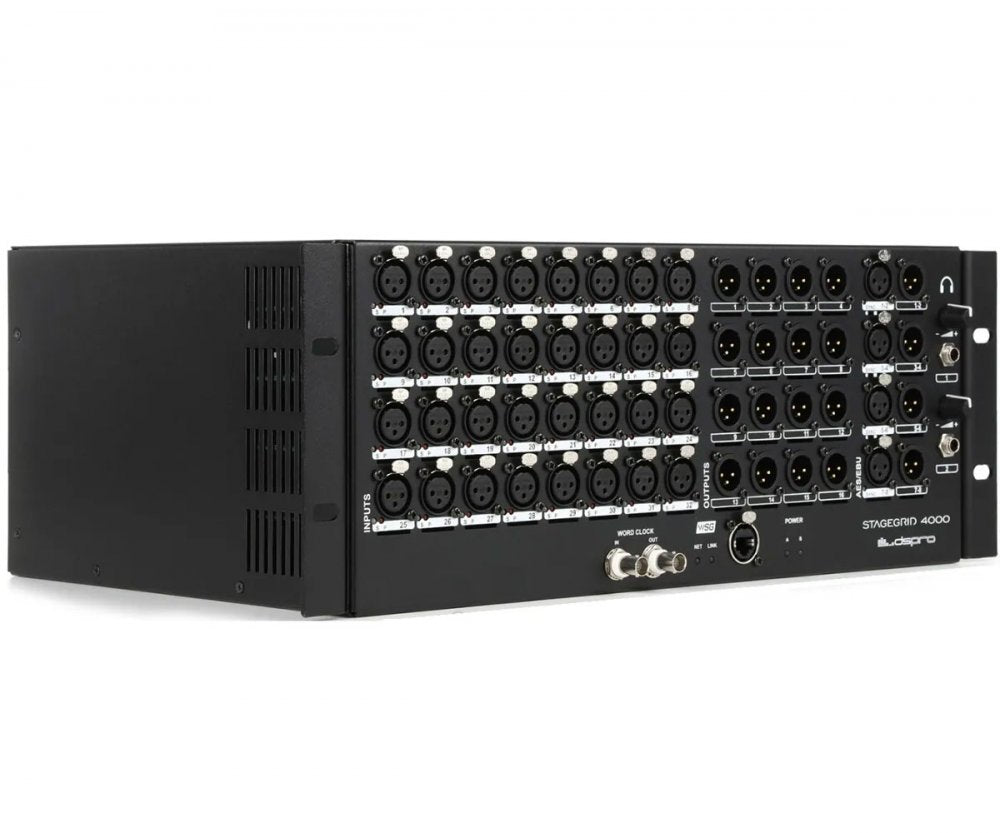

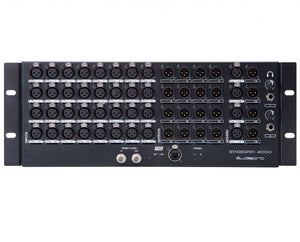

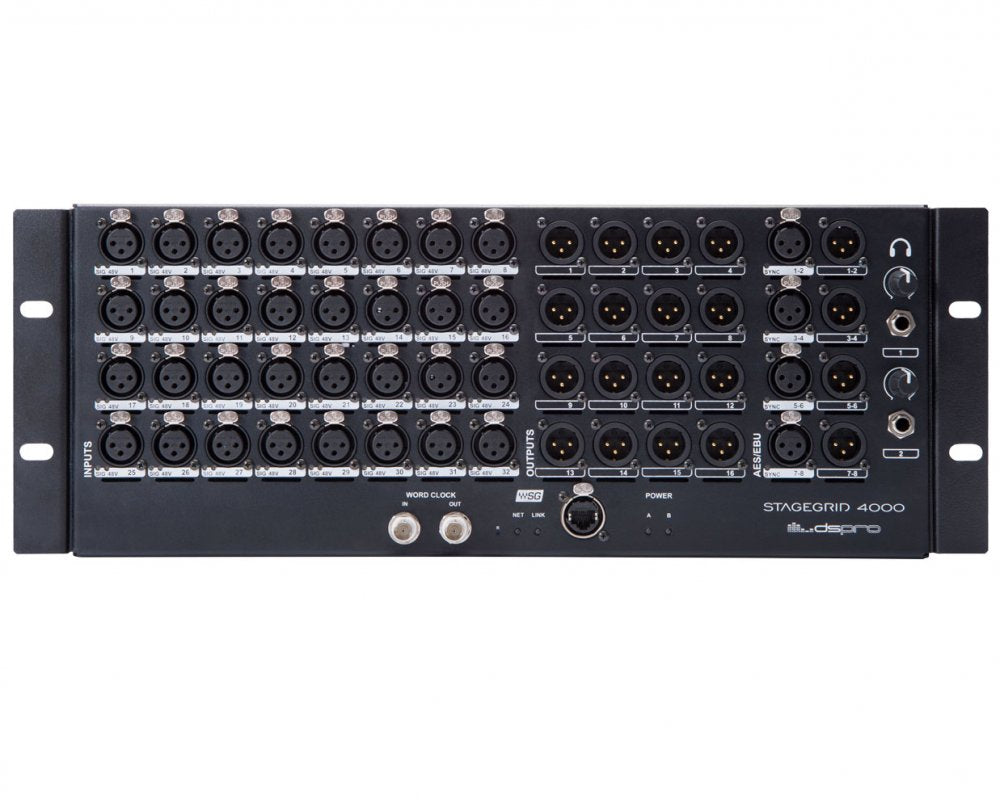

The DSPro StageGrid 4000 is a high-capacity SoundGrid stagebox designed to seamlessly integrate with the eMotion LV1 mixer and other components in the Waves ecosystem. Housed in a durable 4U rack-mountable chassis, it features 32 analog mic/line inputs, 16 analog outputs, and 4 stereo AES/EBU digital inputs and outputs, all with digitally controlled precision. Whether you're at front-of-house, on stage, or managing complex audio routing in broadcast or live settings, this unit offers robust and scalable connectivity backed by the speed and flexibility of SoundGrid technology.

Key to its professional-grade performance are the high-quality preamps that ensure dynamic, clear audio capture, two independent headphone outputs, and redundant AC power supplies for fail-safe operation during critical live shows. The Word Clock input/output (BNC) helps sync your entire system, while the Neutrik EtherCON port guarantees a solid Gigabit Ethernet link for SoundGrid network operations. With support for sample rates from 44.1 kHz to 96 kHz, the StageGrid 4000 brings both clarity and power to your live production toolkit.

• 4U rack-mountable SoundGrid I/O unit

• 32 digitally controlled mic or line inputs (XLR)

• 16 balanced analog line outputs (XLR)

• 4 stereo AES or EBU digital inputs and 4 stereo AES or EBU digital outputs (XLR)

• 2 stereo headphone outputs with independent volume controls

• Neutrik EtherCON port for SoundGrid compatibility

• Word Clock input and output with BNC connectors

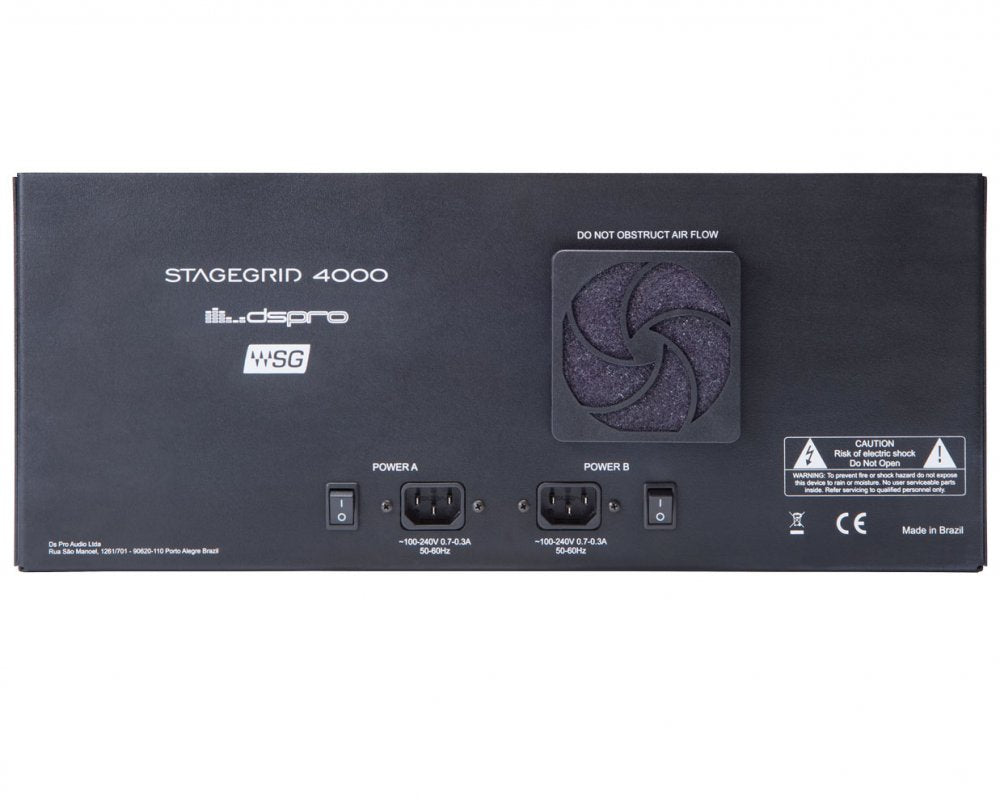

• Redundant AC power supply for extra reliability

• Supports sample rates of 44.1 kilohertz, 48 kilohertz, 88.2 kilohertz, and 96 kilohertz

• Rugged and road-ready for live sound applications

• Optimized for integration with Waves eMotion LV1 mixer

GENERAL:

• 32 analog mic or line inputs

• 16 analog line outputs

• 4 stereo AES or EBU digital inputs

• 4 stereo AES or EBU digital outputs

• 2 headphone outputs

• 1 SoundGrid Ethernet port (Gigabit)

• Word Clock input and output (BNC)

• Dual redundant power supply

ANALOG INPUTS:

• Type: Balanced XLR mic or line

• Impedance: 2860 ohms

• Gain range: minus 4 decibels to plus 60 decibels

• Max input level: 28 decibel units (at minus 4 decibel gain)

• Dynamic range: 115 decibels (A-weighted, 20 decibel gain, 1 kilohertz)

• Total harmonic distortion: 0.002 percent (at minus 1 decibel full scale, 20 decibel gain, 1 kilohertz)

• Equivalent input noise: minus 128 decibel units (A-weighted, 60 decibel gain, 150 ohm source)

• Frequency response: within plus minus 0.1 decibel from 20 hertz to 40 kilohertz at 96 kilohertz

• Phase shift: less than 10 degrees at 20 kilohertz

ANALOG OUTPUTS:

• Type: Balanced XLR

• Output impedance: 50 ohms

• Max output level: 24 decibel units (0 decibel full scale)

• Dynamic range: 115 decibels (A-weighted, 1 kilohertz)

• Total harmonic distortion: 0.002 percent (at minus 1 decibel full scale, A-weighted)

• Frequency response: within plus minus 0.1 decibel from 20 to 40 kilohertz at 96 kilohertz

• Phase shift: less than 5 degrees at 20 kilohertz

DIGITAL I/O (AES/EBU):

• Format: AES3 (2009)

• Connectors: XLR-3 for input and output

• Impedance: 110 ohms

• Supported sample rates: 44.1, 48, 88.2, and 96 kilohertz

HEADPHONE OUTPUTS:

• Output power: 150 milliwatts per channel at 16 ohms

• Dynamic range: 100 decibels

NETWORK INTERFACE:

• Interface: Gigabit Ethernet

• Connector: Neutrik EtherCON

WORD CLOCK:

• Connector: BNC

• Impedance: 75 ohms

• Voltage level: 5 volts TTL

POWER SUPPLY:

• Voltage: 110 to 240 volts AC (auto-switching)

• Frequency: 50 to 60 hertz

• Power consumption: 60 watts

• Dual redundant internal power supply

ENVIRONMENTAL AND PHYSICAL:

• Operating temperature: 0 to 40 degrees Celsius

• Relative humidity: Up to 90 percent, non-condensing

• Dimensions (width x height x depth): 430 mm x 176 mm x 300 mm

• Weight: 7.89 kilograms
