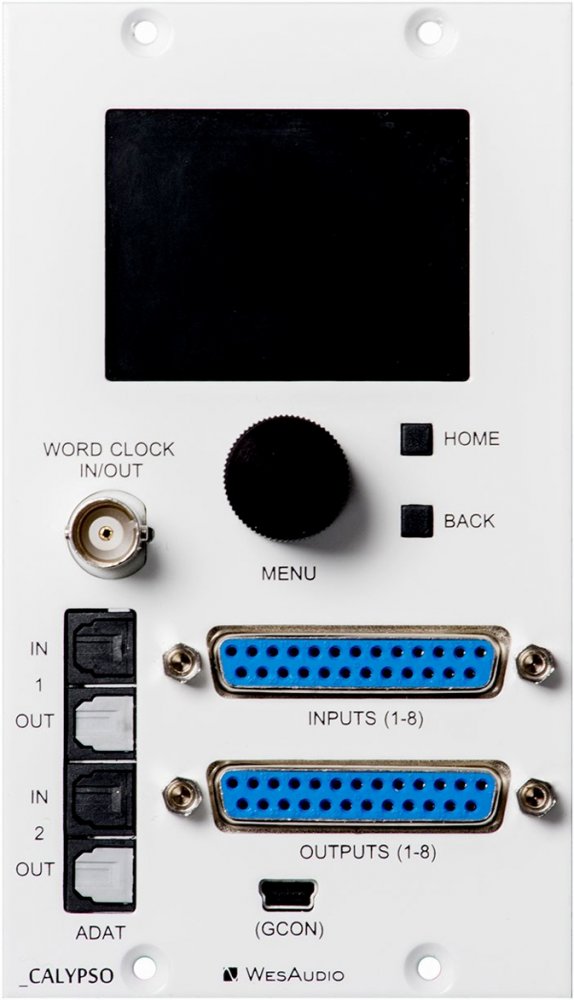

WesAudio _calypso

_CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis - _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.

24bit conversion

Supported sample rates: 44.1kHz, 48kHz, 88.2kHz(SMUX), 96kHz(SMUX)

Ultra low jitter clock

Word clock IN/OUT

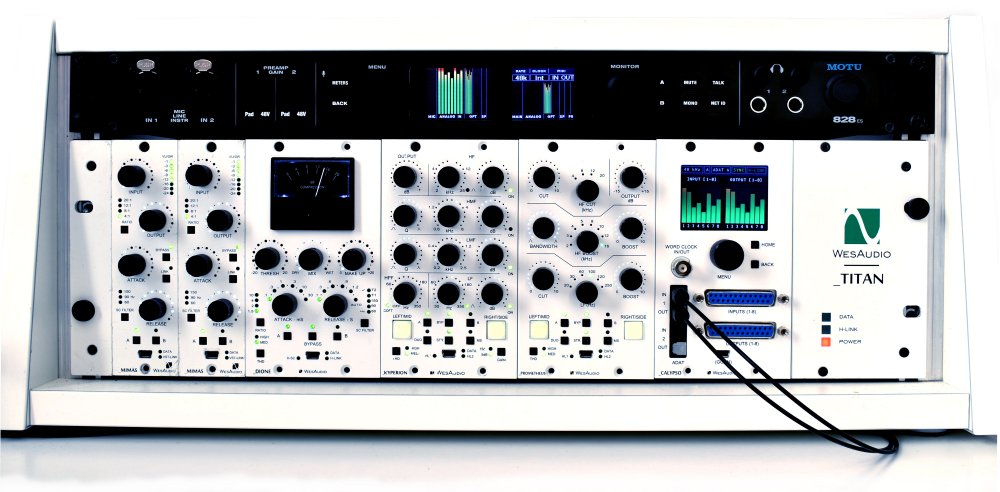

Full integration with _TITAN via IAC connector (Just ADAT cables are need to route all signal to and from chassis)

Two DB25 connectors allows integration with any 500 series chassis

Two converter reference levels +8dBu/-10dBV

LCD screen with channel metering

Power consumption: 150mA per rail

Dimensions : 76x133x158mm

Warranty: 2 years

INPUTS(ADC):

Freq. response - 20Hz-20kHzm +/- 0.1dB

THD+N (unweighted): -108dB (0.0004%)

Dynamic range (unweighted): 116dB

Gain Settings: +4 dBu / -10 dBV (selectable per input)

Maximum Input Level: (+4 dBu) +20 dBu

Input Impedance: 10K Ohms

Connector type: DB25/IAC

OUTPUTS(DAC):

Freq. response - 20Hz-20kHzm +/- 0.1dB

THD+N (unweighted): -105dB (0.0005%)

Dynamic range (unweighted): 115dB

Gain Settings: +4 dBu / -10 dBV (selectable per output)

Maximum Output level: (+4 dBu) +20dBu

Output Impedance: 100 Ohms

Connector type: DB25/IAC
