Shure MOVEMIC-88+ KIT

The MoveMic 88+ has been designed to give creators one of the most versatile wireless microphones that can be configured to capture professional audio and video using the companion MOTIV Video app on iOS and Android devices. From field recording, to creating a film, or even capturing an interview, the MoveMic 88+ has customizable DSP allowing it to be configured to perform in almost any situation. Modeled from our renowned MV88 and MV88+ microphones; the MoveMic 88+ can connect directly to your mobile phone using the Shure MOTIV Video or MOTIV Audio app(s) without a receiver.Increase your connectivity options and record to cameras, computers and third-party apps using the included MoveMic Receiver.

• 4 selectable polar patterns for ultimate versatility (adjustable stereo, mono cardioid, mono bi-directional, raw mid-side).

• 5 Preset modes (speech, singing, flat, acoustic, loud).•Connect to cameras, computers or third party mobile apps using the included MoveMic Receiver.

• Connect direct to your iOS or Android mobile device without a receiver using Shure MOTIV Video or Audio app(s).

• Configure and customize DSP settings such as polar pattern, gain, compressor, presets, EQ, monitor mix, L/R channel swap and newly-introduced noise reduction.

• 8 hour battery life on a full charge.

• Built-in headphone monitoring with adjustable monitor output.

• Instant re-connection to last device when powered on (phone or MoveMic receiver).

GENERAL FEATURES:

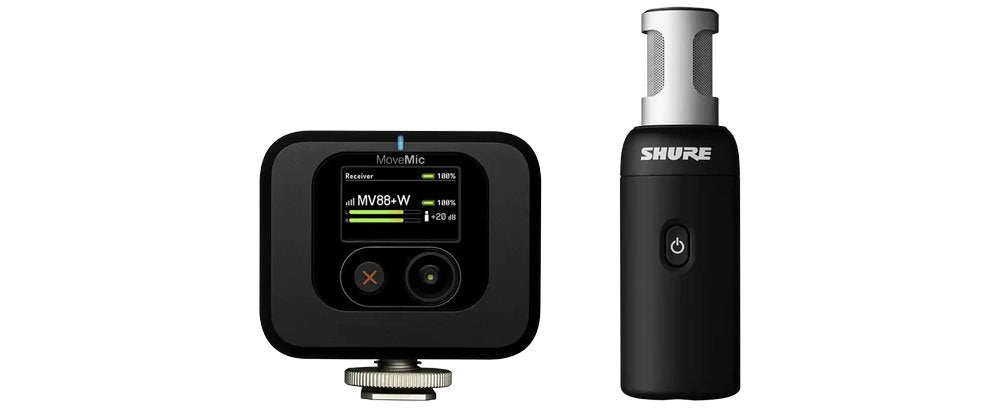

Wireless stereo microphone with receiver

4 selectable polar patterns: adjustable stereo, mono cardioid, mono bi-directional, raw mid-side

5 preset modes: speech, singing, flat, acoustic, loud

Direct connection to iOS or Android devices via Shure MOTIV Video or Audio apps (without receiver)

Connectivity options: cameras, computers, third-party mobile apps via MoveMic Receiver

Customizable DSP settings: polar pattern, gain, compressor, presets, EQ, monitor mix, L/R channel swap, noise reduction

Built-in headphone monitoring with adjustable output

Instant re-connection to last paired device (phone or MoveMic receiver)

8-hour battery life on full charge

AUDIO SPECIFICATIONS:

Frequency response (-10dB): 40Hz - 18kHz

Dynamic range: 96.5 dB

Equivalent input noise (digital USB out): 26dB

Maximum SPL: 122.4dB SPL

Sensitivity (digital USB out): -34.5dBFS/Pa

Bit rate (direct to phone): 16-bit

Bit depth (to MoveMic receiver): 24-bit

Sampling rate: 44.1kHz or 48kHz

Gain adjustment range: 0 - 40dB

OUTPUT SPECIFICATIONS:

Minimum load impedance (headphone out): 16Ω

Maximum headphone output level: 26.4mW @ 1% THD

Minimum load impedance (camera out): 2kΩ

Maximum camera output level (mic setting): -26dBV

Maximum camera output level (line setting): -8.3dBV

LATENCY:

To 3.5mm output (without noise reduction): 17.6ms

To 3.5mm output (with noise reduction): 19.6ms

To USB device: dependent on system

Wireless range: up to 100ft (30m) line of sight

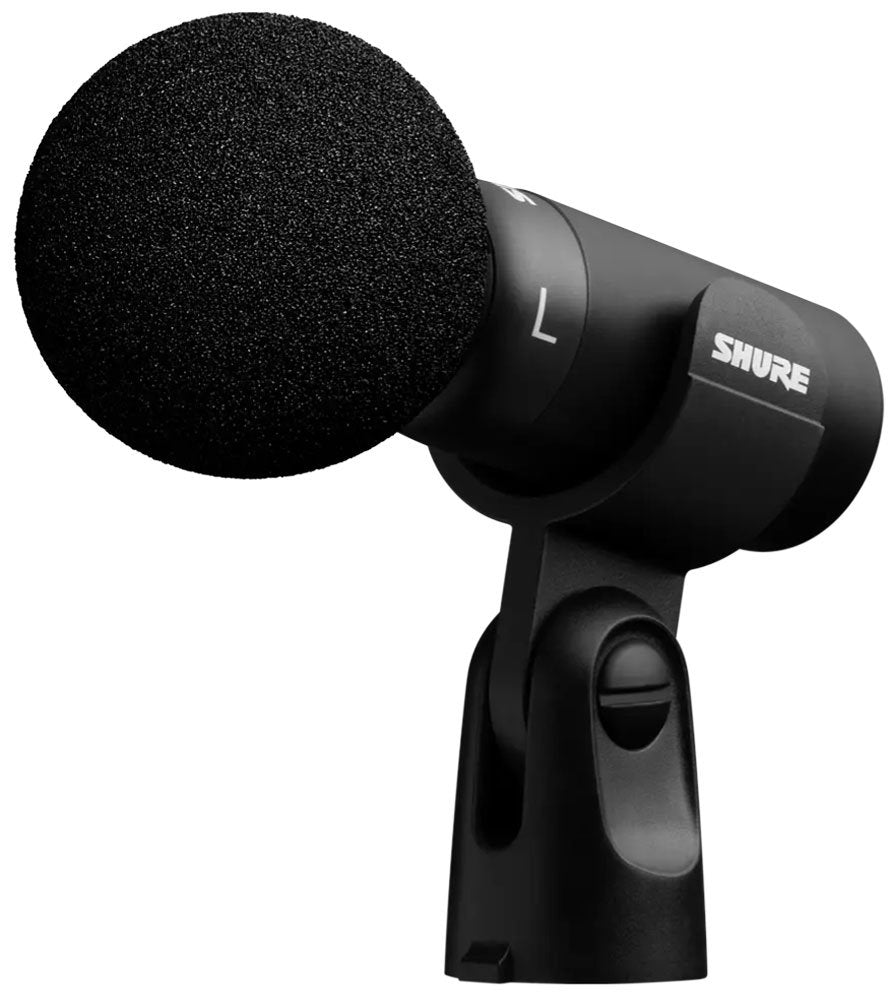

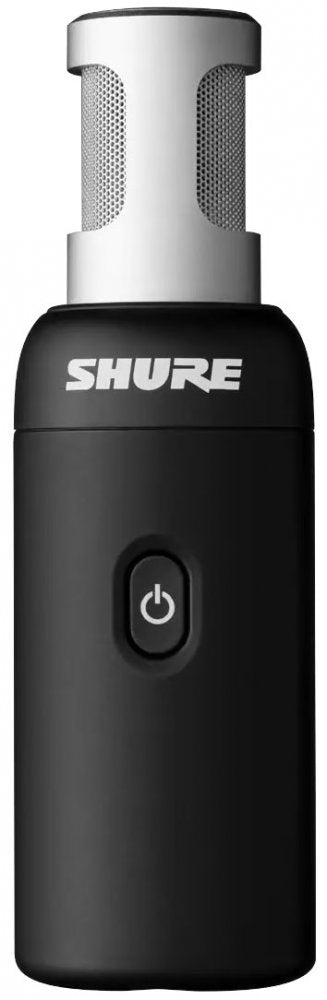

PHYSICAL SPECIFICATIONS (MICROPHONES):

Dimensions (without windscreen): 28mm x 28mm x 89mm (1.1" x 1.1" x 3.51")

Weight (without windscreen): 99g (3.5oz)

Housing: Zinc die-cast, black chrome plated

Antenna: Machined steel frame plus stainless-steel mesh, satin chrome plated

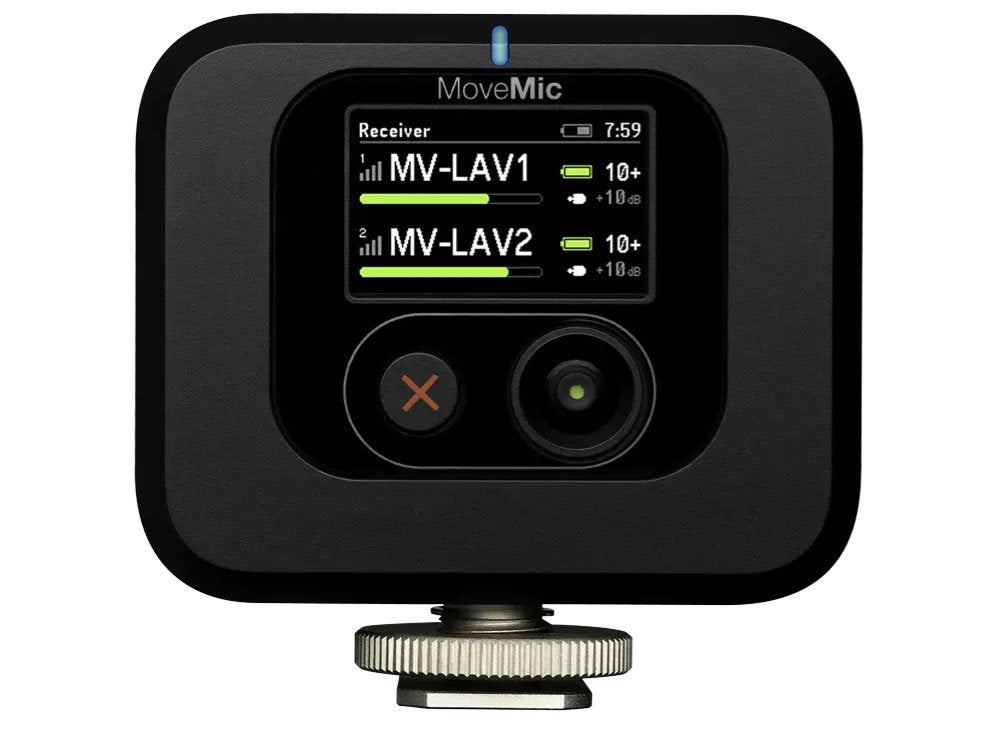

PHYSICAL SPECIFICATIONS (RECEIVER):

Dimensions (with cold shoe mount fully extended): 65mm x 67mm x 19mm (2.55" x 2.64" x 0.75")

Weight: 81g (2.86oz)

Housing: Black PC/ABS thermoplastic

Antenna: Sheet metal (tin-plated steel)

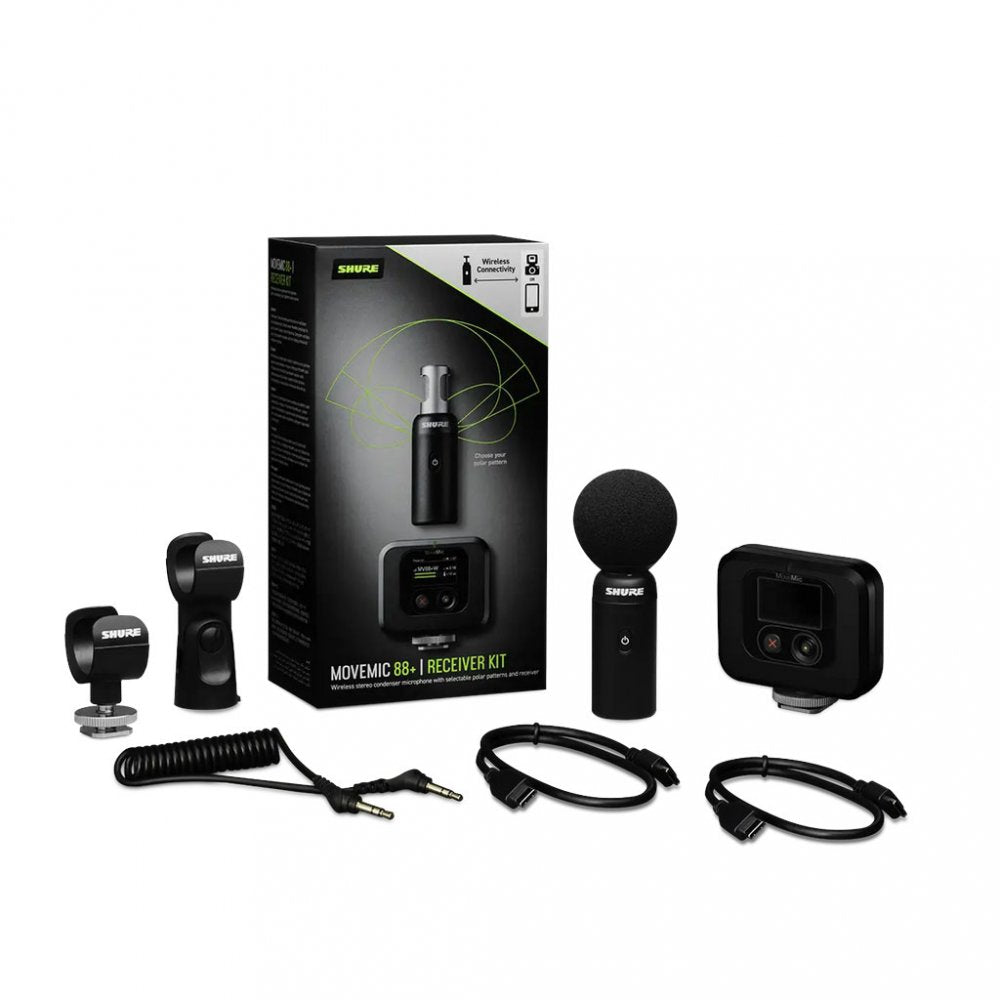

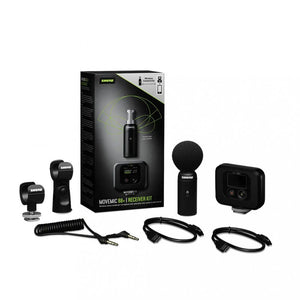

INCLUDED ACCESSORIES:

1 USBC cable, 1 Mic clip , 1 cold shoe mic clip, 1 Windscreen,1 Roll bag , 3.5 mm to 3.5 mm cable
