Wisycom LNNA2

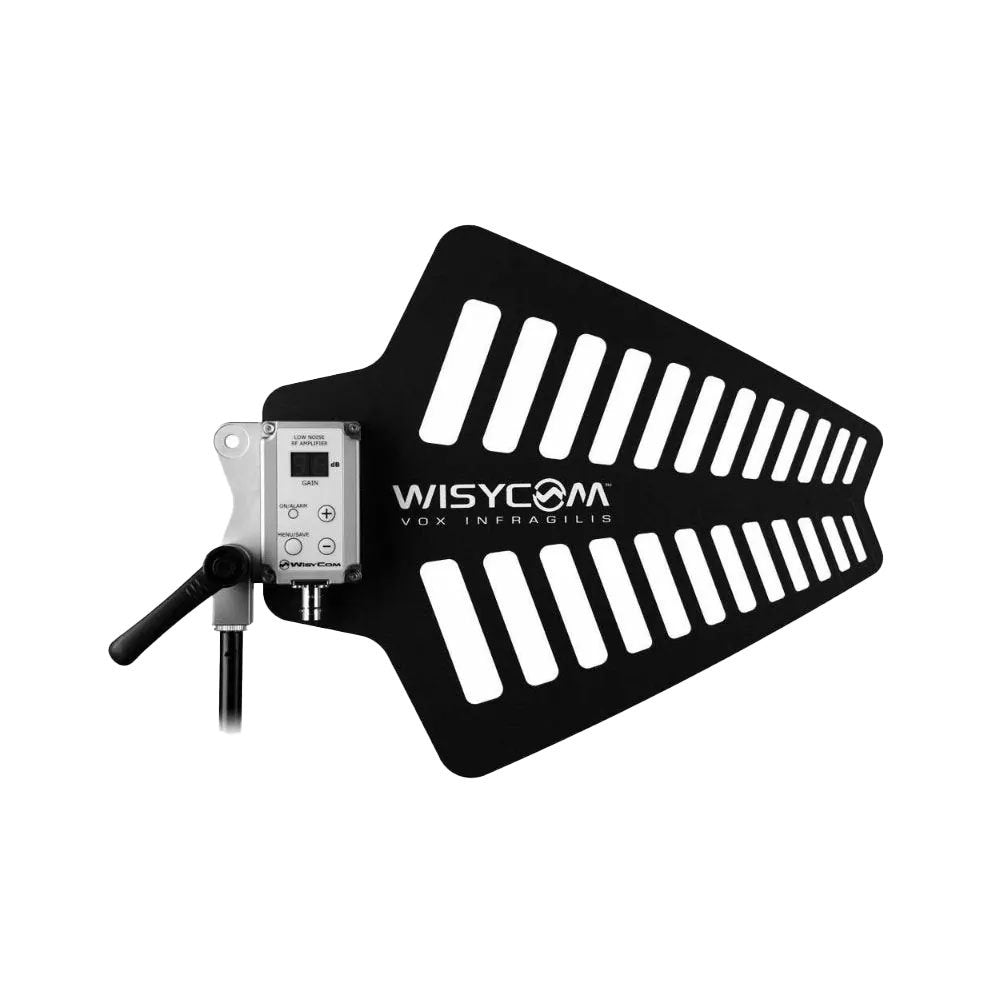

The LNNA2 UHF Wideband Active Antenna is a professional-grade LPDA (Log Periodic Dipole Array) antenna designed to enhance UHF signal reception with outstanding reliability and clarity. Covering a frequency range of 470-960 MHz, the LNNA2 delivers approximately 6 dB of gain with a typical 90 degree beam-width, optimizing signal capture for demanding broadcast and live sound applications.

Equipped with an integrated booster, it provides up to 16 dB of adjustable gain in 1 dB steps, ensuring strong signal integrity even over long cable runs. Constructed with epoxy fiberglass and copper-clad materials, the antenna is rugged and finished in black matte for durability. Its N-female connector, 50-ohm impedance, and support for 5/8" or 3/8" mounting make it versatile and easy to integrate into any setup.

Lightweight at 560g and compact with dimensions of 336 mm x 276 mm x 61 mm, the LNNA2 is ideal for both mobile and stationary installations, providing powerful signal performance with minimal interference.

10 independent battery slots for simultaneous recharging

Fast charging: less than 2 hours to charge up to 10 batteries

LED indicators (Charge and Fault) under each slot for real-time status monitoring

Ultra-lightweight and compact 1U 19" rack design

Aluminum black varnish case for durability and sleek appearance

DC connector XLR-4M, 10"28 VDC, 60W max power supply

Temperature range: 0 to +45 degree C for reliable operation

Easy to mount and dismount from rack modules

Weighs only 1.60 kg with a depth of 120mm

GENERAL SPECIFICATIONS:

• Model: LNNA2

• Type: UHF Wideband Active Antenna (LPDA - Log Periodic Dipole Array)

• Frequency Range: 470 " 870 MHz (Rev.4 supports 470 " 960 MHz)

• Gain: Approximately 6 dB

• Beam Width: 90 degrees

• Polarization: Vertical

• Radiation Pattern: Directional

BOOSTER SPECIFICATIONS:

• Booster Gain: 0 -16 dB, selectable in 1 dB steps

• Gain Flatness: +/-1 dB across the entire frequency range

• OIP3 (Output 3rd Order Intercept Point): +43 dBm typical

• SWR (Standing Wave Ratio): < 1:1.5, typical 1:1.4

• Power Supply: +12 V, 100 mA

CONNECTIVITY:

• Connector Type: N female (for LNNA2)

• Impedance: 50 ohm

PHYSICAL SPECIFICATIONS:

• Material: Epoxy fiberglass (copper-clad)

• Finishing: Black matte

• Mounting: 5/8" Withworth or 3/8" with adapter

• Dimensions: 336 mm (L) x 276 mm (H) x 61 mm (D)

• Weight: 585 g
