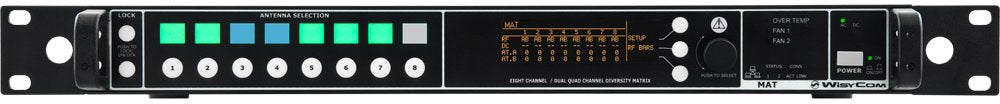

Wisycom MAT244-US

MAT244 is very flexible combiner especially designed to manage RF in a multi-site production environment. It can: - route RF in several possible configurations - control antenna remotely, - manage attenuation/boost for the different areas, - monitor RF and interferences thru and integrated RF meter.

All of this can be done remotely thanks to an Ethernet interface and a very intuitive PC software. MAT244 can be configure locally of by SW as a diversity combiner 4:2 with 6dB gain or in a non-diversity combiner 8:4 / 8:1

• Combiner mode: diversity 4:2 / non-diversity 8:1 or 8:4 (SW configurable)

• Wide bandwidth 150-840 MHz operation

• Remote management and monitor of alarms thru Ethernet 10/100 base TX

• Antenna booster supply toggled on each input independently

• Voltage and current monitoring on each booster supply with alarm

• Programmable attenuators on each inputs

• Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)

• light window where the user can enter their own text to identify the 8 areas

FREQUENCY RANGES:

150 ÷ 840 MHz (MAT244)

150 ÷ 960 MHz (MAT244X)

INPUT/OUTPUT GAIN:

7 dB (Combiner 8:1)

0 dB (Combiner 8:4)

7 dB (Combiner 4:2)

OIP3:

30 dBm typ. (Combiner 8:1)

24 dBm typ. (Combiner 8:4)

30 dBm typ. (Combiner 4:2)

AMPLIFIER LINEARITY:

± 1 dB (typical)

NOISE FIGURE:

5.5 dB (each channel)

ANTENNA BOOSTER POWERING:

+12Vcc / 800mA MAX for ports 1A, 1B [2x4:2 conf] or for port 1,5 [other configuration]

+12Vcc / 230mA MAX (other ports)

CONNECTOR:

input: 8 BNC-F

output: 4 BNC-F

IMPEDANCE:

50

MANAGING INTERFACE:

10/100 Base TX Ethernet port

DISPLAY:

64 x 256 OLED (yellow)

POWER SUPPLY:

AC connector 90÷264Vac /47÷63Hz, (fuse protected) T2A-50W max

TEMPERATURE RANGE:

-25 ÷ +55 C

MATERIAL:

aluminum

FINISHING:

black varnish

DIMENSIONS:

44 x 483 x 398 mm (HxWxD)

WEIGHT:

3,7 Kg
