Wisycom SPL2216

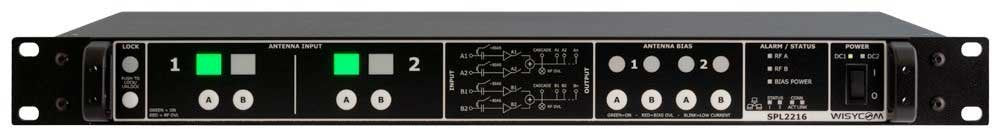

It allows a basic matrix-selection between 2 diversity areas: each input feed can be activated with a button on the front panel.

It provides antenna bias & diagnostic check and integrates the Wisycom Remote Antenna Protocol: using the same coaxial cable it creates a network to monitor and control remotely boosters (BFA) or antennas (LFA). Thanks to the ethernet interface all of these functionalities can be supported on the PC using the Wisycom Wireless Manager program.

• Wideband: 170-1260 MHz

• High Rf robustness and linearity: for high density/equally spaced frequencies operations (i.e. with MTP40s Linear)

• Able to feed 16 diversity receivers

• Combine/Select signal from 4 antenna inputs

• Redundant DC supply and antennas diagnostic features

• Wisycom Remote Antenna Protocol to control antennas/booster remotely thru coax

• Ethernet interface to access all of feature with a PC, making presets and real time monitoring

• Cascade output to connect another SPL2216 or monitor devices

Frequency ranges: 170 ÷ 1260 MHz

Input/output gain: +5dB approx.

OIP3Input/cascade gain: +1.5dB approx.

Amplifier linearity: ± 1 dB (typical)

Noise figure: 7,5 dB

Antenna booster powering: +12Vcc / 500mA MAX (for each BNC-female input connector A & B)

Connector:

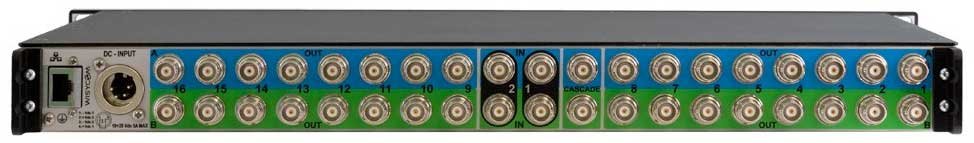

input: 2+2 BNC-F

output: 16+16 BNC-F (SPL2216)

8+8 BNC-F (SPL2208)

cascade: 2 BNC-F

Impedance: 50

Managing interface: 10/100 Base TX Ethernet port and thru frontal tactile buttons

Power supply:

10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin

1: -Vdc1

2: +Vdc2

3: -Vdc2

4:+Vdc1

Power consumption: 40W max

Temperature range : -25 ÷ +55 C

Material: aluminum

Finishing: black varnish

Dimensions: 44 x 483 x 351 mm (HxWxD)

Weight: 3 kg
