YoloLiv YoloBox

YoloBox helps you start live broadcasting events with unprecedented scale and effectiveness

Connect Connect to the internet via Ethernet/WiFi/4G, sign up your YoloLiv account, then plug your camera into YoloBox, you are way to go.

Capture YoloBox can acquire video from numerous sources including cameras, GoPro, drone, local library, etc.

Stream Boost your viewership in cross-channels like Facebook, YouTube, Twitch, or any other RTMP(s) supported websites.

Great Value For Everything It Can Do YoloBox is the equivalent of ATEM Mini + Computer + Monitor + Restream + Dedicated Desk

8 Core Processor Leading performance, Robust connectivity The Android-based software-driven device that is only getting better and more powerful

More powerful processing An integrated Adreno 506 Series GPU delivers processing power for dazzling displays.

Longer battery life Devices require less frequent charging thanks to a low-power Cortex A53 processor and efficiency-boosting features.

Integrated X9 LTE Up to 3x the LTE upload speeds of most LTE devices and advanced Wi-Fi for super-fast sharing of high res photos and videos.

Less time charging Qualcomm Quick Charge™ 3.0 is up to four times as fast as conventional charging. Spend less time charging and more time doing.

• Live switch up to 6 video sources

• No computer/desk workstation required, -Great ease to operate, touchscreen control, -Ultra portable

• Support 4G LTE & built-in battery

• SD card

• 3-Hours+

• Audio In

• Headphone Out

• 1080p/i

• EtherNet

• Shoe mount

• SIM card

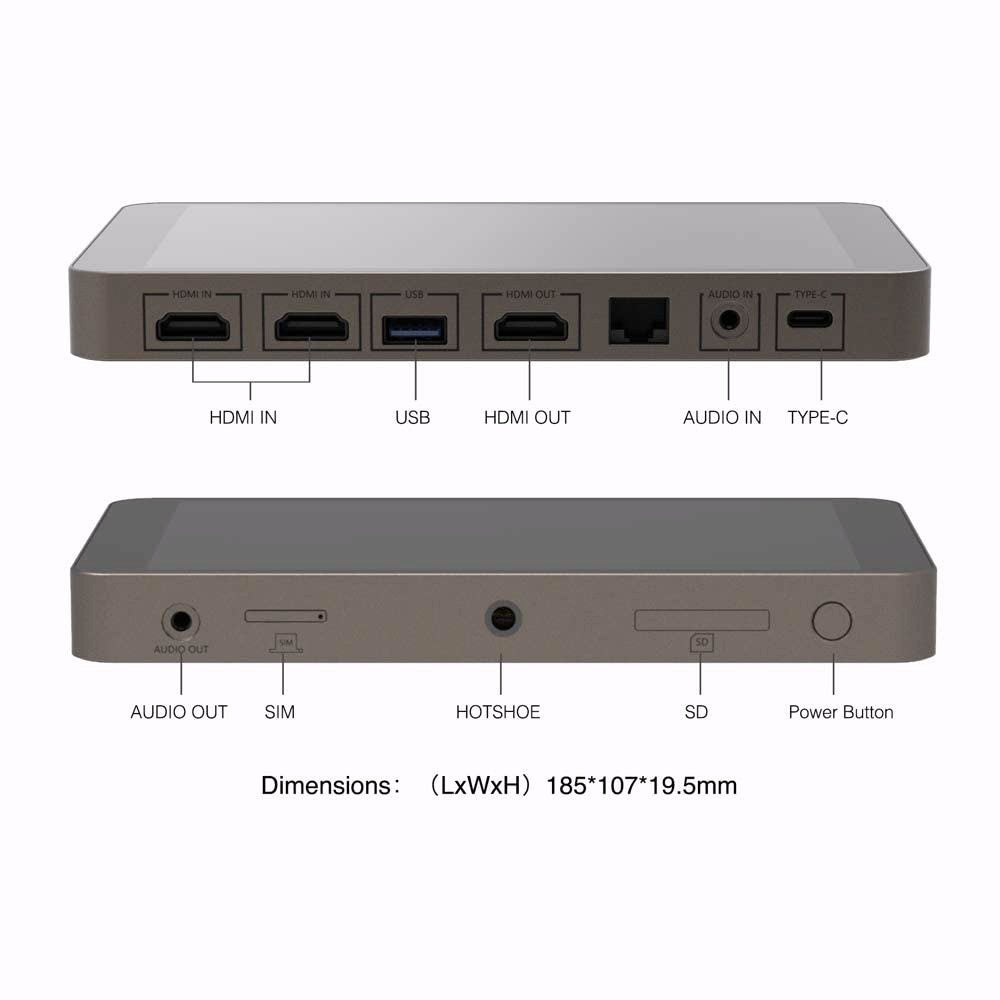

• HDMI IN

• HDMI Out

DISPLAY :

7 inch LCD

BRIGHTNESS :

350 nits

HDMI INPUTS :

2 HDMI Inputs

USBC :

One for charging

AUDIO INPUT :

Line In

CPU :

QualComm 625

VIDEO ENCODED FORMAT:

: H.264

AUDIO ENCODED FORMAT :

AAC (48k)

VIDEO RECORDED FORMAT :

MP4

AUDIO INPUT FORMAT:

: 32kHz, 44.1kHz, 48kHz, 16-bit

VIDEO INPUT FORMAT :

1080i/ 720p/ 1080p

LIVE BROADCAST RESOLUTION :

480P/720P/1080P

STORAGE CARD TYPE :

SD Card

STORAGE CARD CAPACITY :

Expanded to 128G in FAT32 Format

WIFI :

2.4G/5G

4G NETWORK:

Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators.

SIM CARD SIZE :

Standard SIM Card

POWER INTERFACE :

Type C, Quick Charge 3.0

BATTERY CAPACITY :

3.7V/5200mAh

NETWORK PROTOCOL :

RTMP(S)

OPERATING TEMPERATURE :

-10-40

STORAGE TEMPERATURE :

5-40
