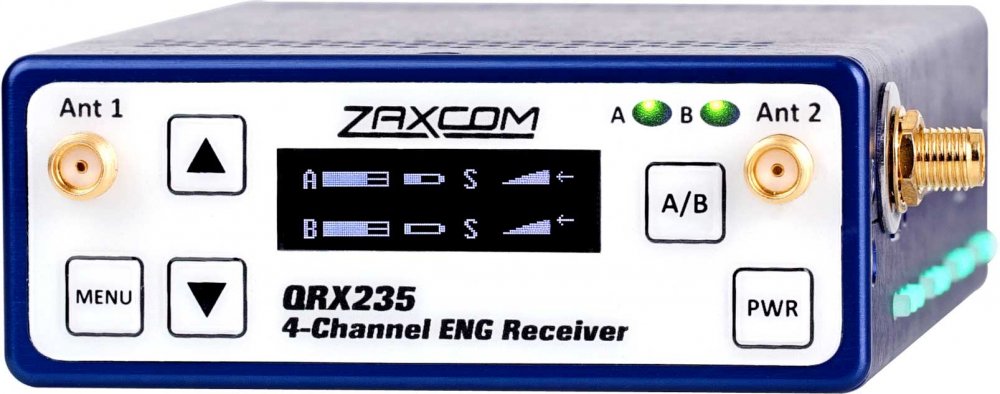

Zaxcom QRX235 (Block 23: 590.0 to 614.0)

Three key components give QRX235 its enhanced distance / range:

New digital modulation

Enhanced receiver design giving it maximum sensitivity while lowering its noise floor

The elimination in any difference between single and dual mode

QRX235 receives up to 4 channels of 100% digital audio from up to 2 transmitters, any combination of mono and stereo transmitters is accepted. The audio output can be either analog or AES. It also features our patented side mounted LED's, these provide visual confirmation of audio and RF reception. The LED's are very bright and are visible with the QRX235 mounted in its Zaxcom camera mount even in bright sunlight.

The ZaxNet QIFB option is available in the QRX235 - The QIFB allows you to send or receive ZaxNet audio and timecode, as well as TRX commands from your QRX235.

If you've got QIFB be sure to check out ZaxMote.

RECEIVER:

Single Mode Receiver Type: True diversity single conversion digital demodulator

Dual Mode Receiver Type: Antenna diversity single conversion digital demodulator

RF Modulation: proprietary digital method

RF Frequency Range: 518.0 to 872.0 MHz (blocks are 20 to 36 MHz wide)

RF Frequency Step: 100 KHz

RF Bandwidth: 200 KHz

Channel Separation: 500 KHz (700 KHz recommended)

Sensitivity: -110 dBm

Antenna Connector: 50-ohm SMA female

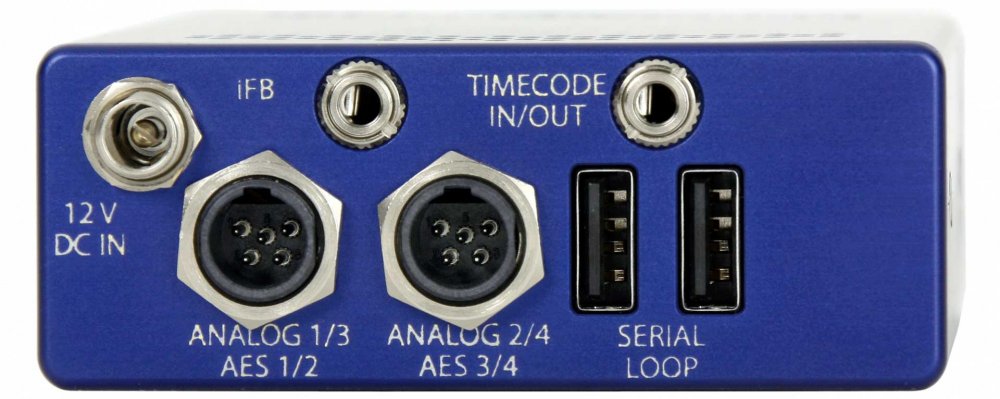

RECEIVER AUDIO - ANALOG OUTPUT (X 4):

Dynamic Range: 114 dB

Distortion: 0.001%

DAC Bit-depth: 24 bits

Connector: TA-5M

Audio Output Level: Line: -10 to 0 dBm active balanced

RECEIVER AUDIO - DIGITAL OUTPUT (X4):

Signal Format: AES Balanced

Audio Output Connector: TA-5M

IFB TRANSMITTER (QIFB OPTION ONLY):

RF Power Output: 50 mW

RF Modulation: Digital Spread Spectrum

RF Frequency Range: 2.403 to 2.475 GHz

RF Frequency Step: 0.001 GHz (1 MHz)

RF Bandwidth: 1 MHz

Channel Separation: 2 MHz

Antenna Connector: 50-ohm SMA Female

Emission Designator: 180 KV2E

FCC Part: CFR Title 47, Part 18IFB

2.4 GHZ AUDIO TRANSMITTER (QIFB OPTION ONLY):

Dynamic Range: 103 dB

Distortion: 0.01%

Frequency Response: 20 Hz to 12 kHz

System Group Delay: 10 ms

IFB Audio Input (QIFB Option Only)

Connector: Stereo 1/8 (3.5 mm)

Type: Balanced / Unbalanced

Level: -10 dBu

Impedance: 10 k

ADC Bit-depth: 24 bits

ADC Sampling Rate: 48 kHz

TIMECODE INPUT (QIFB OPTION ONLY):

Connector: Stereo 1/8 (3.5 mm)

Level Range: 1 to 5V, P-P

Impedance: 10 k

TIMECODE OUTPUT (QIFB OPTION ONLY):

Connector: Stereo 1/8 (3.5 mm)

Level Range: .2 to 5V, P-P

Impedance: 8

TIMECODE READER / GENERATOR (QIFB OPTION ONLY):

Clock Accuracy: 1.54 PPM (1 frame out in 6 hours)

Timecode Type: SMPTE

Timecode Frame Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF

MISC.:

Weight: 6.0 oz (170 grams)

Dimensions: 1.25 x 3.25 x 5.25 (32mm x 83mm x 133mm)

External Power: 9 to 18 VDC (300mA @ 12VDC)

Internal Power: N/A

Display: Graphic LCD Panel
