Zoom EXH-6e

Expand Your Recording The EXH-6e features 2 XLR/TRS inputs and a 3.5mm stereo mic/line input for an added level of flexibility in your recording. Plug in microphones, instruments, mixers, and more.

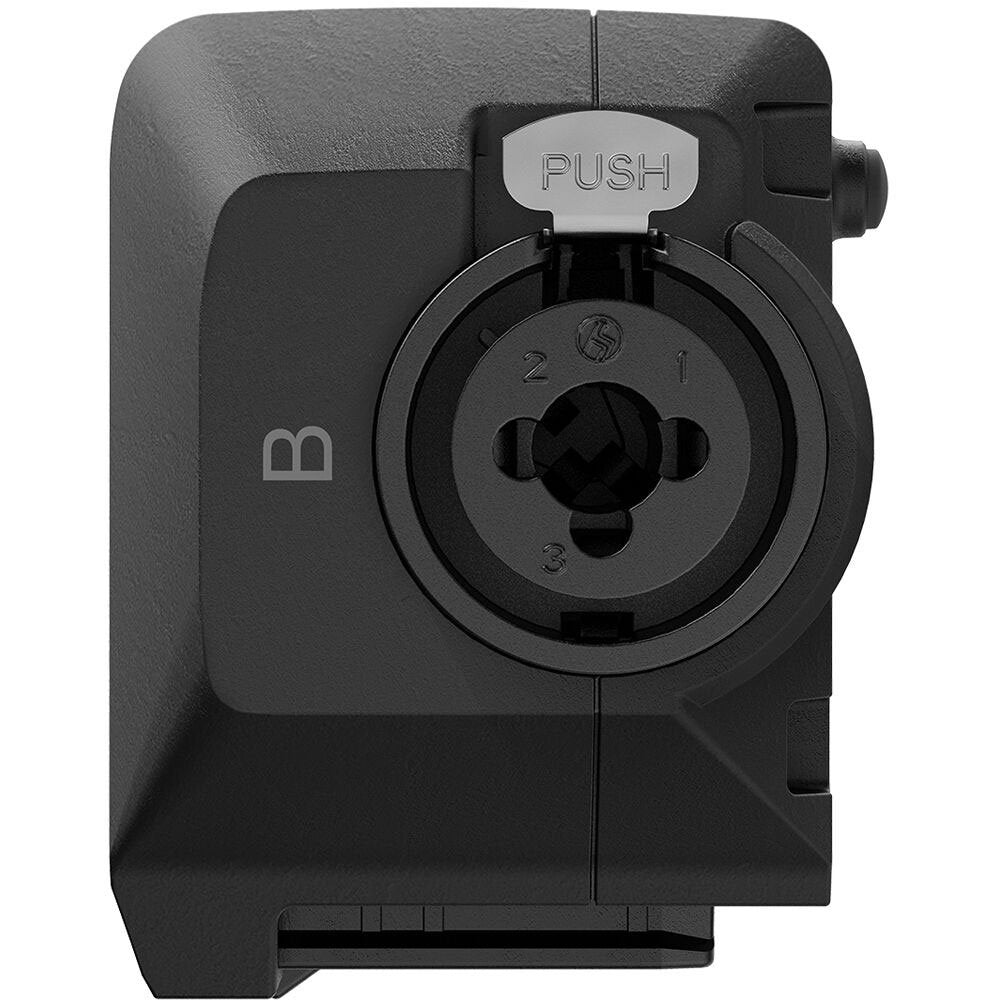

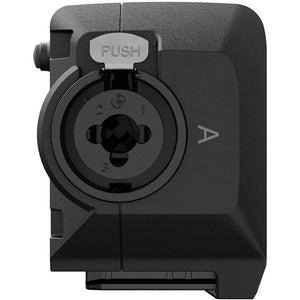

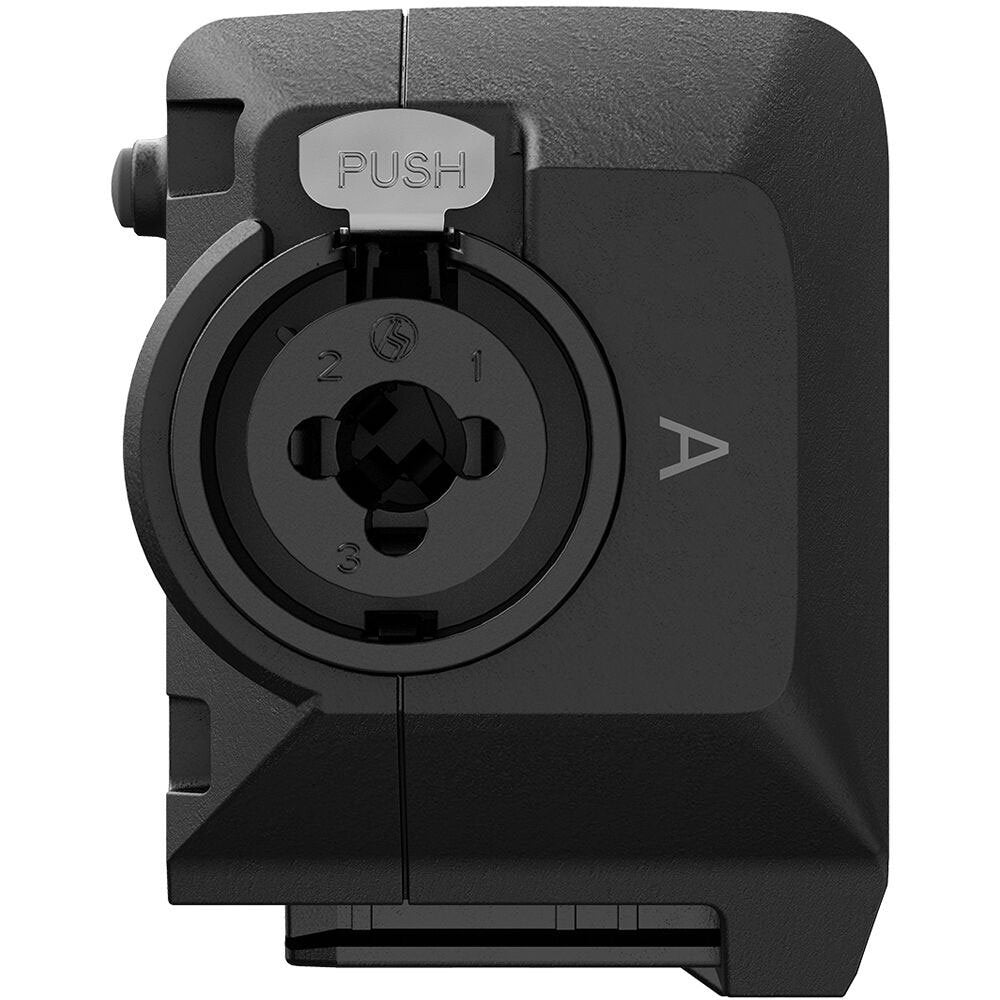

Input Types The EXH-6e features 2 XLR/TRS inputs with locking connectors to accept mic or line level input. Additionally, a 3.5 mm stereo mic/line input is available for lavalier microphones or stereo feeds.

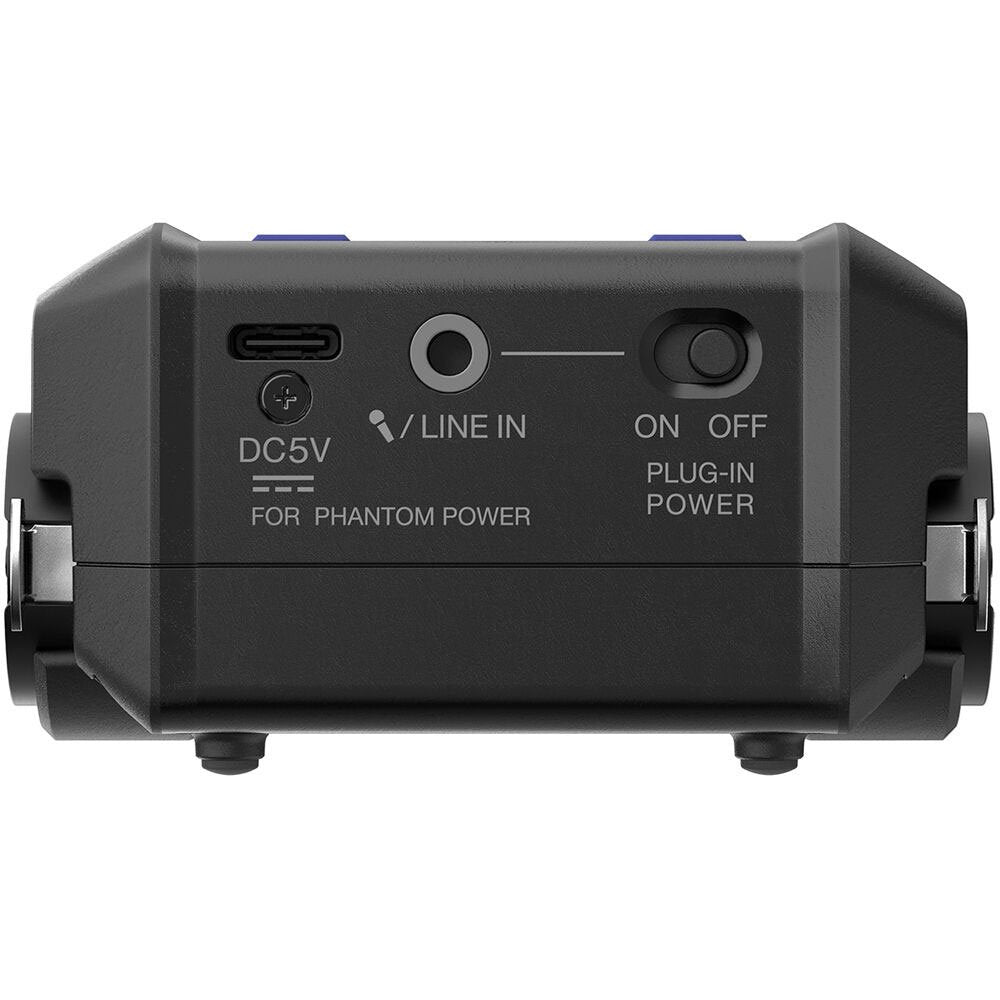

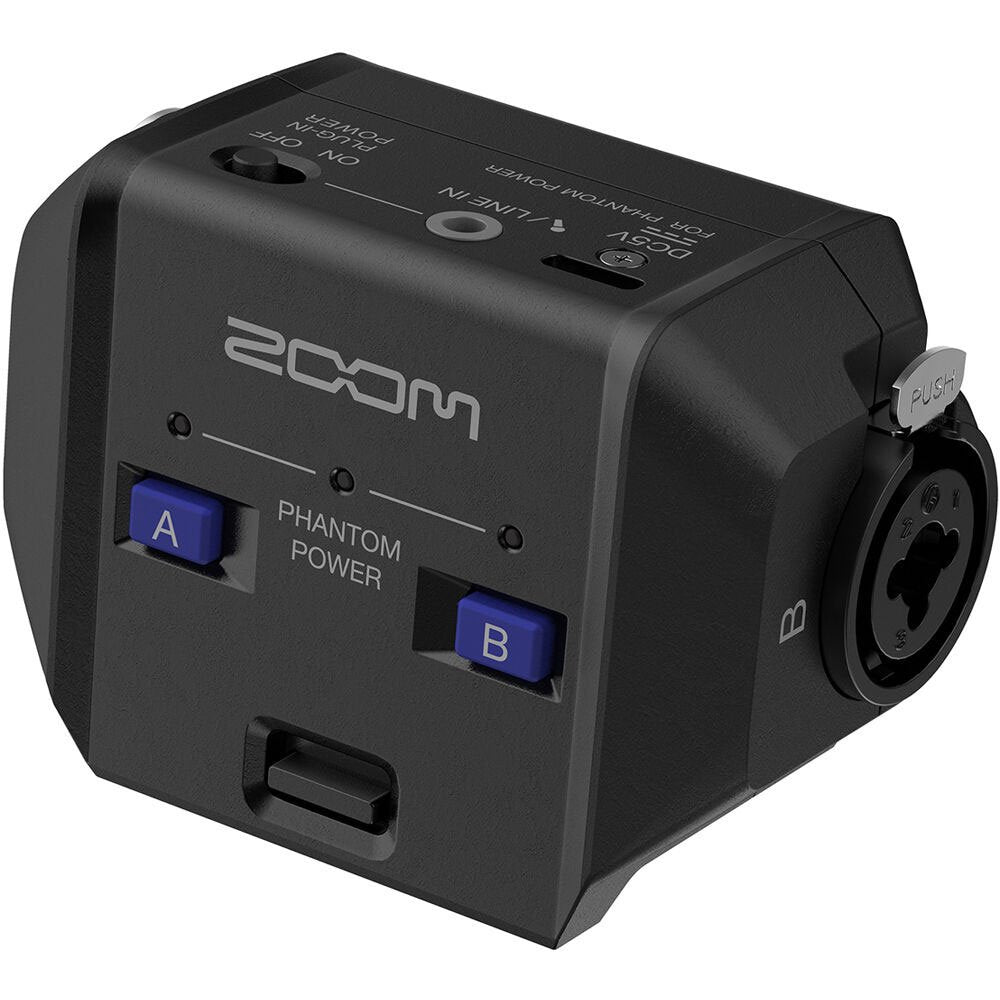

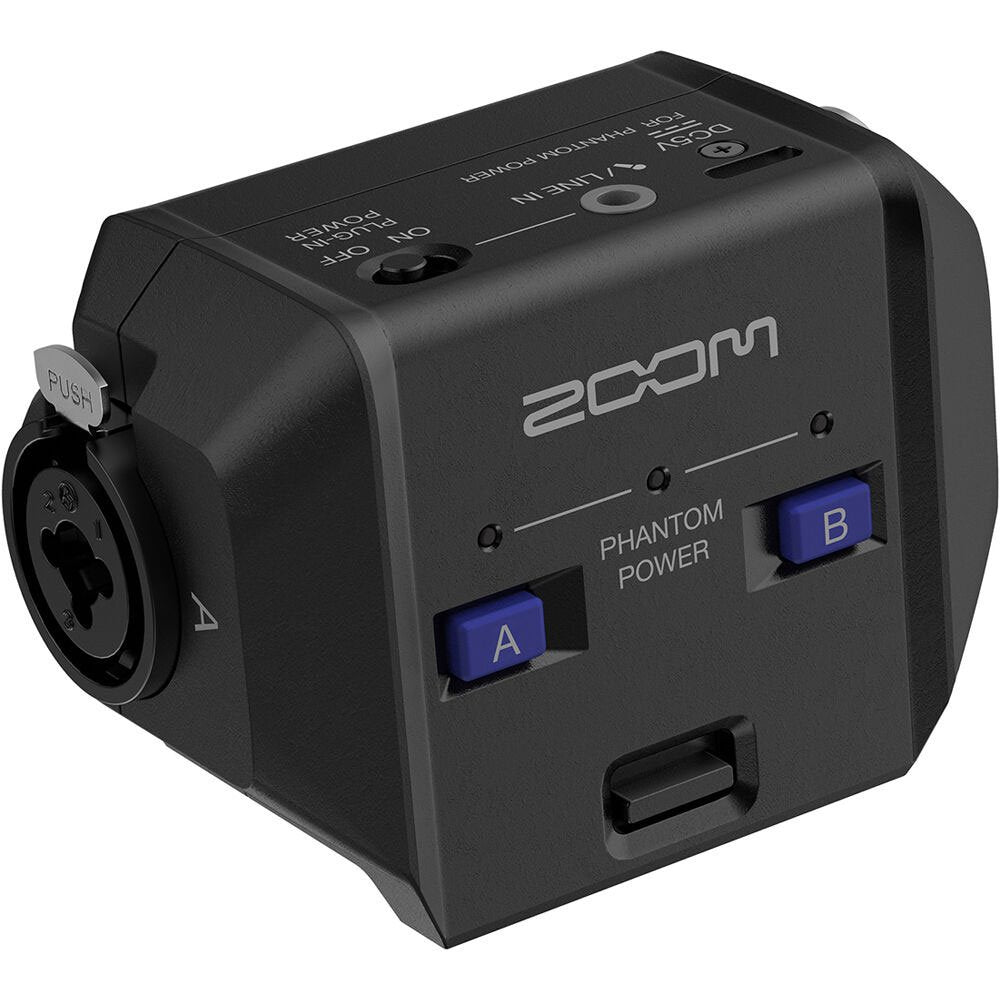

Phantom Power The EXH-6e can provide phantom power for the 2 XLR/TRS combo inputs. Connect the USB-C port of the capsule to an AC outlet or USB battery to power condenser mics. Plug-in power is also available for lavalier mics connected to the 3.5mm input.

Capsule System 3.0 The EXH-6e utilizes Zoom's Capsule System 3.0. This new connector provides a stable connection and allows for 32-bit float recording.

• Alternate Capsule for H6essential

• Two XLR-1/4" TRS Locking Inputs

• Accepts Mic or Line Inputs

• Stereo 3.5mm Mic/Line Input for Lav Mics

• Individually Selectable Phantom Power

• Plug-In Power for Lav Mics

• USB-C Port for External Power

• Supports 32-Bit Float Recording

GENERAL SPECIFICATIONS:

• Dual XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

• 3.5mm stereo mic/line input

• Utilizes Zoom's Capsule System 3.0 for stable connection and 32-bit float recording

INPUT SPECIFICATIONS:

• Input gain: adjustment unnecessary

• Maximum input level: '4 dBu (MIC); +16 dBu (LINE)

• Phantom power: +48 V, 10 mA maximum per channel

• 3.5mm input gain adjustment: unnecessary

POWER SPECIFICATIONS:

• USB-C port for external power to condenser mics

• Plug-in power available for lavalier mics connected to the 3.5mm input

PHYSICAL SPECIFICATIONS:

• Dimensions: 78.1 mm (W) - 56.7 mm (D) - 43.9 mm (H)

• Weight: 96 g
