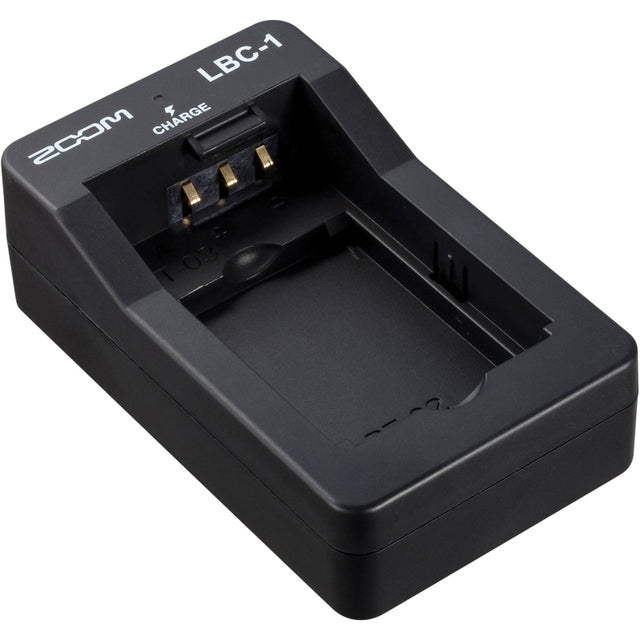

Zoom LBC-1

The LBC-1 is a recharger for the ZOOM Q8 lithium-ion battery (ZOOM BT-03) and the ZOOM Q4 lithium ion battery (ZOOM BT-02). By using USB bus power from a computer or optional AD-17 AC adapter, you can repeatedly recharge your BT-02/BT-03 batteries.

• Compatible with Multiple Batteries: Charges both the BT-02 battery for the Zoom Q4/Q4n and the BT-03 battery for the Zoom Q8.

• Versatile Power Options: Can be powered via USB from a computer or with the optional AD-17 AC adapter.

• User-Friendly Indicators: Features LED lights that show charging status, turning red during charging and green when complete.

• Compact and Portable Design: Its small size makes it easy to carry for on-the-go use.

Please note that the USB cable and AC adapter are sold separately.

GENERAL SPECIFICATIONS:

• Battery charger for Zoom BT-02 and BT-03 lithium-ion batteries

• Compatible with Zoom Q4, Q4n, and Q8 Handy Video Recorders

• Dimensions: 82 mm (L) - 50 mm (W) - 29 mm (H)

• Weight: 40 g

POWER SUPPLY:

• Input: DC 5V, 1000mA (USB Mini-B type)

• Output: DC 4.2V, 930mA

• Power sources: USB bus power from a computer or optional Zoom AD-17 AC adapter

CHARGING TIMES:

• BT-02 Battery:

• Via USB bus power: approximately 3 hours

• Using Zoom AD-17 AC adapter: approximately 2 hours and 15 minutes

• BT-03 Battery:

• Via USB bus power: approximately 4 hours and 30 minutes

• Using Zoom AD-17 AC adapter: approximately 2 hours and 45 minutes

OPERATING TEMPERATURE RANGE:

• Charging: +5C to +35C

COMPATIBILITY:

• Designed for Zoom BT-02 and BT-03 lithium-ion batteries

• Suitable for use with Zoom Q4, Q4n, and Q8 Handy Video Recorders
