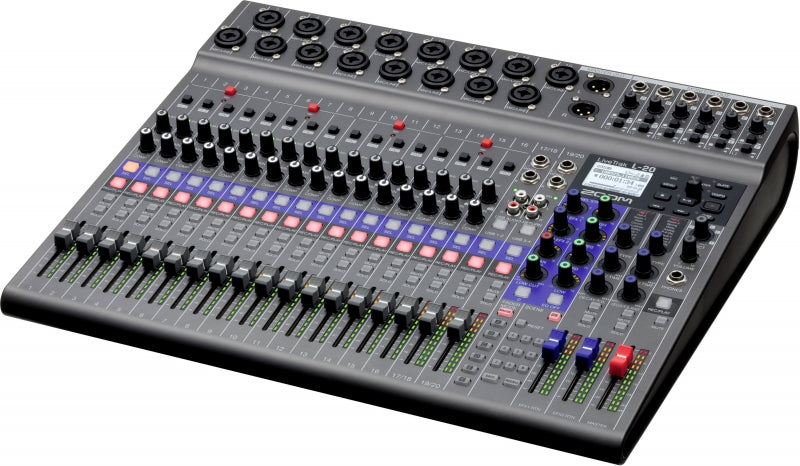

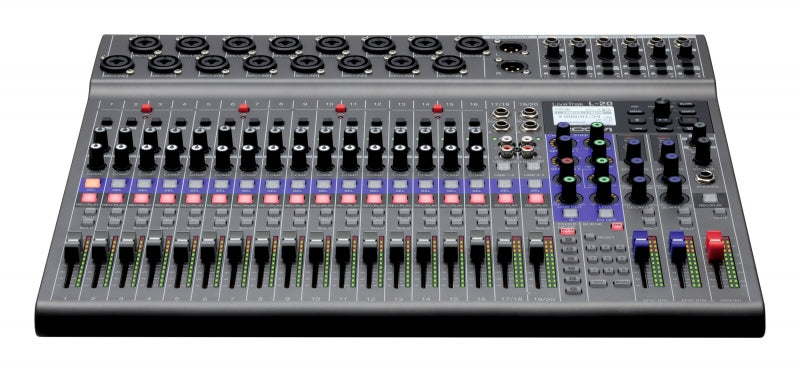

Zoom LiveTrak L-20

With 20 discrete audio channels and six individual custom monitor mixes, it's built for bigger, bolder arrangements.

20 Inputs for Bigger Sound The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.

22 Tracks of Recording Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.

*Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.

Create Six Custom Monitor Mixes With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.

And One for the House The LiveTrak L-20 features a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians' satisfaction.

Wireless Mixing The LiveTrak L-20 offers wireless control* via a free iOS mobile app featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.

• 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity

• 22-track simultaneous recording, 20-track playback

• 22-in/4-out USB audio interface connectivity

• Records up to 24bit/96kHz audio to SD card

• 48V phantom power

• Hi-Z connectivity (channels 1-2)

• 26dB pad (channels 3-16)

• Built-in compression control (Channels 1-16)

• Solo buttons for individual channels

• Variable frequency low-cut control

• Main outputs plus 6 customizable monitor outputs

• Dedicated headphone output for sound engineer

• Scene saving function, up to 9 scenes saved at a time

• 20 built-in chorus, delay and reverb effects with adjustable parameters

• Two effect busses

• Built-in slate mic

• Class-compliant mode (for iOS compatibility)

• Compatible with Remote Mixer app for iPad

• Automatic recording starting/stopping capability

• Pre-record function

• Import/export projects with USB 2.0 host port

• Compatible functions for ZOOM FS01 footswitch

• Automatic power-save function

GENERAL SPECIFICATIONS:

• 20-channel digital mixer and multitrack recorder

• Dimensions: 445 mm (W) - 388.4 mm (D) - 82.6 mm (H)

• Weight: 3.7 kg

• Power consumption: 24 W maximum

• Power supply: AD-19 AC adapter (12V DC, 2A)

INPUTS:

• 16 mono mic/line inputs (XLR/TRS combo jacks)

• 2 stereo line inputs (TS phone/RCA pin jacks)

• Hi-Z inputs on channels 1"2

• Phantom power (+48V) available on all mono inputs

OUTPUTS:

• Master Out: 2 x XLR jacks (balanced)

• Monitor Out A"F: 6 x TRS phone jacks (balanced)

• Phones: 1 x standard stereo phone jack

RECORDING CAPABILITIES:

• 22-track simultaneous recording (20 individual channels plus stereo mix)

• 20-track playback

• Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

• Supports SDHC cards (4 GB to 32 GB) and SDXC cards (64 GB to 512 GB)

AUDIO INTERFACE:

• 22-in/4-out USB audio interface

• Compatible with Windows 7 SP1 or later, 8.1, 10 (32-bit/64-bit)

• Compatible with macOS 10.11 or later

• Class-compliant mode for iOS compatibility

MIXER FEATURES:

• 3-band mid-parametric EQ on each channel

• Low-cut filter (40 to 600 Hz, 12 dB/oct)

• Built-in effects: 20 types including reverb, delay, and chorus

• Two EFX send busses

• Scene saving function (up to 9 scenes)

• Wireless control via iOS mobile app (requires optional Bluetooth adapter)

PREAMPS:

• 16 high-performance mic preamps

• Equivalent input noise: '128 dBu EIN

• Maximum input gain: +60 dB

COMPATIBILITY:

• Compatible with Remote Mixer app for iPad

• Supports connection with iPads running iPadOS 13 or later
