Zoom UAC-232

ELEVATE YOUR RECORDING EXPERIENCE The ZOOM UAC-232 USB Audio Converter is the first dedicated 32-bit float audio interface , designed for musicians who demand more quality in their productions.

HIGH-QUALITY AUDIO

NO NEED TO SET GAIN Whether you're recording in the studio or on stage, sound levels can fluctuate. The UAC-232's 32-bit float technology captures clip-free, low-noise recordings without the need to set gain.

Learn more about 32-bit float technology here.

OUR FINEST PREAMPS Featuring the same clean, low-noise preamps used in our professional F-Series recorders, the UAC-232 guarantees high-quality recordings in any setting.

BUILT FOR CREATORS

FOR MUSIC Whether you're recording or streaming live, with 32-bit float technology you don't have to worry about getting the ideal input gain or monitoring your levels.

FOR PODCASTS AND VOICEOVERS For podcasters and voiceover artists, 32-bit float ensures full quality audio for the entire dynamic range of a performance. It also protects against clipping when levels are not being monitored.

MORE CONTROL The UAC-232 Mix Control software allows you to modify I/O routing, activate loopback, and control input and monitoring levels. You can also activate Music mode to route to your DAW or Streaming mode combining all inputs into a single signal for streaming software.

LOOPBACK The Loopback function combines the input audio with playback from your computer and routes it to your software. Perfect for adding background music to your stream or singing live with an instrumental track.

LATENCY-FREE MONITORING Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software. Mix Control allows you to adjust volume and pan for your direct monitor feed.

THE CONNECTIONS YOU NEED

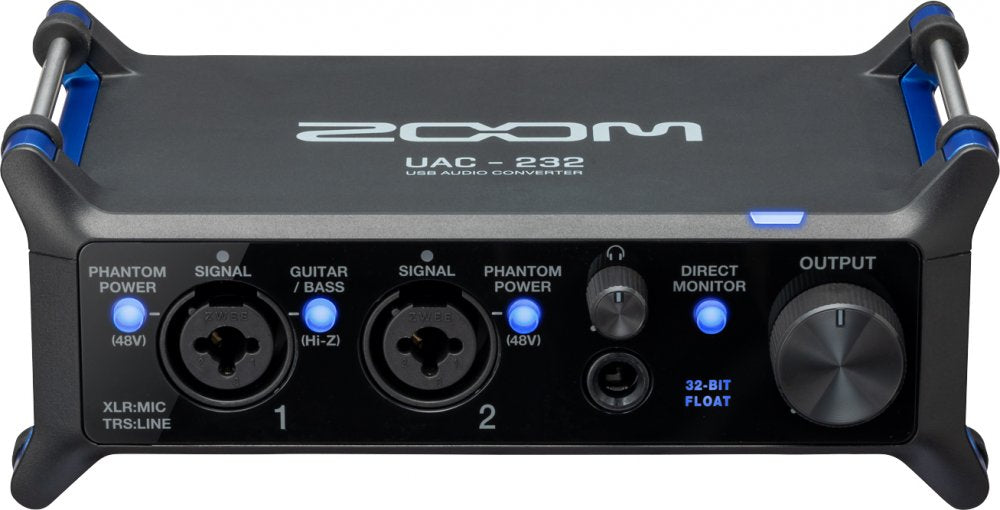

INPUTS The UAC-232 USB Audio Converter features two XLR/TRS combo inputs for mic or line level input with +48V phantom power available for condenser microphones. Use the Guitar/Bass button to activate Hi-Z for recording guitar directly.

POWERFUL HEADPHONE OUTPUT Monitor louder and clearer with the 100 milliwatt headphone output. Enough power to drive the most demanding headphones with no distortion.

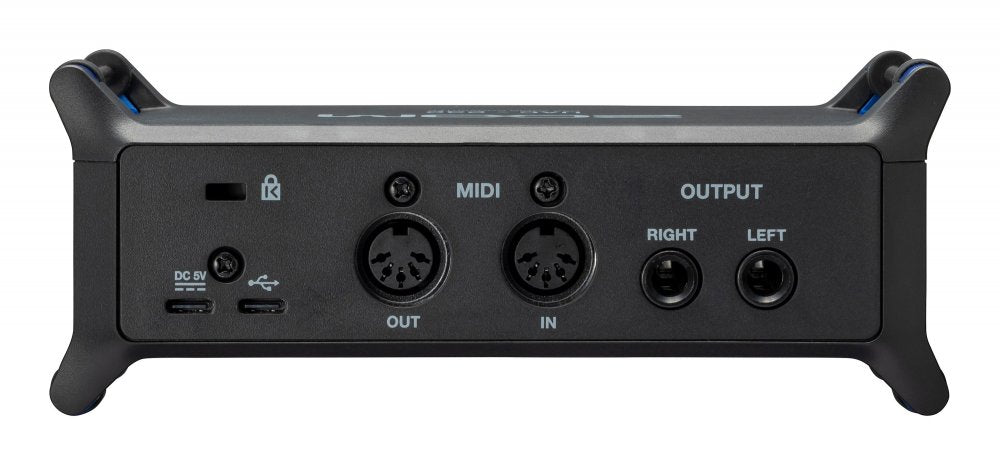

MAIN OUTPUTS To listen on studio monitors, the UAC-232 includes two TRS main outputs with volume control.

MIDI The MIDI in/out allows you to connect to external MIDI gear such as drum machines, synths and keyboards.

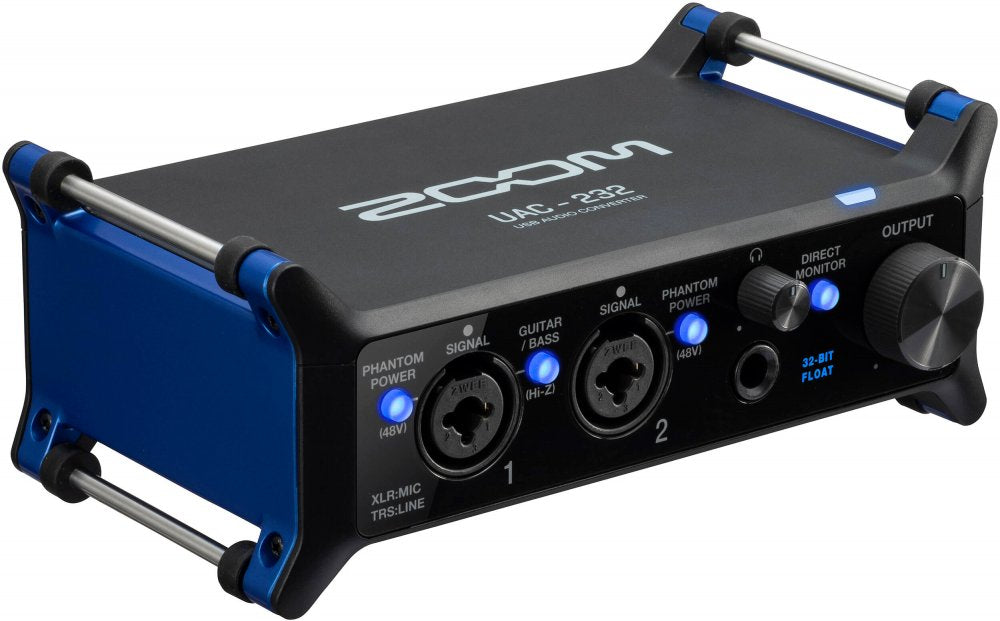

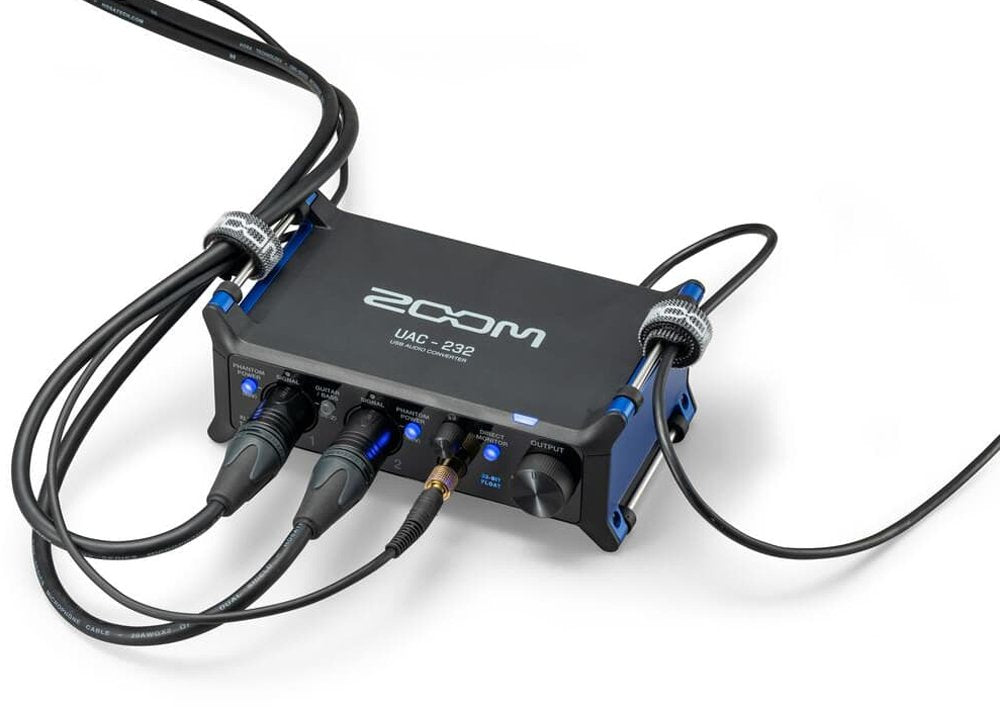

COMPACT DESIGN The UAC-232 Audio Converter can be placed anywhere. Set it up vertically, horizontally or even mount it to a mic stand with the included hook-and-loop straps.

COMPATIBILITY Connect the UAC-232 via USB when recording and streaming on PC and Mac with software like Cubase, Pro Tools, OBS and more.

Record and stream in 24-bit with iOS devices using Apps such as Garage Band, YouTube, and instagram.
 *Bus powered with PC, Mac and use external power when working with a lightning enable iOS device

RECORD AND STREAM WITH 32-BIT FLOAT

• Dual AD circuitry with 32-bit float recording technology

• High-quality mic preamps equivalent to those of the F6

• 2x XLR/TRS combo inputs / Headphone output / 2x TRS outputs

• Up to 192 kHz sample rate

• Compatible with Windows, Mac, and iOS devices (Android not supported)

• Mix Control Software mixer for Windows, Mac, and iOS devices

• MUSIC and STREAMING modes available via the software to optimize I/O

• Loopback available via the Mix Control software

• Vertical or horizontal use

• MIDI IN/OUT for external MIDI equipment

• High-power headphone outputs (100 mW)

• Bus-powered operation

GENERAL SPECIFICATIONS:

• Product Type: USB Audio Interface

• Model: Zoom UAC-232

• Channels: 2 inputs / 2 outputs

• Bit Depth: 32-bit float

• Sample Rate: Up to 192 kHz

• Compatibility: Windows, macOS, iOS

• Power: Bus-powered via USB; external power required for Lightning-enabled iOS devices

INPUTS:

• 2 x XLR/TRS combo inputs (mic/line/Hi-Z)

• Phantom Power: +48V, switchable

• Hi-Z Support: Yes, for direct guitar/bass input

• Preamps: Low-noise, same as Zoom F-Series recorders

OUTPUTS:

• 2 x 1/4" TRS balanced line outputs

• 1 x 1/8" (3.5 mm) stereo headphone output

• Headphone Output Power: 100 mW

MIDI:

• MIDI In: 1 x 5-pin DIN

• MIDI Out: 1 x 5-pin DIN

CONTROLS AND INDICATORS:

• Output Volume Knob: Controls main output level

• Headphone Volume Knob: Controls headphone output level

• Direct Monitor Switch: Enables zero-latency monitoring

• 32-Bit Float Indicator: Illuminates when operating in 32-bit float mode

• Signal Indicators: Light when signals are being input

SOFTWARE:

• Zoom UAC-232 Mix Control: Software for I/O routing, loopback, input, and monitoring level control

• Modes: Music mode for DAW routing; Streaming mode combines all inputs into a single signal for streaming software

• Loopback Function: Combines input audio with playback from the computer for streaming

PHYSICAL:

• Dimensions: 164 x 105 x 65 mm

• Weight: 355 g

• Mounting: Can be placed vertically, horizontally, or mounted to a mic stand with included flat cable straps

INCLUDED ACCESSORIES:

• USB-C Cable

• Flat Cable Fasteners (x2)

• Quick Tour Guide
