DPA 4080-DC-D-B00

The 4080-DC-D-B00 Miniature Cardioid Lavalier Microphone is designed for speech reproduction in broadcast, conference, and live applications in the studio or the field. It features a pre-EQ'd 4dB presence boost to help accentuate vocals and the speaking range. The 4080 can be clipped to both left- and right-buttoned shirts and includes black and white pop filters.

This Core 4080 microphone captures the human voice with a high degree of definition and offers maximum side rejection and natural sonic focus on the subject. The microphone cable is 3.9' in length and terminates to a MicroDot connector that is compatible with MicroDot-equiped wireless systems. It can be clipped to both left- and right-buttoned shirts and includes black and white pop filters.

• Excellent speech reproduction

• Discreet, compact design

• Fist both left and right buttoned shirts

• Includes both black and white pop filters

• Modular adapter system fits most professional wireless systems

• Pre-EQ'd 4 dB Presence Boost

• Directional characteristics: Cardioid

• Principle of operation: Pressure gradient

• Cartridge type: Pre-polarized condenser element with vertical diaphragm

• Frequency range, ± 2 dB: 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)

• Sensitivity, nominal, ±3 dB at 1 kHz:: 20 mV/Pa; -34 dB re. 1 V/Pa

• Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))

• S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)

• Total harmonic distortion (THD): < 1 % up to 123 dB SPL peak, < 1 % up to 120 dB SPL RMS sine

• Dynamic range: Typ. 100 dB

• Max. SPL, peak before clipping: 134 dB

• Output impedance: 30 - 40 ohm

• Power supply: For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.

• Connector: MicroDot

• Color: Black

• Microphone weight: 15 g (0.5 oz) incl. cable and MicroDot connector

• Microphone diameter: 10 mm (0.4 in)

• Capsule diameter: 5.4 mm (0.2 in)

• Microphone length: 30 mm (1.2 in)

• Cable length: 1.2 m (4 ft)

• Cable color: Black

• Cable diameter: 1.6 mm (0.06 in)

• Cable drive capability: Up to 300 m (984 ft)

• Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin

IN THE BOX:

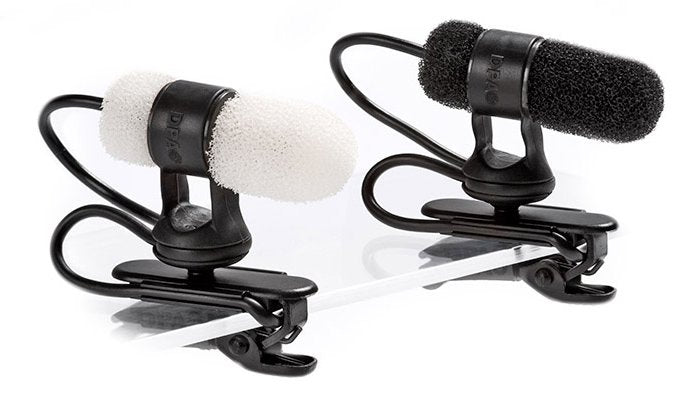

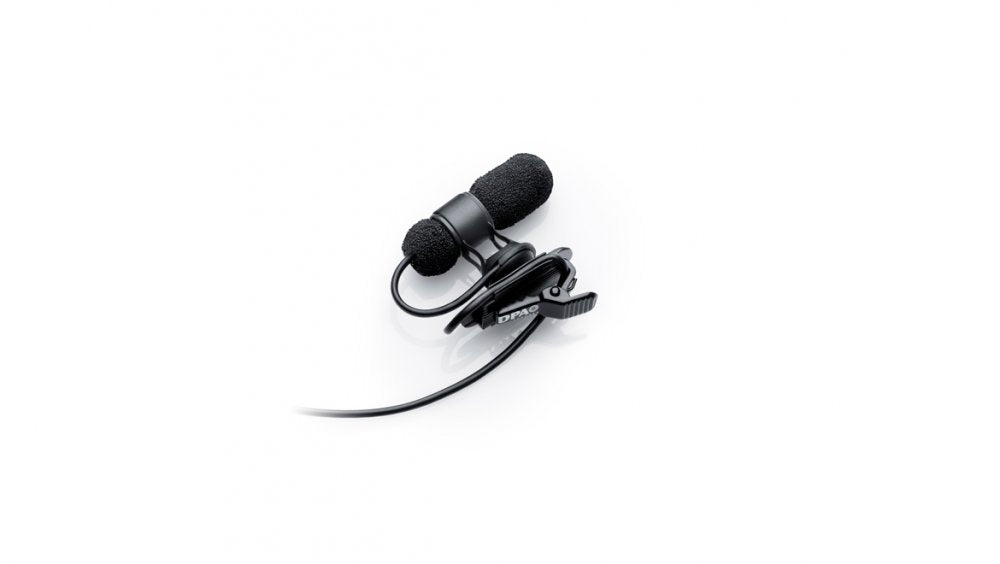

• DPA Microphones d:screet Core 4080 Miniature Cardioid Lavalier Microphone with MicroDot Connector, Black color

• Black Pop Filter

• White Pop Filter
