Wisycom BFLR1

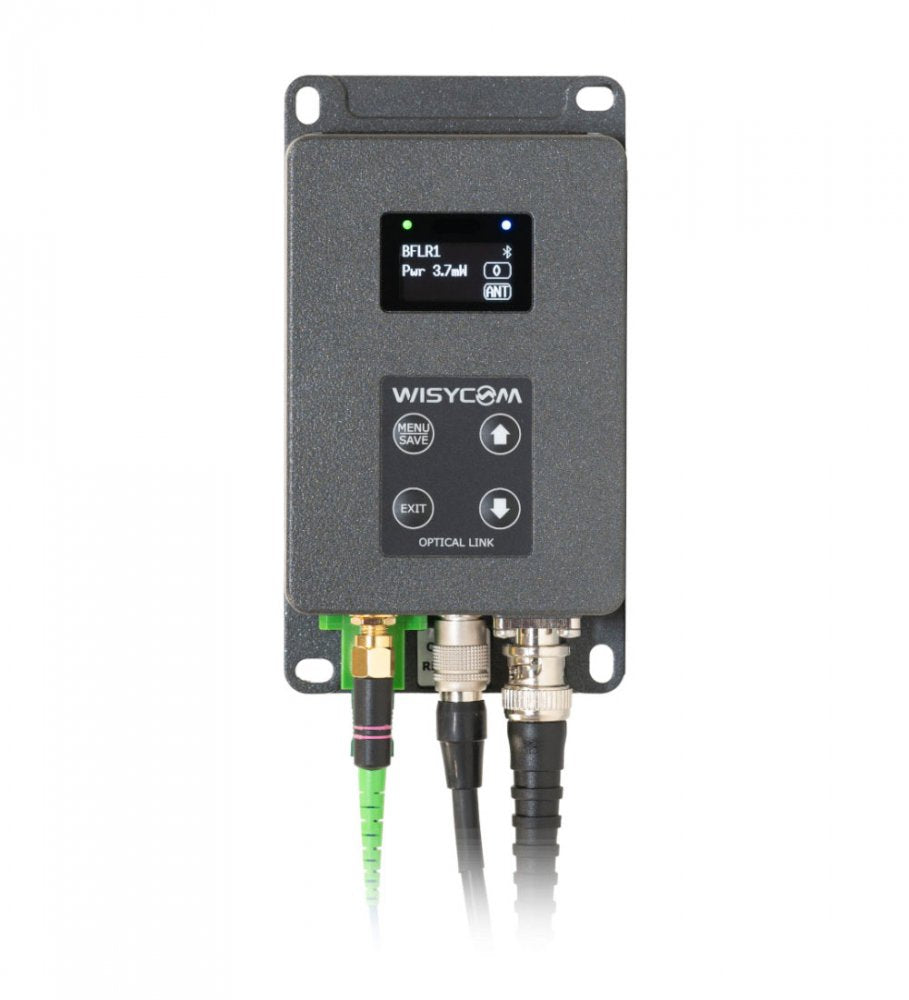

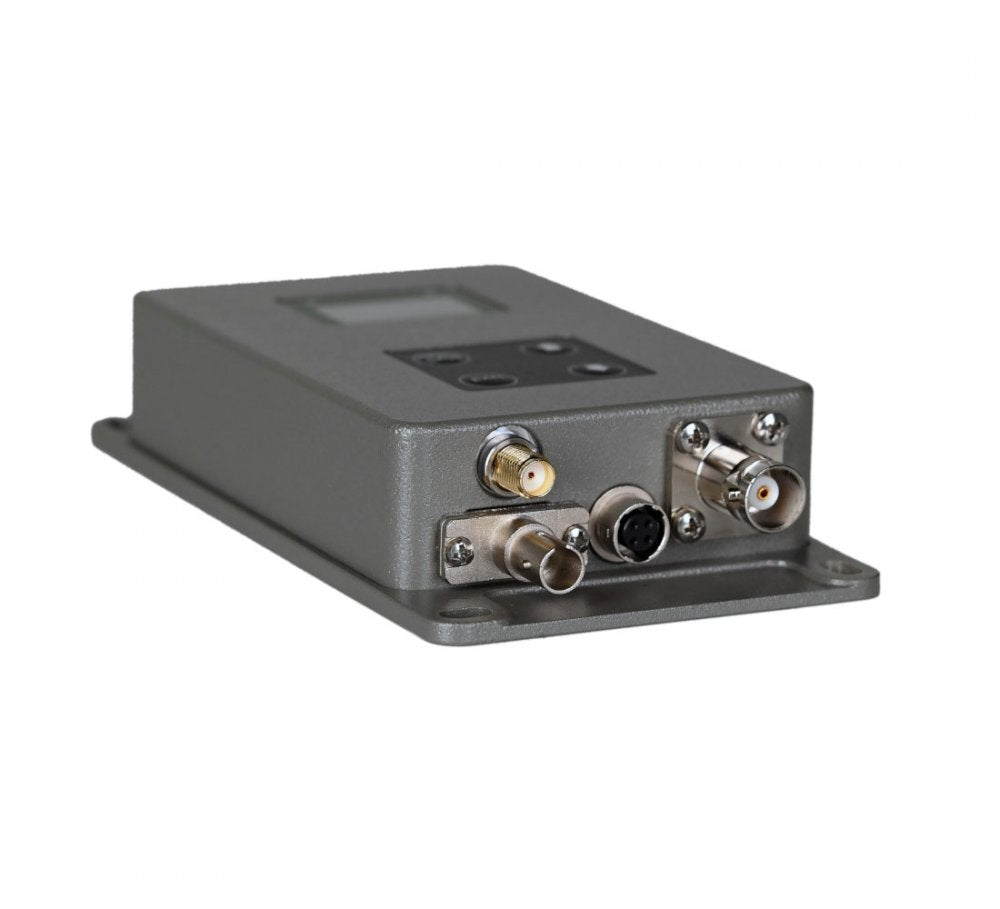

The Wisycom BFLR1 Module is a compact RF-over-fiber receiver designed to convert optical signals into RF with precision and reliability. Ideal for professional broadcast and live production environments, it supports two operating modes: ANT mode for receiving signals from remote antennas, and IFB mode for sending low-power IFB/IEM signals over fiber.

With a wide RF bandwidth of 170"1260 MHz, integrated Bluetooth control via the Wisycom BT App, and a high-contrast OLED display, the BFLR1 offers flexible, real-time configuration. It features selectable bandpass filters, remote power capabilities, and a durable design-making it a powerful tool for expanding and stabilizing wireless coverage in complex RF environments.

• RF Over Fiber Conversion: Converts optical signals back into RF signals using an internal photodiode.

• Dual Operating Modes: Supports ANT mode for remote antenna reception and IFB mode for low-power IFB/IEM signal transmission.

• Wide Frequency Range: Operates across 170-1260 MHz for broad RF coverage.

• Bluetooth App Control: Real-time monitoring and parameter adjustment via the Wisycom BT App.

• External Amplifier Support: Provides 12V, 200mA DC power for external devices like PAW or LBP amplifiers (in IFB mode).

• Smart LED Indicators: Dual RGB LEDs show system status, RF overload, Bluetooth activity, and alarms.

• High-Visibility OLED Display: Includes 128 - 64 pixel white OLED with intuitive 4-button interface.

• Flexible Power Options: Runs on 9-18 VDC and supports power over RF connector in ANT mode.

• Compact and Durable Design: Features M4 screw mounting and operates in temperatures from -10 degree C to +55 degree C.

GENERAL SPECIFICATIONS:

• Product Name: Wisycom BFLR1 Module

• Type: Portable RF over Fiber unit

• Function: Converts optical signal to RF signal via photodiode

RF SPECIFICATIONS:

• Frequency Range: 170 to 1260 MHz

• RF Connector: BNC F or N F on request

• Antenna Booster Output: 12 Vdc 150 mA max

• External Amplifier Power: 12 Vdc 200 mA max

• Tunable Filter: 470 to 758 MHz with 40 MHz bandwidth

• Fixed Filter Versions: F1 for Europe USA UK, F2 for Japan Korea

• Selectable Band Pass Filters: 17 combinations

• RF Working Modes: ANT for reception, IFB for transmission

OPTICAL SPECIFICATIONS:

• Optical Connector: SC APC, ST APC or LC APC on request

• Optical Power Output: 6 dBm

• Wavelength Output: 1550 nm

• Input Optical Power Range: minus 6 dBm to plus 6 dBm

• Wavelength Range: 1300 to 1650 nm

INTERFACE AND DISPLAY:

• Control: 4 button interface with display menu

• Remote Control: Bluetooth 5 via Wisycom BT App

• Display: 128 x 64 pixel OLED white display

INDICATORS:

• LEDs: Dual RGB LEDs for RF overload, booster, status, alarms, Bluetooth

POWER SPECIFICATIONS:

• Operating Voltage: 9 to 18 Vdc

• Connector: Hirose 4 pin

• Power Consumption BFLT1: 2 W to 3.5 W

• Power Consumption BFLR1: 1.2 W to 3.5 W

MECHANICAL SPECIFICATIONS:

• Mounting: 4 M4 screw holes

• Temperature Range: minus 10 to plus 55 Celsius

• Dimensions: 70.2 x 127.1 x 26.1 mm
