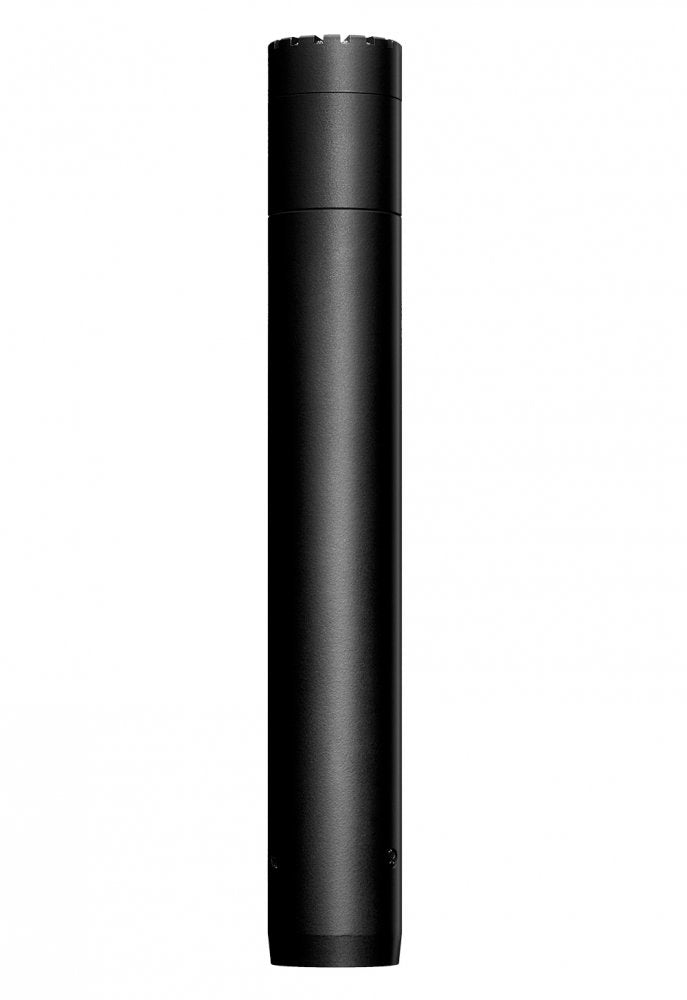

Audio Technica AT4049B

Recommended for professional recording and critical applications in broadcast, this versatile microphone may be used with confidence in a wide variety of professional miking applications. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. Its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments. The microphone is fully RoHS-compliant " free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

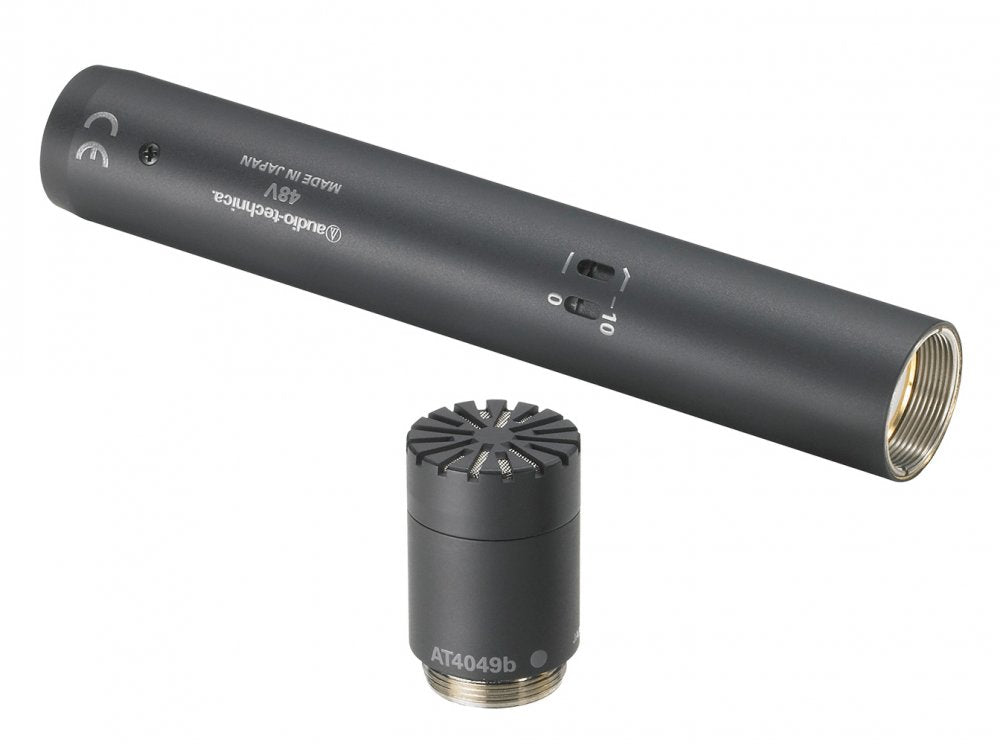

The AT4049b consists of two modular subassemblies: an AT4900b-48 body and an AT4049b-EL omnidirectional head capsule (both available separately). Additional interchangeable capsules are available in cardioid (AT4051b-EL) and hypercardioid (AT4053b-EL).

• Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement

• Omnidirectional polar pattern provides maximum ambient pickup

• Direct-coupled, balanced output results in a clean signal even under high-output conditions

• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

• Switchable 80 Hz hi-pass filter and 10 dB pad

• Rugged turned-brass microphone housing for enduring dependability

• State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards

• RoHS-compliant " free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

ELEMENT:

Externally polarized (DC bias) capacitor

POLAR PATTERN:

Omnidirectional

FREQUENCY RESPONSE:

20-20,000 Hz

LOW FREQUENCY ROLL OFF:

80 Hz, 18 dB/octave

OPEN CIRCUIT SENSITIVITY:

-34 dB (19.9 mV) re 1V at 1 Pa
