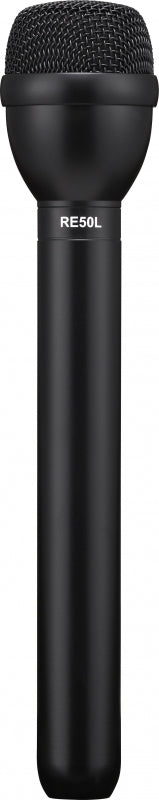

Electro Voice RE50L

An advancement in shock-mounting techniques, it was designed particularly for handheld broadcast and sound reinforcement use. All handling noise, clothing noise, and even cord shock have been isolated from the microphone element so that mechanically induced noise is greatly reduced. By use of a high-mass zinc internal acoustic chamber, shock mounted within the machined-aluminum outercasing, the RE50L offers a degree of isolation unprecedented in omnidirectional dynamic microphones. The internal transducer uses a mechanical nesting concept all its own. Each part is nested inside another so that the transducer (head assembly) is nearly a solid structure. It is highly resistant to damage from shock.

The diaphragm is unaffected by temperature extremes and atmospheric conditions. A carefully designed integral windscreen and blast filter provides excellent protection from wind noise, excessive sibilance and annoying "P-popping." The RE50L has a grille that bounces back to retain its shape. A four-stage pop filter prevents dust and magnetic particles from reaching the diaphragm. The RE50L's attractive, nonreflecting, semi-gloss black finish is ideal for on-camera use.

• Ultimate news gathering microphone

• Extremely effective and unique handling noise isolation system

• Unsurpassed ruggedness and reliability in every environment

• Self generating, no battery or phantom power required

• Consistent response with distance, no muddy lows when used close to lips

• 9.5" total length

• Omnidirectional polar pattern

• Dynamic element

• Extremely low handling noise via Dyna-Damp™ "mic in-a-mic" shock mount system

• Impervious to wind noise and p-pops via its four- stage pop filter

• Withstands high humidity, temperature extremes, and corrosive salt air

WEIGHT NET:

10.79oz (306g)

HEIGHT:

242mm (9.53")

CASE MATERIAL:

Aluminum

CONNECTOR TYPE:

3-pin XLR

DIAMETER (MAX):

49mm (1.93")

ELEMENT:

Dynamic

FAMILY:

RE Series Broadcast

FINISH:

Semi-Gloss Black

FREQUENCY RESPONSE (-3 DB):

80 - 13,000 Hz

IMPEDANCE, LOW-Z BALANCED:

150

MIC TYPE:

Handheld

OPEN CIRCUIT VOLTAGE:

1.8 mV/PascalmV/Pascal

POLAR PATTERN:

Omni

POWER REQUIREMENT:

Passive
