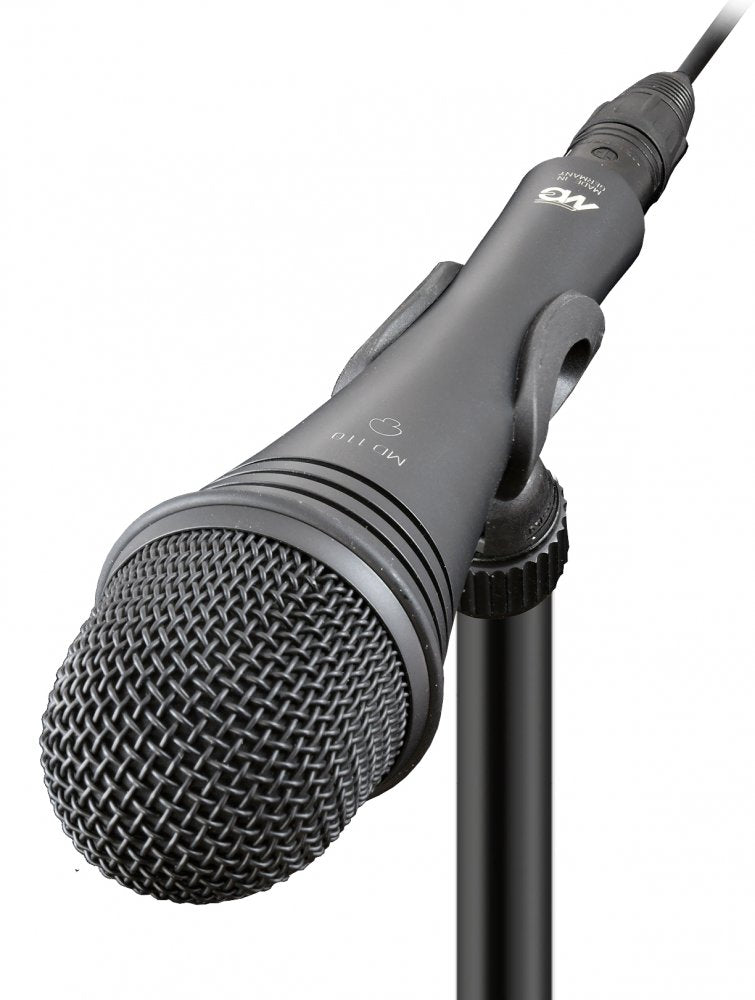

Gefell MD110

In line with their use, they are optimised for close mixing use in respect of their frequency response, low frequency characteristics and high sound pressure levels. A level frequency amplitude response, and a constant frequency directional pattern combine to produce high immunity against feedback during operation with sound reinforcement installations. The integrated acoustic filter in the protection grill serves to significantly reduce the effects of wind and popping, and the elastic capsule suspension system minimises handling noise. Various directional patterns serve both for selectively specific capture of desired sound sources, and to minimise pick up of undesired noise sources. There is a choice between electrostatic condenser microphones, and electrodynamic moving coil microphones, which can be used statically on a microphone stand, or dynamically in the hand.

CAPSULE SYSTEM:

Pressure gradient

POLAR PATTERNS:

cardioid | hypercardioid

FREQUENCY RANGE / HZ:

50 ... 18000

SENSITIVITY / MV/PA:

1,6 | 1,5

EQUIVALENT LOUDNESS LEVEL / DB(A):

-

MAX. SPL (0,5%) / DB:

-

POWER SUPPLY:

XLR

In Wooden case
