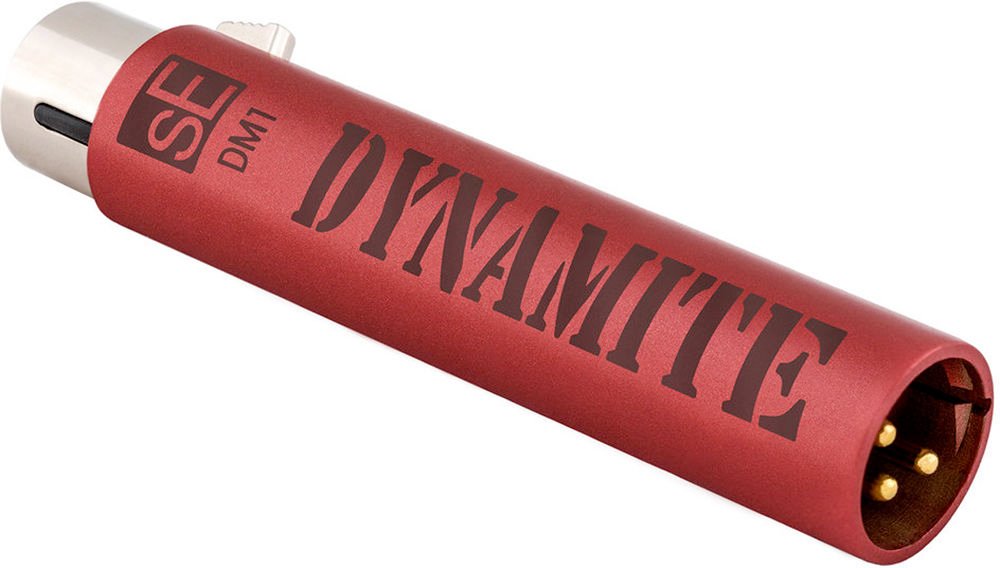

SE DM1 Dynamite

The SE DM1 Dynamite is a sleek and robust dynamic microphone preamp designed to give your microphones an extra boost in clarity and volume. Ideal for studio and live settings, it provides up to 28 dB of clean gain, allowing dynamic and ribbon microphones to perform at their best, even when paired with lower-gain preamps or recording interfaces. This compact device helps reduce noise interference and ensures pristine sound quality, making it a popular choice among podcasters, vocalists, and instrumentalists who seek professional-grade audio output without introducing distortion or hum.

What sets the SE DM1 Dynamite apart is its ease of use"simply plug it in between your microphone and preamp, and it works seamlessly without the need for any external power source (powered by phantom power from your interface or mixer). Its durable, metal construction is built to withstand the rigors of frequent use, while its compact and minimal design makes it easy to integrate into any audio setup. Whether you're in the studio or on stage, the DM1 Dynamite ensures your sound is always punchy and clear, no matter the environment.

• 28dB of Clean Gain: Boosts low-output passive microphones, such as dynamic and ribbon mics, providing a strong signal for recording and live use.

• Class-A Design: Ensures high-quality, transparent amplification with no added coloration to the original sound.

• Low Noise and Impedance: Maintains signal clarity, minimizing hum, buzz, and RF interference, even over long cable runs.

• Rugged, All-Metal Build: Designed to withstand tough environments on stage or in the studio.

• Gold-Plated XLR Connectors: Provides a reliable, loss-free connection between your mic and preamp.

GENERAL SPECIFICATIONS:

• Type: Active inline preamp for passive dynamic and ribbon microphones

• Gain: +28 dB of clean, transparent gain

• Frequency Response: 10 Hz - 120 kHz (-0.3 dB)

• Power Requirements: 48V Phantom Power (P48 standard, IEC 61938)

• Input Impedance: 10 kOhms

• Output Impedance: 135 Ohms

• Recommended Load Impedance: >1k Ohms

• Max Output Level (0.5% THD): 8.3 dBV (2.6 V)

• Output Noise Level: 9 µV (A-weighted)

• Current Consumption: 3.0 mA

DESIGN FEATURES:

• Class-A electronics with high-grade FETs for low noise

• Dedicated output buffer amplifier ensures consistent gain regardless of load

• Ultra-low output impedance for long cable runs with reduced RF interference

• Gold-plated XLR connectors for reliable, loss-free signal connection

• All-metal, slim, rugged housing, suitable for studio or on-stage use

DIMENSIONS & WEIGHT:

• Length: 96 mm (3.78 inches)

• Diameter: 19 mm (0.75 inches)

• Weight: 96 grams
