SE SE8

Fit for any challenges in the studio or on stage, the sE8 is a brand new high-performance handcrafted small-diaphragm condenser, fresh from the labs at sE.

RECOMMENDED USE Acoustic guitar, choir, orchestral + strings, piano, woodwinds, drums, percussion, cymbals / OH

• Hand-made capsule & all-metal build

• Balanced sound & sophisticated backplate design

• Perfect for sources like high-hats and drum overheads

• One of the quietest small-capsule mics on the planet

• Highest dynamic range and SPL handling in its class

• Integrated attenuation pads and low-cut filters

• Compatible with our sE8 omni capsule

COMPONENTS:

CAPSULE:

Hand-crafted 1/2" True Condenser

POWER:

ELECTRICAL IMPEDANCE:

110 Ohms

RECOMMENDED LOAD IMPEDANCE:

>1k Ohms

CONNECTIVITY:

3-pin male XLR connector

POWERING:

48V Phantom Power (P48 according to IEC 61938)

:

SOUND:

POLAR PATTERNS:

Cardioid

FREQUENCY RANGE:

20 Hz - 20 kHz

SENSITIVITY:

25 mV / Pa (-32 dBV)

MAX SPL:

139 / 149 / 159 dB (0 / 10 / 20 dB pad) (0.5% THD @ 1kHz)

EQUIVALENT NOISE LEVEL:

13 dB

DYNAMIC RANGE:

126 / 136 / 146 dB (0 / 10 / 20 dB attentuation pad)

SIGNAL TO NOISE RATIO:

81 dB

LOW-CUT FILTER:

80 / 160 Hz, 6 dB / Oct, switchable

ATTENUATION PAD:

10 / 20 dB, switchable

CURRENT CONSUMPTION:

2.7 mA

DIMENSIONS:

MIC DIAMETER:

23 mm (0.91 in.)

MIC LENGTH:

120 mm (4.72 in.)

MIC WEIGHT:

141 g (4.97 oz.)

:

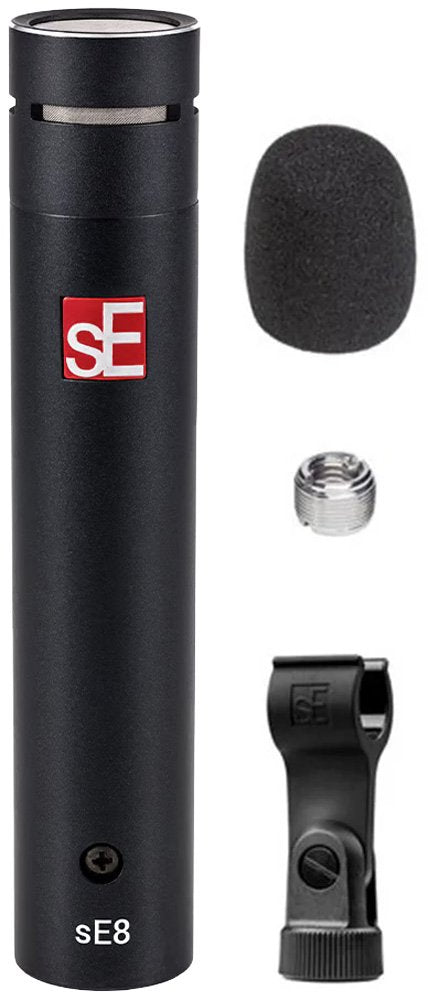

WHAT'S IN THE BOX:

sE8 microphone

mic clip (with thread adapter)

wind screen
