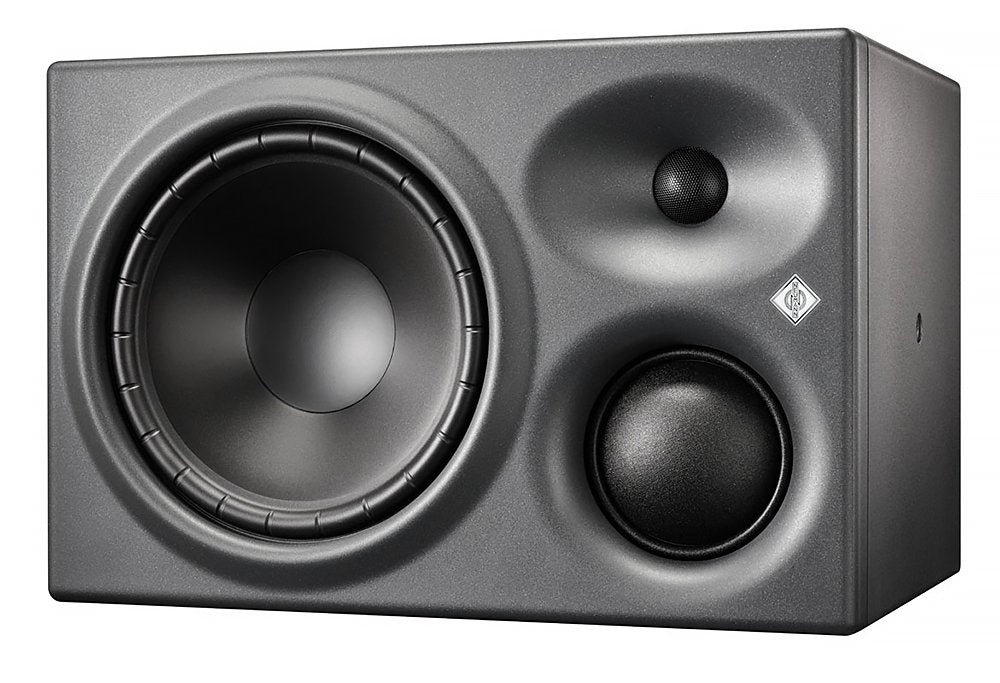

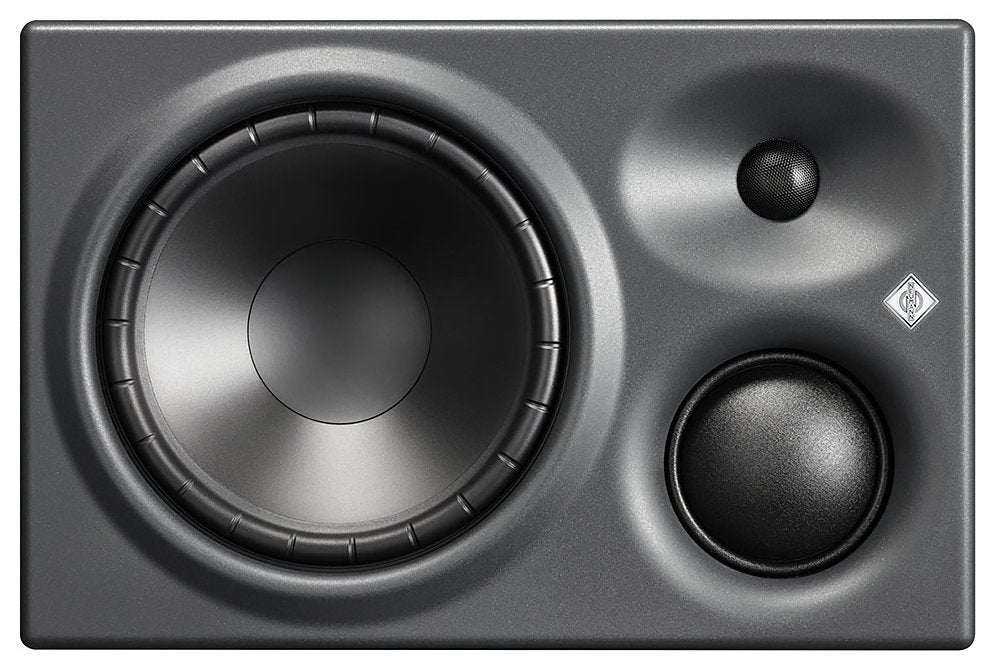

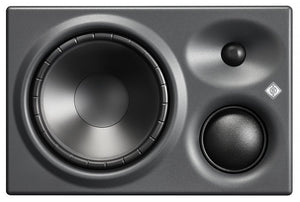

Neumann KH 310 A (Right)

EXPANDED MIDRANGE PRECISION " DRY BASS SOUND With its specially designed midrange driver, the compact KH 310 is particularly suited for precise work with speech, vocals, guitars and other instruments that have a midrange emphasis. Its closed design enables a very fast transient response. The associated low harmonic distortion guarantees a neutral reference sound to meet the highest standards.

The KH 310 three-way active tri-amplified monitor features a Mathematically Modeled Dispersion Waveguide (MMD), flexible acoustical controls, various input options and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 310 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

It can be used in project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.

• Powerful alloy fabric dome

• Elliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersion

• Fabric dome, neodymium magnet, midrange driver

• Long throw composite sandwich cone bass driver with Extremely Linear Force Factor (ELFF) and ribbed surround

• Two-color + dimmable Neumann logo

• Compact sealed three-way cabinet design (magnetically shielded)

• One-piece front panel with no discontinuities

• Powerful analog class AB amplifiers with large headroom

• Independent thermo limiters for woofer, midrange dome and tweeter to protect the voice coils. Woofer soft clip and excursion limiters

• Production consistency due to individual hand-alignment in final test

• 4-position bass, low-mid and treble acoustical controls

• Wide range input gain and output level controls

• Ground lift

• Universal switched-mode power supply (100 ... 240 V)

• Extensive mounting hardware options

• Optional robust metal grille

• Optional transportation accessories

Free field frequency response ±6 dB: 30 Hz ... 22 kHz

Free field frequency response ±3 dB: 34 Hz ... 21 kHz

Free field frequency linearity deviation between 100 Hz and 10 kHz : ± 1.1 dB

Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL

Sine wave output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (>85 Hz)

Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 116.3 dB SPL

Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 110.3 dB SPL

Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 106.8 dB SPL

Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 108 dB(C) SPL

Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced: ±0.87; ±0.39; ±0.23 dB

Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range): 100 dB(C) SPL

Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer): 107 dB(C) SPL

Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range): 93 / 99 dB(C) SPL

Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer): 94 / 100 dB(C) SPL

Display Brightness: White: 100%/60%/30%/off; Red: 100%/60%/30%

Output power midrange amplifier (THD+N with limiter deactivated: 10%): 90 W

Output power midrange amplifier (THD+N with limiter deactivated: 0.1%): 70 W

Midrange : 5 mm (3") with magnetic sheilding

Bass Extension (Hz, -6 dB): 30

Maximum output level (dB SPL): 116.3

Max. Listening Distance up to (m): 6

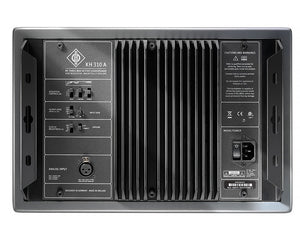

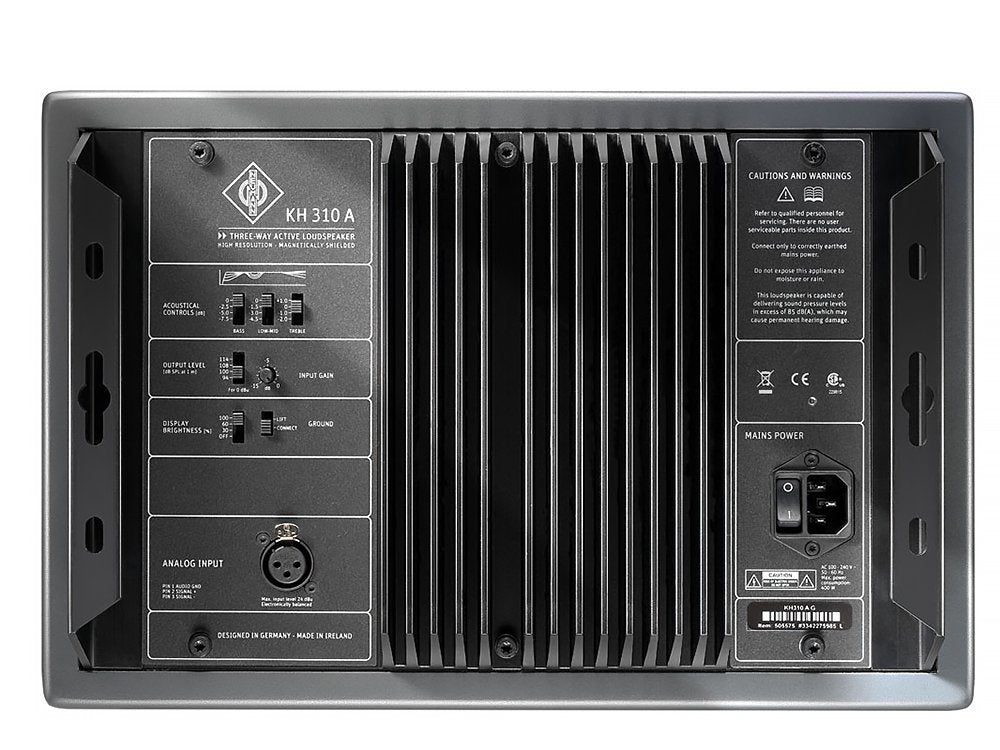

Analog input(s): XLR: analog electronically balanced

Analog input impedance: >13k Ohms

Max. input level: +24 dBu

Common mode rejection ratio (CMRR): >56 dB @ 15kHz

Input gain control (sensitivity): 0 dB ... -15 dB

Output level control (output level in 1 m based on 0 dBu input level): 94; 100; 108; 114 dB SPL

Equalization: Bass: 0; -2.5; -5; -7.5 dB

Equalization: Low-Mid: 0; -1.5; -3; -4.5 dB

Equalization: Treble: +1; 0; -1; -2 dB

Controller design: Analog; active

Crossover frequency: 650 Hz and 2.0 kHz

Crossover slope: 24 dB/oct; 4th order

Protection circuitry: Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters. Amplifier overheat.

Infrasonic filter: frequency; slope: 15 Hz; 6 dB/oct.

Display: On; Normal Operation: Neumann logo "White"

Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute: Neumann logo "Red"

Output power woofer amplifier (THD+N with limiter deactivated: 10%): 210 W

Output power tweeter amplifier (THD+N with limiter deactivated: 10%): 90 W

Output power woofer amplifier (THD+N with limiter deactivated: 0.1%): 150 W

Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%): 70 W

Mains Power Supply: input voltage; frequency 100-240V; 50/60 Hz

Power consumption (230 V / 100 V): Idle: 24 W

Power consumption (230 V / 100 V): Full output: 300 W

Cabinet material: polyurethane front, wooden sleeve, aluminum electronics panel

Cabinet surface finish; color (front / back): Painted; metallic anthracite (RAL 7021) / black (RAL 9005)

Operating conditions: +10 C to +40 C (+50 F to +104 F); <90% RH, non-condensing

Transport/storage conditions: -25 C to +70 C (-13 F to 158 F); <90% RH; non-condensing

Woofer: 210 mm (8 1/4") magnetically sheilded

Tweeter: 25 mm (1") with protecting black metal grille

Mounting points: 2 x M8 on side panels; thread depth from outside of cabinet 25 mm (1");Rear panel screws for attaching LH 41 base plate

Product dimensions (height x width x depth): 253 x 383 x 292 mm (10" x 15 1/8" x 11 1/2")

External net volume: 28.3 liters

Packed dimensions (height x width x depth), mm (inches): 360 x 380 x 590 mm (14 1/8" x 15" x 23 1/4")

INCLUDED:

1 x Studio Monitor KH 310 R

3 x Mains cables (European, UK and US version)

4 x Self-adhesive feet

1 x Operating Manual

1 x Supplement "Getting Started Quickly"
