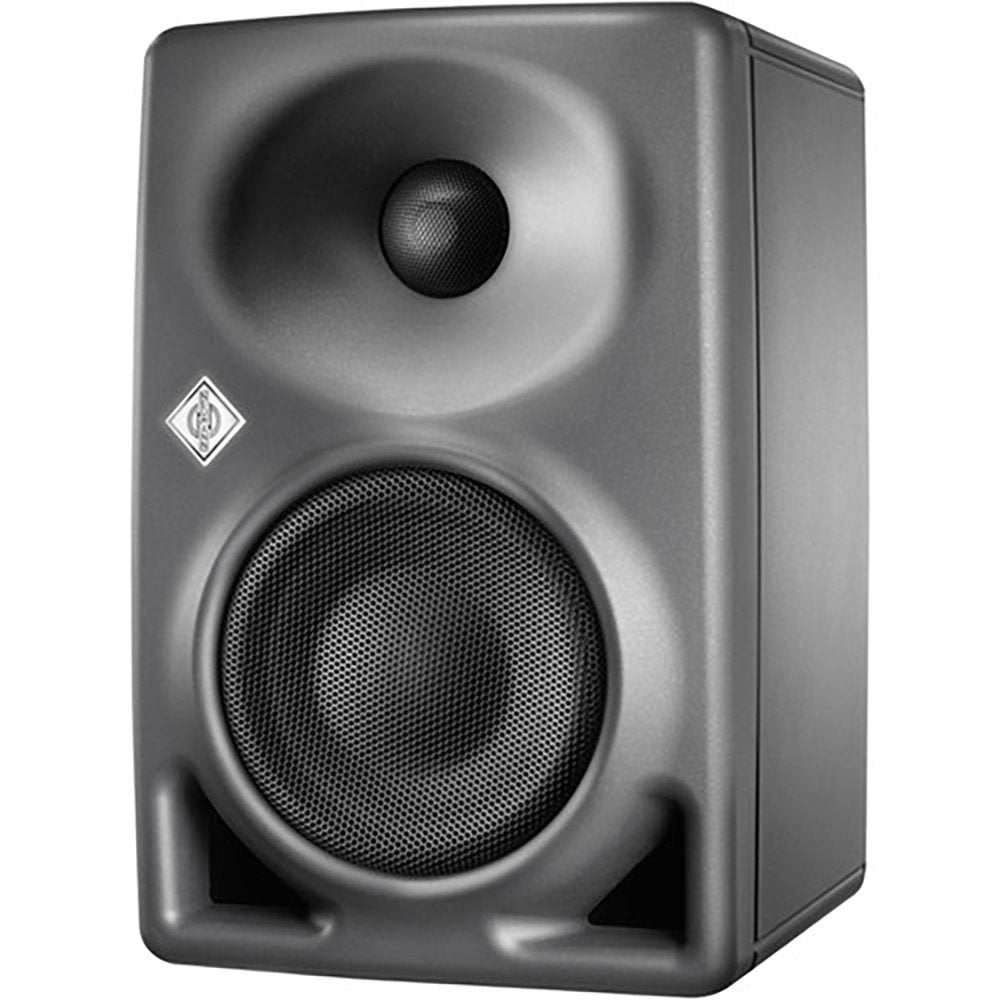

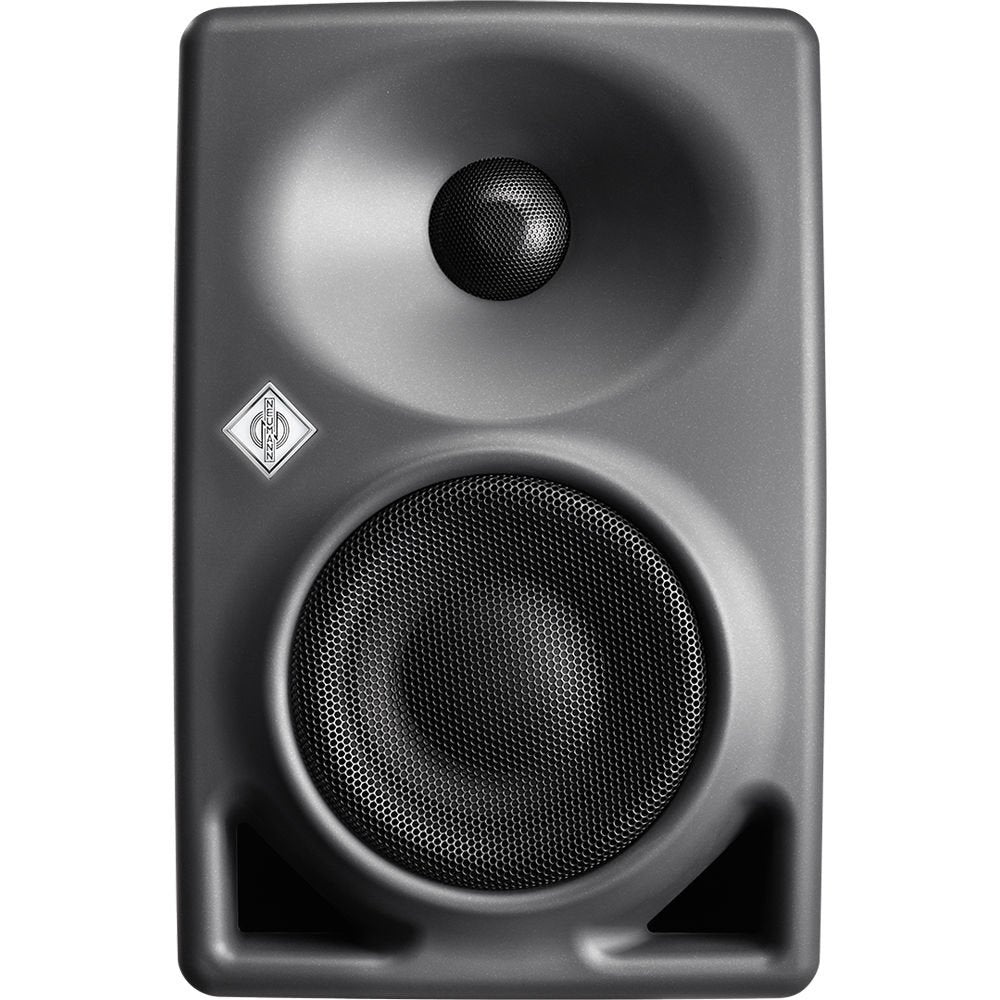

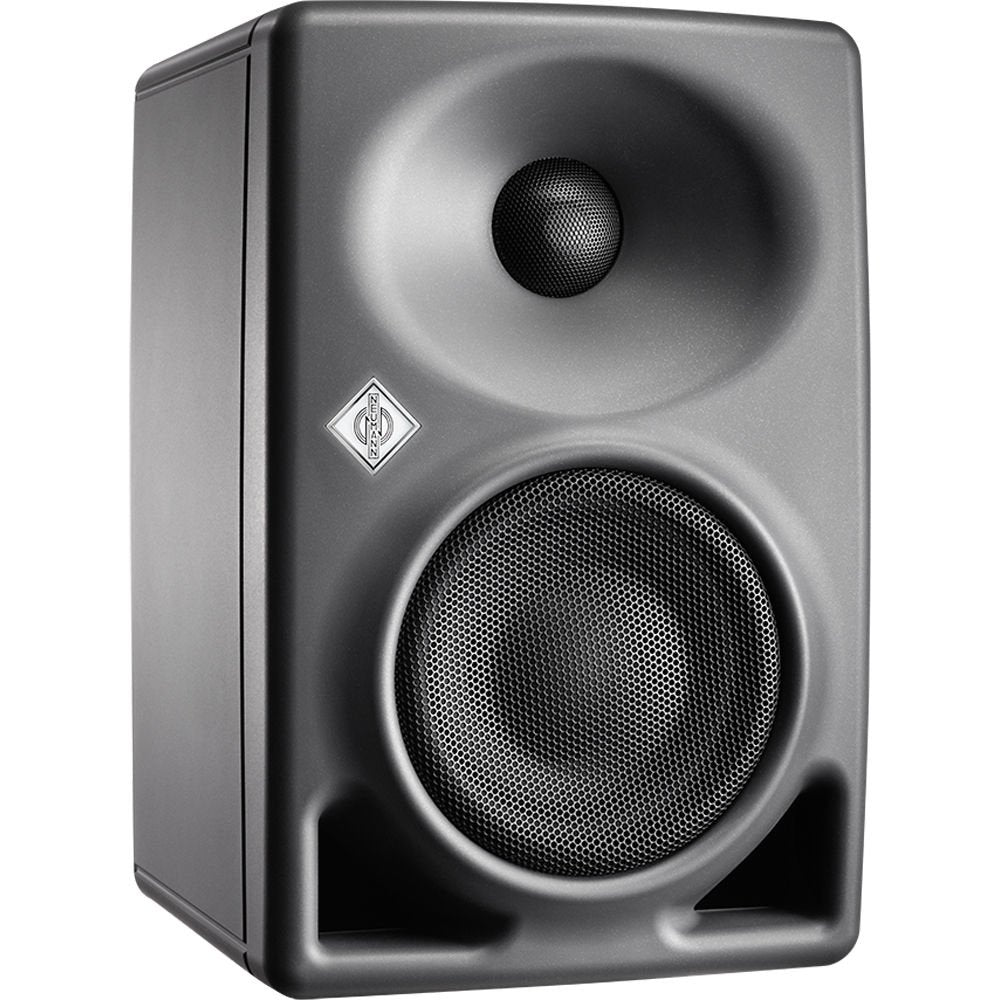

Neumann KH 80 DSP

The KH 80 DSP features a DSP engine with network control, a Mathematically Modeled Dispersion Waveguide (MMD), an analogue input and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.

• Top-shelf Neumann speaker technology in an affordable nearfield monitor

• Tried-and-true 4" x 1" nearfield speaker configuration is ideal for mixing suites and small studios

• Network-accessible DSP-regulated bi-amplification lets you configure your system from a central controller

• Manage multiple monitors from Mac, Windows, iOS, or Android platforms

• Mathematically Modeled Dispersion Waveguide (MMD) provides superior dispersion

• Premium analog technology ensures top-quality imaging and audio handling

ACOUSTICS :

-6 dB free field frequency response: 53 Hz ... 22 kHz, ± 6 dB

-3 dB free field frequency response: 57 Hz ... 21 kHz, ± 3 dB

Pass band free field frequency response: 59 Hz ... 20 kHz, ± 2 dB

Self-generated noise

(with input gain set to 100 dB for 0 dBu): < 20 dB(A) at 10 cm

Sine wave output with a THD < 0.5 % at 1 m: 90 dB SPL (>200 Hz)

Max. SPL in full space / calc. in half space at 3% THD at 1m: 102.8 / 108.8 dB SPL (averaged between 100 Hz and 6 kHz)

Bass capability: Max. SPL in half space at 3% THD at 1m: 92.1 dB SPL (averaged between 50 Hz and 100 Hz)

ELECTRONICS :

Bass amplifier output power (THD+N, 0.1%, 10%) : 90 W, 120 W

Treble amplifier output power (THD+N, 0.1%, 10%): 50 W, 70 W

Controller design: Digital, active

Crossover Frequency: 1.8 kHz

Crossover Slope: 48 dB/oct, 8th order with phase correction

Equalization - Low Mid: 0, -1.5, -3, -4.5 dB

Equalization - via Neumann.Control software: 8 x full parametric IIR + low / high shelf global balance

FIR phase correction: Linear phase (170 Hz ... 16kHz, +/- 45), Analog emulation

Latency A-D-A - linear phase, analog emulation mode: 2 ms, 0.5 ms

Protection circuitry: Independent soft clip, peak and thermo limiters for woofer and tweeter. Woofer excursion limiter.

Infrasonic filter - frequency; slope: 61 Hz; 12 dB/oct.

Input: XLR / 6.3 mm (¼") Jack, analog electronically balanced

Impedance: 14k Ohms

Input gain control (sensitivity): 0 dB to -15 dB

Output level control: 94, 100, 108, 114 dB SPL

CMRR: >56 dB @ 15kHz

Max. input level: +24 dBu for 94 dB SPL setting

Digital converter: resolution, design: 24-bit DAC,

Digital internal sampling rate: 48 kHz

Dynamic range D-A; woofer, tweeter: 114 dB, 117 dB

User adjustable delay range: 0 ... 70 ms

Audio-video/lip sync max. frames 1.75 (40 ms frames) or 2.1 (33 ms frames)

Time-of-flight max. distance: 24 m (79 ft)

Resolution - time/distance: 0.1 ms / 3.44 cm (1 3/8")

Mains Power Supply, voltage; frequency: 100-240V; 50/60 Hz

Power consumption (230 V / 100 V):

Standby: <330 / <50 mW

Idle: 9 / 8 W

Full output: 180 W

Standby: Disabled, 90 mins (default), or user defined in software

INCLUDED:

1 x KH 80 DSP Studio Monitor

4 x Self-adhesive feet

1 x Mains Cable US

1 x Safety Guide

1 x Supplement "Getting Started Quickly"
