Neumann KK 120 NX

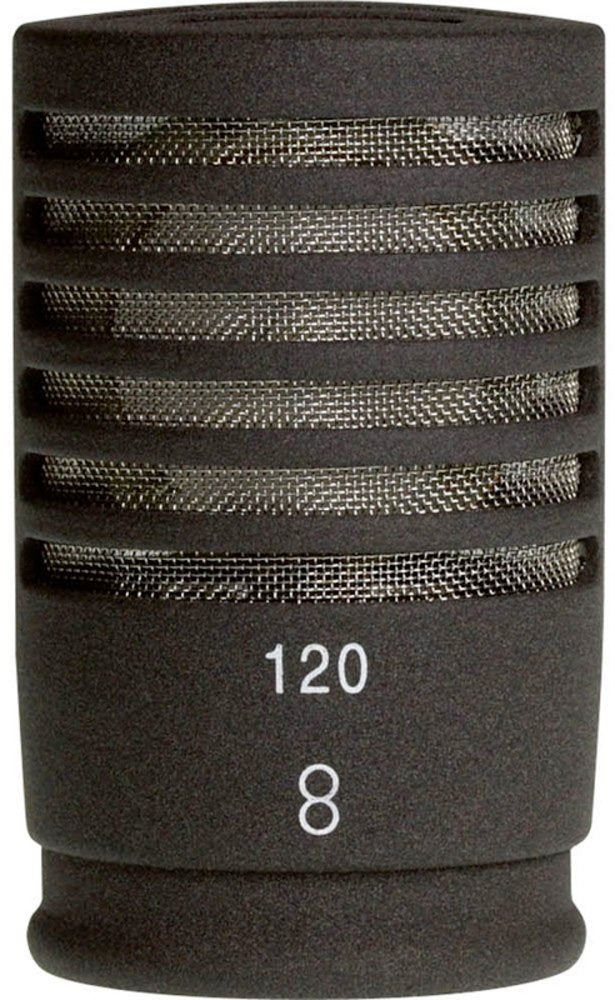

The KK 120 is a pressure gradient transducer with figure-8 characteristic, side-addressed. The figure-8 pattern is realized with a single 16 mm diaphragm. Thus, all sound field components reach the diaphragm directly. As a result, the frequency response curves and sensitivities for 0 and 180are identical. The KK 120 capsule may be combined with other capsules/microphones for MS-stereo recording.

• Figure 8 Polar Pattern

• For KM D and KM A Output Stages

Acoustical operating principle: Pressure gradient transducer

Directional Pattern: Figure-8, side-fire

Frequency Range: 20 Hz...20 kHz

Sensitivity at 1 kHz into 1 kohm: 12 mV/Pa

Rated Impedance: 50 ohms

Rated load impedance: 1000 ohms

Equivalent noise level, CCIR 1: 25 dB

Equivalent noise level, A-weighted 2: 15 dB-A

Maximum SPL for THD 0.5% 3: 140 dB

Maximum SPL for THD 0.5% with preattenuation 4: 150 dB

Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5: 69 dB

Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6: 79 dB

Supply voltage (P48, IEC 61938): 48 V

Current consumption (P48, IEC 61938): max. 3.5 mA

Matching connector: XLR 3 F

Weight (output stage): 70 g

Weight (capsule only): 37 g

Diameter: 24 mm

Length (capsule only): 40 mm

Length (microphone): 130 mm
