Neumann KK 133

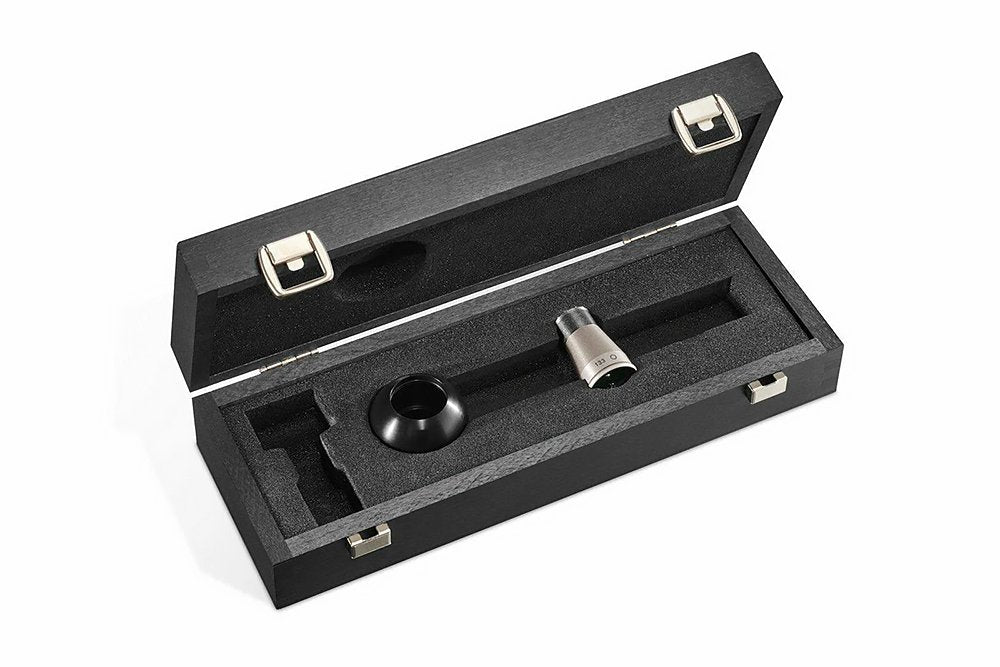

The KK 133 is a diffuse-field equalized pressure transducer with a free-field treble boost (4-5 dB at 12 kHz). Based on the technical design concept of the legendary Neumann M 50 microphone and its successor, the M 150, its ultra thin diaphragm is made of titanium and is spaced only a few microns from the backplate, also made of titanium. The KK 133 capsule attains an incredibly fast transient response with unprecedented accuracy. Its detachable sound diffraction sphere creates an earlier and gentler increase in sound pressure for mid to high frequencies. Directivity, thus, increases in the upper frequencies, as with a cardioid capsule, yet as a pressure transducer the KK 133's bass transmission is linear down to the lowest frequencies, with no proximity effect.

• Omnidirectional Diffuse Field

• Treble Boost 4- dB at 12kHz

• For KM D and KM A Output Stages

ACOUSTICAL OPERATING PRINCIPLE:

Pressure transducer

DIRECTIONAL PATTERN:

Omni diffuse-field equalized

FREQUENCY RANGE:

20 Hz...20 kHz

SENSITIVITY AT 1 KHZ, 0 DB GAIN, AND 94 DB SPL:

-40 dBFS

EQUIVALENT NOISE LEVEL, CCIR ¹:

28 dB

EQUIVALENT NOISE LEVEL, A-WEIGHTED ²:

15 dB-A

MAXIMUM SPL AT 0 DBFS (RE. 94 DB SPL):

134 dB SPL

MAXIMUM SPL WITH 18 DB PREATT. (RCS) (RE. 94 DB SPL):

152 dB SPL

SIGNAL-TO-NOISE RATIO, CCIR (RE. 94 DB SPL)³:

66 dB

SIGNAL-TO-NOISE RATIO, A-WEIGHTED (RE. 94 DB SPL):

79 dB

MATCHING CONNECTOR:

XLR 3 F

WEIGHT (OUTPUT STAGE):

70 g

WEIGHT (CAPSULE ONLY):

49 g

DIAMETER:

22 mm

LENGTH (CAPSULE ONLY):

38 mm

LENGTH (MICROPHONE):

128 mm

A/D CONVERSION:

Neumann process (patented), 28-bit internal word length

DIGITAL SIGNAL PROCESSING:

Fixed-point, variable internal word length 28 bits to 60 bits

SAMPLING RATES:

44.1/48/88.2/96/176.4/192 kHz

OUTPUT DATA FORMAT:

24 bits as per AES/EBU (AES 3)

LATENCY:

44.1/48 kHz: 41 samples

LATENCY:

88.2/96 kHz: 49 samples

LATENCY:

176.4/192 kHz: 99 samples

SYNCHRONIZATION:

Free-running (non-synchronous operation), frequency stability: ± 25 ppm

SYNCHRONIZATION:

Synchronous operation, pulling range: min. ± 100 ppm

SUPPLY VOLTAGE RANGE:

+7 V to +10.5 V

CURRENT CONSUMPTION:

max. 150 mA (DDP)

¹ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

² according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

³ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
