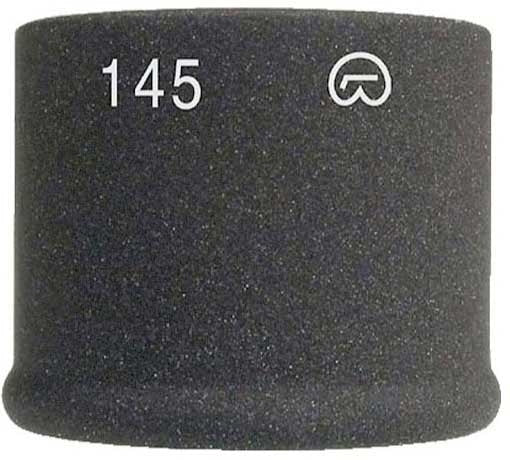

Neumann KK 145 NX

The KK 145 is a pressure gradient transducer with cardioid characteristic just like the KK 184. However, it has an acoustic bass roll-off in the free field and therefore suppresses LF interference (wind, structure-borne noise). Since proximity effect is a natural feature of pressure gradient microphones, the KK 145 is optimized for a flat frequency response at a recording distance of approximately 15 cm („speech cardioid").

• Nextel Black

• Wide Cardioid Pattern

ACOUSTICAL OPERATING PRINCIPLE:

Pressure gradient transducer

DIRECTIONAL PATTERN:

Cardioid low frequ. roll-off

FREQUENCY RANGE:

20 Hz...20 kHz

SENSITIVITY AT 1 KHZ INTO 1 KOHM:

14 mV/Pa

RATED IMPEDANCE:

50 ohms

RATED LOAD IMPEDANCE:

1000 ohms

EQUIVALENT NOISE LEVEL, CCIR¹:

22 dB

EQUIVALENT NOISE LEVEL, A-WEIGHTED²:

14 dB-A

MAXIMUM SPL FOR THD 0.5%³:

138 dB

MAXIMUM SPL FOR THD 0.5% WITH PREATTENUATION:

148 dB

SIGNAL-TO-NOISE RATIO, CCIR (RE. 94 DB SPL):

70 dB

SIGNAL-TO-NOISE RATIO, A-WEIGHTED (RE. 94 DB SPL):

80 dB

SUPPLY VOLTAGE (P48, IEC 61938):

48 V

CURRENT CONSUMPTION (P48, IEC 61938):

max. 3.5 mA

MATCHING CONNECTOR:

XLR 3 F

WEIGHT (OUTPUT STAGE):

70 g

WEIGHT (CAPSULE ONLY):

15 g

DIAMETER:

22 mm

LENGTH (CAPSULE ONLY):

18 mm

LENGTH (MICROPHONE):

108 mm

¹ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

² according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

³ measured as equivalent el. input signal
