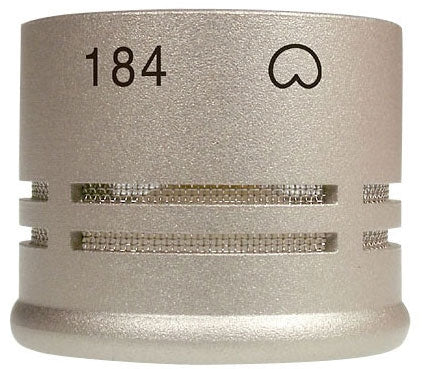

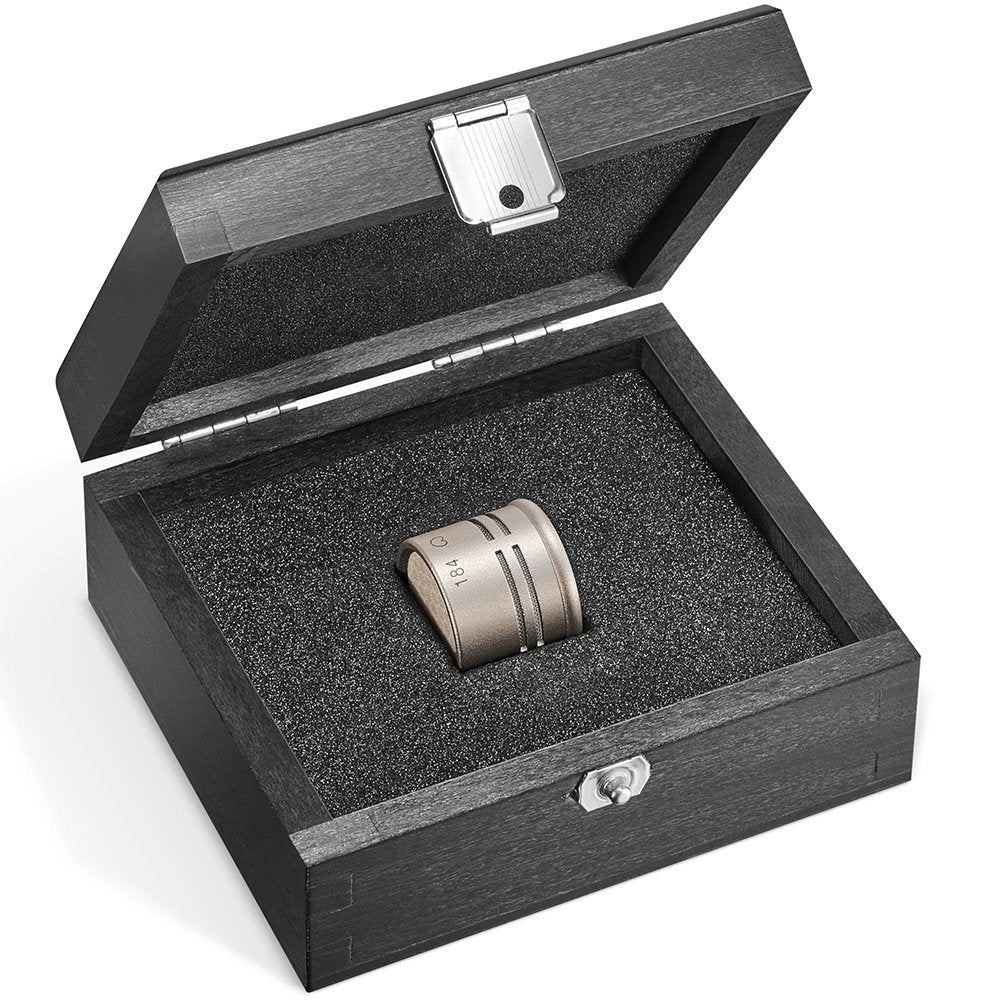

Neumann KK 184

The KK 184 is a pressure gradient transducer with cardioid characteristic. The frequency curves are very even and parallel to 0 sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle.

• Nickel

• Cardioid Polar Pattern

• User installable

• Non-reflective finish

ACOUSTICAL OPERATING PRINCIPLE:

Pressure gradient transducer

DIRECTIONAL PATTERN:

Cardioid

FREQUENCY RANGE:

20 Hz...20 kHz

SENSITIVITY AT 1 KHZ INTO 1 KOHM:

15 mV/Pa

RATED IMPEDANCE:

50 ohms

RATED LOAD IMPEDANCE:

1000 ohms

EQUIVALENT NOISE LEVEL, CCIR¹:

22 dB

EQUIVALENT NOISE LEVEL, A-WEIGHTED²:

13 dB-A

MAXIMUM SPL FOR THD 0.5%³:

138 dB

MAXIMUM SPL FOR THD 0.5% WITH PREATTENUATION:

148 dB

SIGNAL-TO-NOISE RATIO, CCIR (RE. 94 DB SPL):

70 dB

SIGNAL-TO-NOISE RATIO, A-WEIGHTED (RE. 94 DB SPL):

81 dB

SUPPLY VOLTAGE (P48, IEC 61938):

48 V

CURRENT CONSUMPTION (P48, IEC 61938):

max. 3.5 mA

MATCHING CONNECTOR:

XLR 3 F

WEIGHT (OUTPUT STAGE):

70 g

WEIGHT (CAPSULE ONLY):

15 g

DIAMETER:

22 mm

LENGTH (CAPSULE ONLY):

18 mm

LENGTH (MICROPHONE):

108 mm

¹ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

² according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

³ measured as equivalent el. input signal
