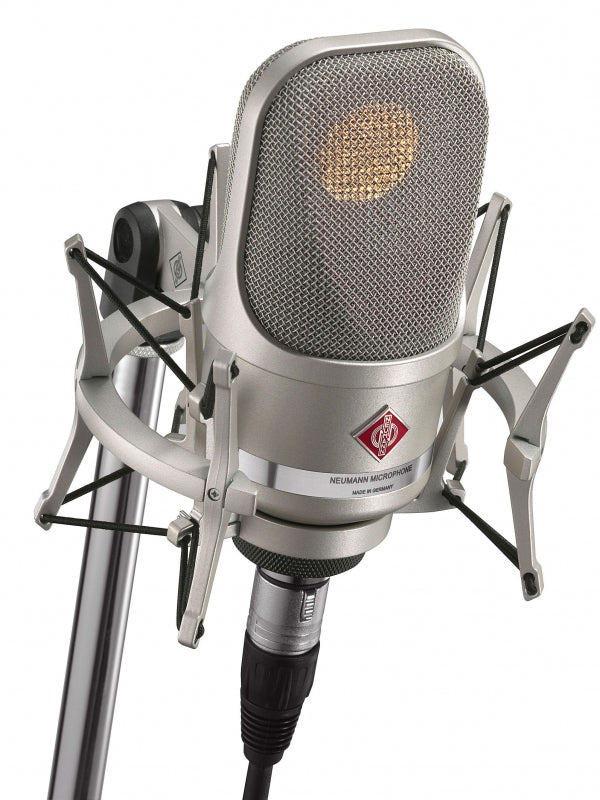

Neumann TLM 107 Studio Set

Featuring impressive level handling and low self-noise, it clearly captures everything from the softest whisper to loud, thundering drums. Its extensive performance spectrum and high-precision reproduction allows for limitless possibilities in mixing and post-production. With its classic proportions and fresh, modern design, it perfectly embodies the Neumann philosophy: innovation based on tradition.

The Neumann TLM 107 produces optimal sound not only in the cardioid setting, but in all of the other directional characteristics as well. The sound always remains balanced, with an almost linear reproduction of up to 8 kHz, and a slight boost in the highest frequencies that lends presence and freshness to the voice. The grille is acoustically optimized for low sensitivity to harsh "p" and "s" sounds. In addition, the capsule is edge-terminated, with both diaphragms at ground voltage. This ensures considerably reduced sensitivity to dust and humidity.

No-Compromise Sound Design Transformerless circuitry in the TLM 107 permits a high degree of linearity and a large dynamic range. It allows for high-level handling while simultaneously featuring a self-noise of only 10 dB-A. The low cut linear, 40 Hz, and 100 Hz settings are intended for standard recording situations. The maximum sound pressure level of 141 dB SPL can be increased to 153 dB SPL via pre-attenuation, which enables the TLM 107 to transmit the sound of even the loudest instruments without distortion.

Innovative Operating Concept All of the TLM 107's switch functions are controlled intuitively via a navigation switch. It features an illuminated pattern display in the chrome ring and an LED display to the left and right of the switch that indicates pad and low cut status. After ten seconds, the display automatically turns off.

• State of the art, yet affordable large diaphragm microphone

• Versatile studio workhorse for vocals and instruments

• Extremely flexible: 5 polar patterns, multiple pad and low cut options

• Transformerless circuitry for ultra-transparent sound

• Extremely low self-noise

• Distortion-free even at highest sound pressure levels

Acoustical operating principle: Pressure gradient transducer

Directional pattern: Omni, wide angle cardioid, cardioid, hypercardioid, figure-8

Frequency range: 20 Hz - 20 kHz

Sensitivity at 1 kHz into 1 kohms: 11 mV/Pa

Rated impedance: 50 ohms

Rated load impedance: 1000 ohms

Equivalent noise level, CCIR1): 22 dB

Equivalent noise level, A-weighted1): 10 dB-A

Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB

Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 84 dB

Maximum SPL for THD < 0.5%2): 141 dB

Maximum SPL for THD < 0.5%2) with pre-attenuation: -6 dB 147 dB

Maximum SPL for THD < 0.5%2) with pre-attenuation: -12 dB 153 dB

Maximum output voltage: 10 dBu

Supply voltage (P48, IEC 61938): 48 V ± 4 V

Current consumption (P48, IEC 61938): 3.2 mA

Matching connectors: XLR3F

Weight: 445 g

Diameter: 64 mm

Length: 145 mm

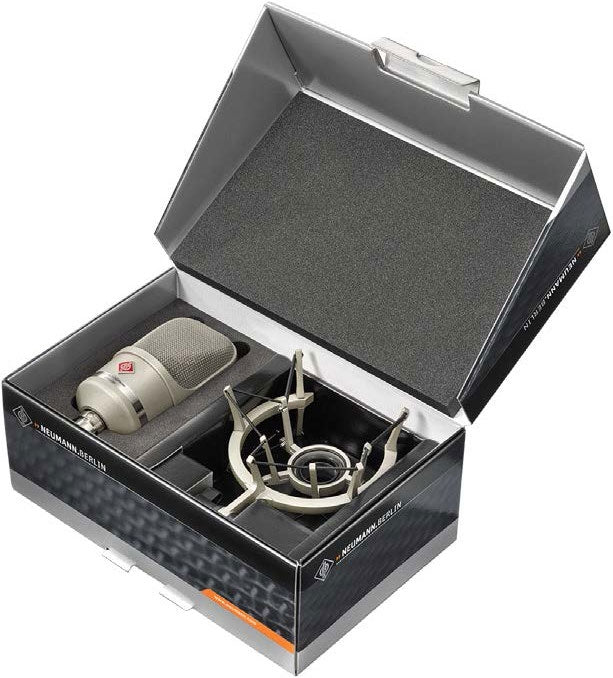

INCLUDES:

- TLM 107 Microphone

- EA 4 Elastic Suspension

- Box
