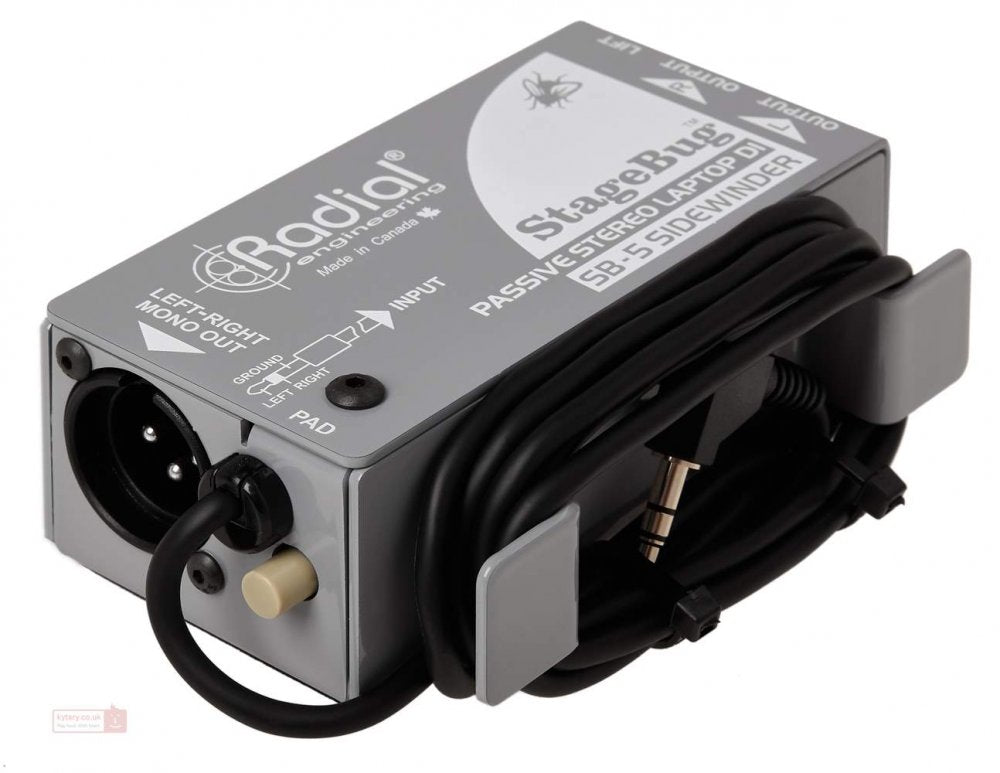

Radial Engineering StageBug SB-5 Sidewinder Laptop DI

The Radial Stage Bug SB-5 is a compact stereo direct box designed to accommodate laptop computers, tablets and other consumer audio products when amplifying the signal through a PA system.

The passive design begins with an integrated input cable that connects from the headphone out via a flexible 1.5m (5') cable that is terminated with a standard 3.5mm (1/8") stereo connector. The cable is secured via a clamping strain relief and is wrapped using the sidewinder cleat for easy storage. This of course eliminates having to locate a cable making it easier to deploy in fast paced work environments. Inside, the signal is sent to a pair of custom wound transformers where the impedance is lowered and the signal is balanced for long cable runs - upwards to 100 meters (300'). Transformers further benefit by isolating the computer from the PA system to help eliminate hum and buzz caused by ground loops. This is augmented with a ground lift switch to further reduce ground contamination.

A choice of output connectors is available including a stereo set of ¼" TRS jacks for full stereo operation or an XLR out that automatically sums the left-right program material to mono. This can save valuable channels on the PA system and makes setup easier in situations where full stereo reproduction is not required. A -15dB input pad may be engaged to reduce sensitivity and enable extra high output sources to be connected without distortion.

These features combine to make the SB-5 the perfect tool-kit DI for the AV technician, media manager or traveling musician equipped with a computer.

• Stereo direct box for laptop computer

• Integral 1.5m cable with sidewinder cleat

• Transformer isolation eliminates noise

• Plug & play easy to use - no power required

• Audio circuit type : Passive, transformer based

• Number of channels : Two channels, mono or stereo outputs

• Frequency response : 20Hz ~ 20KHz (± 1dB)

• Dynamic range : 100dB

• Maximum input : +20dB

• Total harmonic distortion : 0.01% @ 1kHz

• Phase deviation : 2 @ 100Hz; 5 @ 50Hz

• Input impedance : 40k Ohms, unbalanced

• Output impedance : 2.8k Ohms, balanced

Features

• Transformer : Custom design

• Input pad : -10dB

• Auto Merge : Sums left & right sources to mono at XLR

• Ground lift : Disconnects pin-1 at 1/4" TRS outputs

• XLR configuration : AES standard (pin-2 hot)

• Input connector : 3.5mm (1/8") integrated 1.5m (5') cable

• Output connectors : 1/4" TRS stereo / XLR-M mono merge

General

• Construction : 14 gauge steel chassis & outer shell

• Finish : Durable powder coat

• Size : (L x W x D) 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)

• Weight : 0.55 lbs (250 grams)

• Shipping size : (L x W x D) : 8" x 5" x 3" (203mm x 127mm x 76mm)

• Shipping weight : 0.8 lbs (365 grams)

• Power : Passive, no power required

• Conditions : For use in dry locations only between 5C and 40C
