Sennheiser E 600 Series Drum Kit

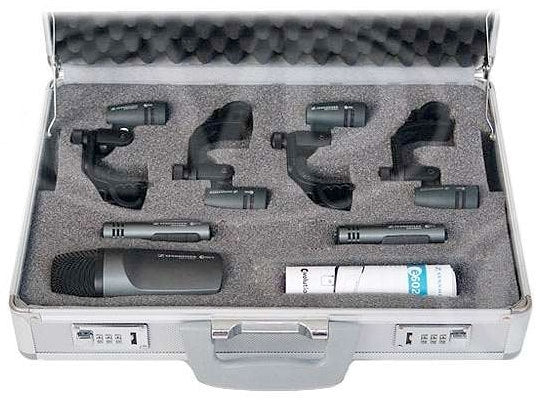

A cost effective drum micing solution for live sound and studio applications. All you need for a powerful drum performance in a heavy duty case for optimal protection.

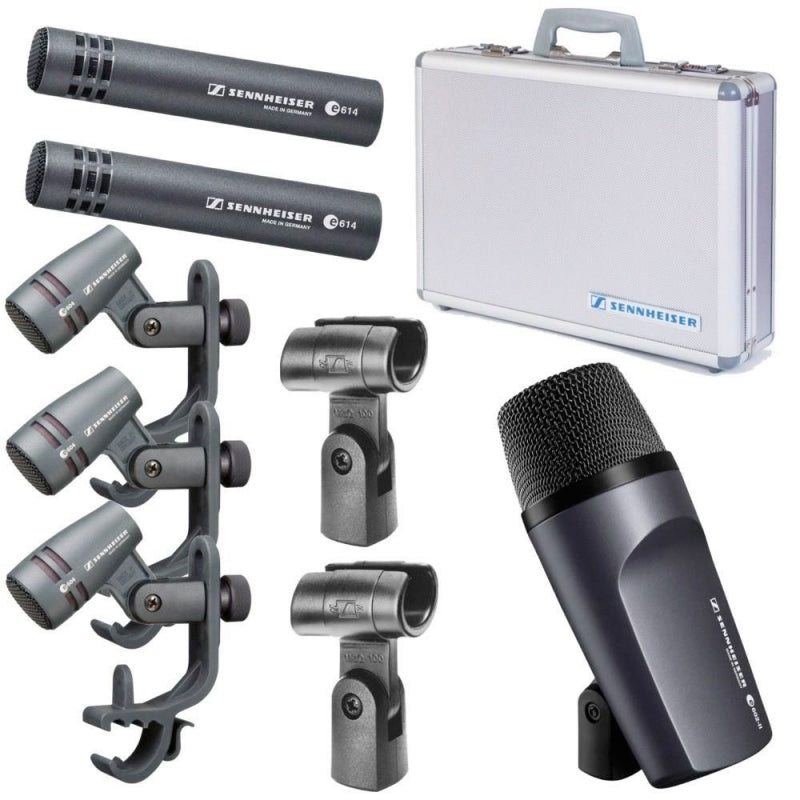

Includes 1x e 602-II, cardioid instrument microphone for bass drums, 4x e 604, cardioid microphone for snare and tom-tom, and 2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead.

E 614:

For demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording

E 604:

For toms, snares, and percussion, clips-on quickly and easily wherever you choose. Tough, reinforced housing, and clamp

602-II:

For bass drums, bass guitar cabs and tubas. Solid, lightweight, and easy to position. For studios, clubs, rehearsal rooms, smaller gigs, or for home recording.

E 614:

• Dimensions: Ø 20mm, L = 100mm

• Connector: XLR-3

• Frequency response: 40 - 20000 Hz

• Max. sound pressure level: 139 dB/SPL

• Transducer principle: pre-polarised condenser microphone

• Weight: 93 g

• Pick-up pattern: super-cardioid

• Sensitivity in free field, no load (1kHz): 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)

• Nominal impedance: 50

• Min. terminating impedance: 1000

• Phantom powering: 12 - 52 V / 3 mA

• Equivalent noise level: 24 dB(A)

• Equivalent noise level weighted as per CCIR 468-3: 35 dB

602 II:

• Dimensions: Ø 60 x 153 mm

• Connector: XLR-3

• Transducer principle (Microphone): dynamic

• Frequency response: 20 - 16000 Hz

• Weight: 318 g

• Pick-up pattern: cardioid

• Sensitivity in free field, no load (1kHz): 0,25 mV/Pa; (50 Hz) 0,9 mV/Pa

• Nominal impedance: 350

• Min. terminating impedance: 1000

E 604:

• Dimensions: Ø 33 x 59 mm

• Connector: XLR-3

• Frequency response (Microphone): 40 - 18000 Hz

• Transducer principle (Microphone): dynamic

• Weight: 60 g

• Pick-up pattern: cardioid

• Sensitivity in free field, no load (1kHz): 1,8 mV/Pa

• Nominal impedance: 350

• Min. terminating impedance: 1000

• Weight w/o cable: 60 g
