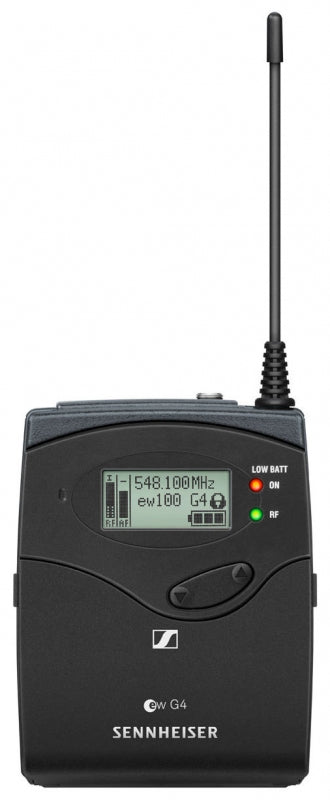

Sennheiser EK 100 G4 (A: 516-558 MHz)

For documentary, Mobile Journalism and audio for video applications.

Portable components always work easiest when you do not have to think about them. This was the basis on which the EK 100 G3 was developed. Its adaptive-diversity technology provides excellent reception at all times. This receiver is designed to securely attach to a camera's shoe using a clamp mount. The EK 100 G3 also can synchronize to a G3 transmitter with a simple push of a button. The EK100G3 is compatible with the optional DC 2 external adapter for extended use without batteries where a 12VDC source is available.

• Powerful camera receiver, easily mounted on any kind of camera

• Excellent sound and construction quality

• Easy to use and fast setup time

• Powerful and reliable wireless transmission

• Range: up to 100 meters / 330 feet

• Up to 8 hours of operation time

FREQUENCY RANGE:

A: 516-558 MHz

GENERAL:

DIMENSIONS:

Approx. 82 x 64 x 24 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT (INCL. BATTERIES):

approx. 160 g

AUDIO OUTPUT:

3.5 mm jack socket, +12 dBu (mono, unbalanced)

SIGNAL-TO-NOISE RATIO:

110 dBA

SWITCHING BANDWIDTH:

up to 42 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

OPERATING TIME:

Typically 8 h

MODULATION:

Wideband FM

POWER SUPPLY:

2 AA batteries, 1.5 V or BA 2015 accupack

CURRENT CONSUMPTION AT NOMINAL VOLTAGE:

typ. 180 mA

WITH RECEIVER SWITCHED OFF:

25 µA

ADJACENT CHANNEL REJECTION:

65 dB

INTERMODULATION:

attenuation 65 dB

POWERING:

3 V battery / 2.4 V rechargeable battery

RECEIVING FREQUENCY:

Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF SENSITIVITY:
