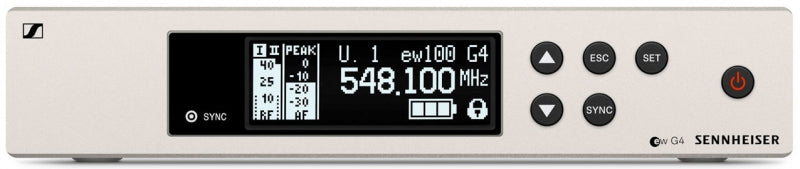

Sennheiser EM 100 G4 (A: 516-558 MHz)

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

FREQUENCY RANGE:

A: 516-558 MHz

DIMENSIONS:

Approx. 190 x 212 x 43 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT:

Approx. 980 g

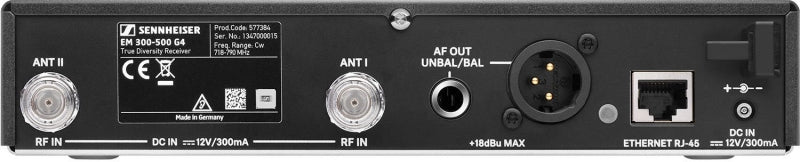

AUDIO OUTPUT:

• 6.3 mm jack socket (unbalanced): +12 dBu

• XLR socket (balanced): +18 dBu

SIGNAL-TO-NOISE RATIO:

110 dBA

SWITCHING BANDWIDTH:

up to 42 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

MODULATION:

Wideband FM

POWER SUPPLY:

12 V DC

ANTENNA CONNECTOR:

2 BNC sockets

CURRENT CONSUMPTION:

300 mA

ADJACENT CHANNEL REJECTION:

Typically 65 dB

INTERMODULATION ATTENUATION:

Typically 65 dB

RECEIVING FREQUENCY:

• Max. 1680 receiving frequencies

• Adjustable in 25 kHz steps 20 frequency banks

• Each with up to 12 factory-preset channels

• No intermodulation 1 frequency bank with up to 12 programmable channels

RF SENSITIVITY:

:
