Sennheiser EM 300-500 G4 (Aw+: 470-558 MHz)

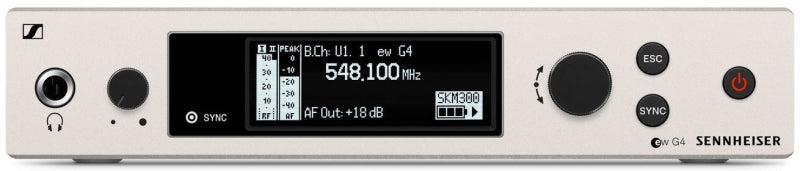

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display

• Easy to use, fast setup time

• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software

• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment

• Up to 88 MHz bandwidth, up to 32 channels

• Increased RF output power (10/30/50 mW)

• Transmission Range: up to 100 meters / 330 feet

• Compatible with wireless speaker system LSP 500 PRO

• RC (remote control) switch available for the bodypack transmitter

FREQUENCY RANGE:

Aw+: 470-558 MHz

DIMENSIONS:

Approx. 202 x 212 x 43 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT:

Approx. 980 g

AUDIO OUTPUT:

6.3 mm jack socket (unbalanced): +12 dBu

XLR SOCKET:

(balanced): +18 dBu

SIGNAL-TO-NOISE RATIO:

115 dBA

SWITCHING BANDWIDTH:

up to 88 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

MODULATION:

Wideband FM

POWER SUPPLY:

12 V DC

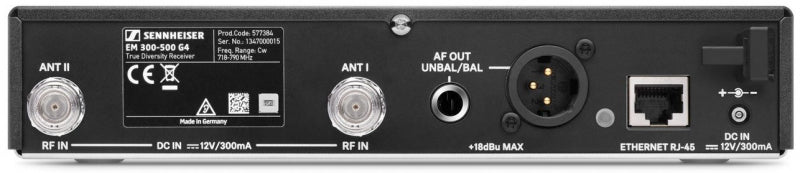

ANTENNA CONNECTOR:

2 BNC sockets

CURRENT CONSUMPTION:

350 mA

ADJACENT CHANNEL REJECTION:

Typically 75 dB

INTERMODULATION ATTENUATION:

Typically 70 dB

RECEIVING FREQUENCY:

• Max. 3520 receiving frequencies

• adjustable in 25 kHz steps

• 20 frequency banks

• each with up to 32 factory-preset channels

• no intermodulation

• 6 frequency banks with up to 32 programmable channels

RF SENSITIVITY:
